LFX-NEON-3DB

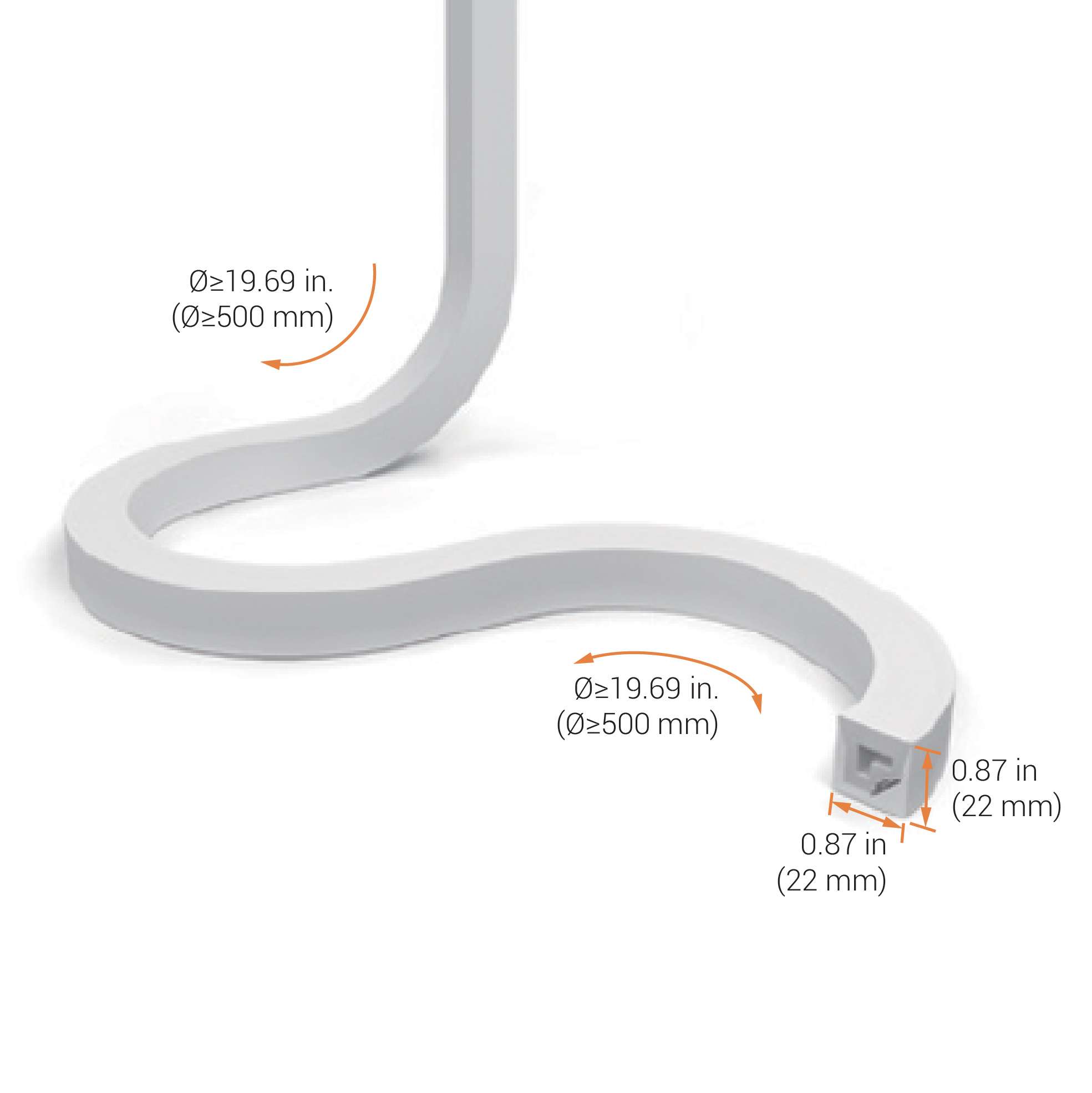

PIXL LFX Neon series is designed to provide a very bright, crisp consistent and homogenized illumination that will accentuate any building, structure, or artistic flourish. Using high brightness surface mounted LEDs, behind a first-class eco-friendly UV-resistant Silicone polymer encapsulated flexible chamber material, the LFX Neon will provide your project with bright, consistent traces of light in shades of White, single colors. The fixture consists of uniform and even lighting with no LED hotspot. LFX Neon has a transverse minimum radius of 40mm and is horizontal bendable. Easy to install, can be cut and reconnected with an IP68-protected connector. The product is supplied in 5m standard rolls or custom as needed.

Rated Power

8.5 W/m

Led Color

1800K, 2100K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K

Cri

>90

Beam Angle

120°

Ip Rating

IP67

Mounting

Surface Mount / Recessed

Dimensions

22 mm (W) x 22 mm (H) / 0.87in(W) x 0.87 in (H)

Body Finish

White

Supply Voltage

24V DC

Connection

Outdoor rated connections

Driver / Power Supply Details

Switched 0-10V DALI

Dimming

Switched, 0-10V, DALI

Ik Rating

IK10

Lamp Life

50,000 Hrs

Light Source

SMD LED 2835

Body Material

Silicone

Max Daisy Run

16.4 ft (5 m)

Binning Tolerance

One Bin

Cutting Increments

50 mm (2 in.)
