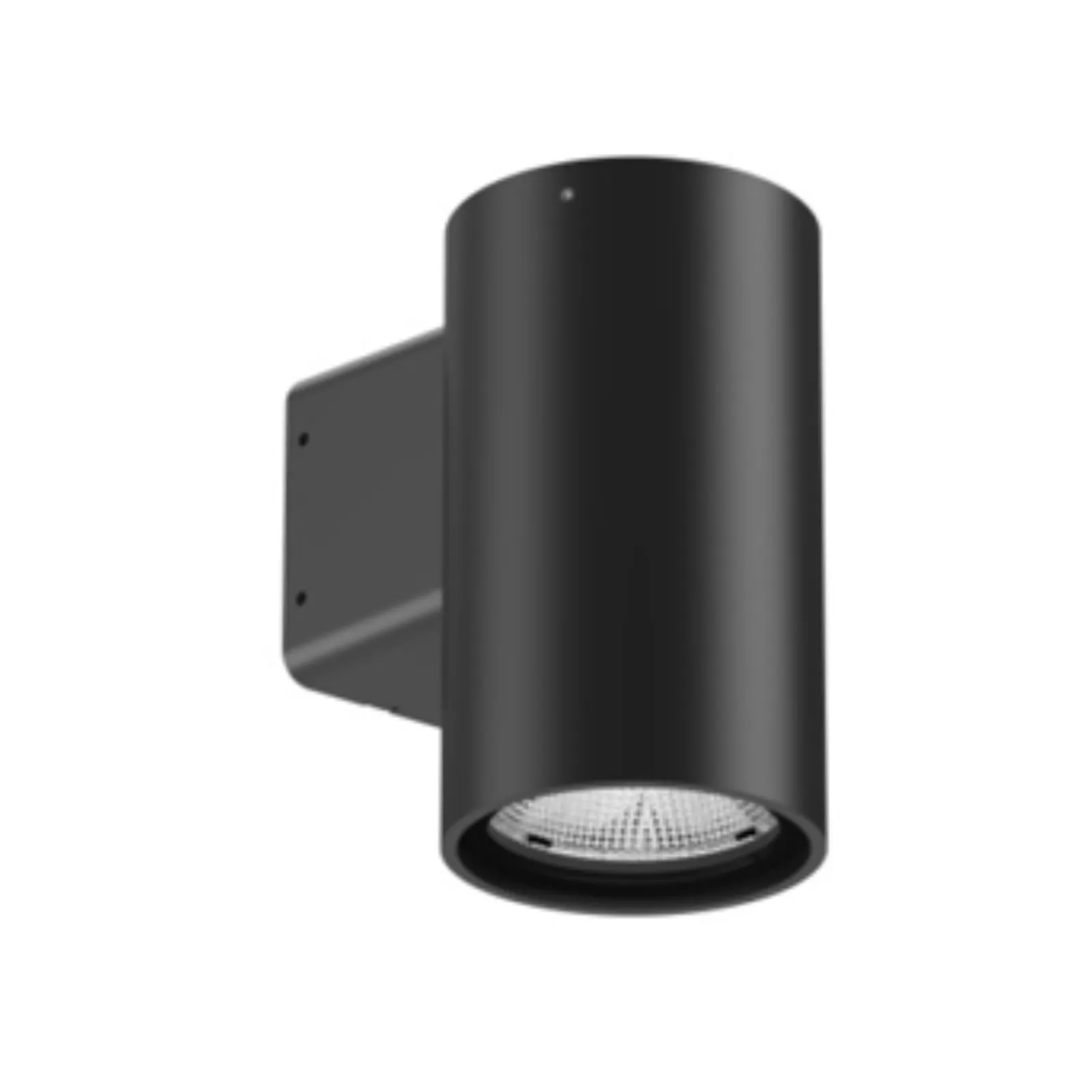

LMO 5

PIXL Limo series are designed for wall mounted application with beam up/down or one sided, Constructed in die-cast aluminium, with rugged IP65 rating makes it suited for indoor/outdoor rated applications. Options of beam angles to suit the application area.

Rated Power

2x9W, 2x12W

Delivered Lumen

1200 lm @ 2x9W 1600lm @ 2x12W

Led Color

3000/4000/6000K

Cri

80

Beam Angle

12°,15°,24°,36°,60°

Ip Rating

IP65

Mounting

SURFACE MOUNTED

Dimensions

Ø115 x 163.5 x 220 mm (Ø4.53 x 6.48 x 8.66 in.)

Body Finish

BLACK

Supply Voltage

100-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI TRIAC 1-10V

Dimming

Switched (on/off), DALI, TRIAC, 1-10V

Lamp Life

50,000 Hrs

Light Source

CITIZEN

Body Material

DIE-CAST ALUMINUM
