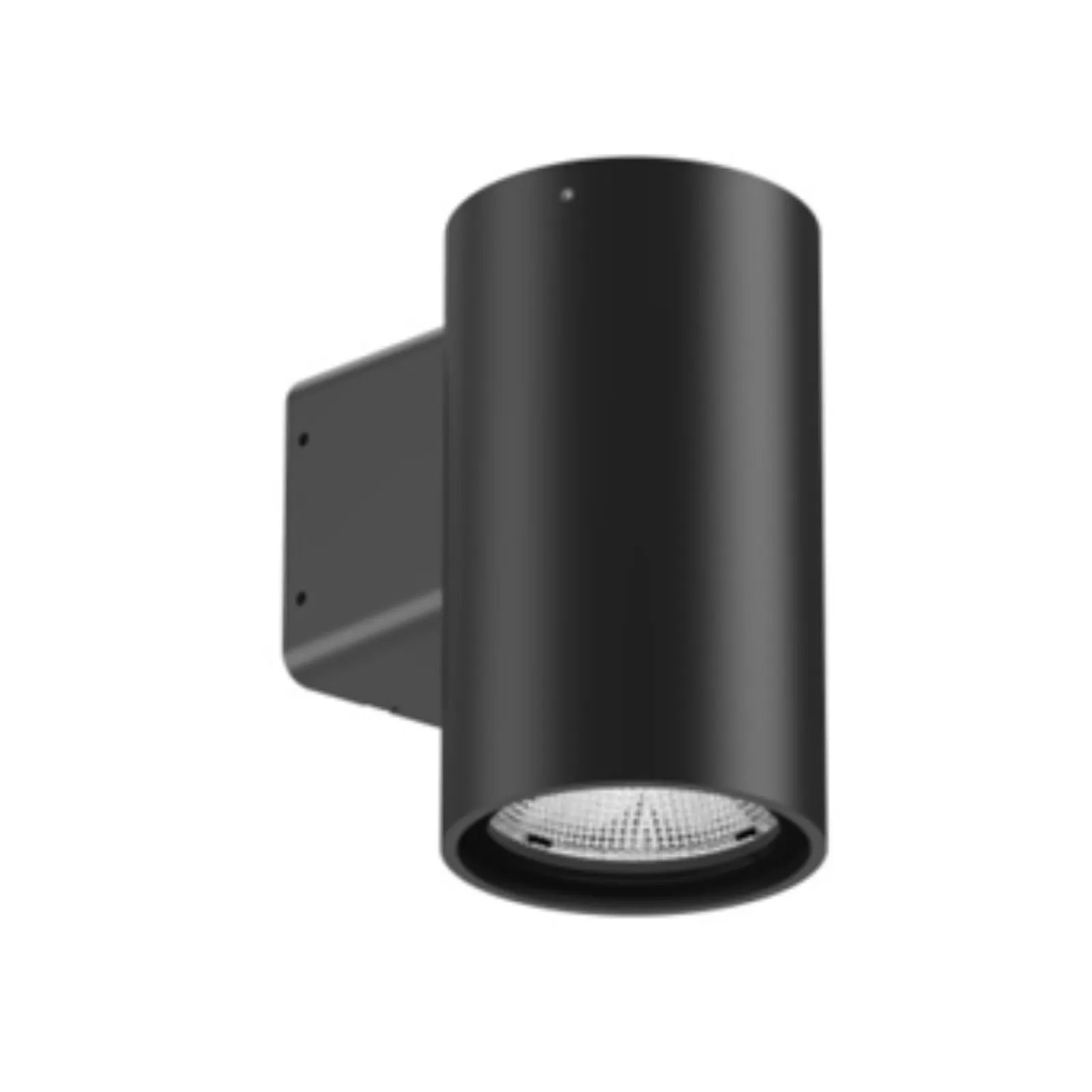

LMO8

PIXL Limo series are designed for wall mounted application with beam up/down or one sided, Constructed in die-cast aluminium, with rugged IP65 rating makes it suited for indoor/outdoor rated applications. Options of beam angles to suit the application area.

Rated Power

8W / 10W / 12W / 15W

Delivered Lumen

85-95 lm/W

Led Color

2700/3000/4000/5000/6500K

Cri

90

Beam Angle

15°/24°/38°/60°

Ip Rating

IP66

Mounting

SURFACE MOUNTED

Dimensions

Ø86x150mm

Body Finish

BLACK,WHITE

Supply Voltage

240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; TRIAC; 0-10V; DALI

Lamp Life

50,000 Hrs

Light Source

CREE/BRIDGELUX/CITILED

Body Material

DIE-CAST ALUMINUM
