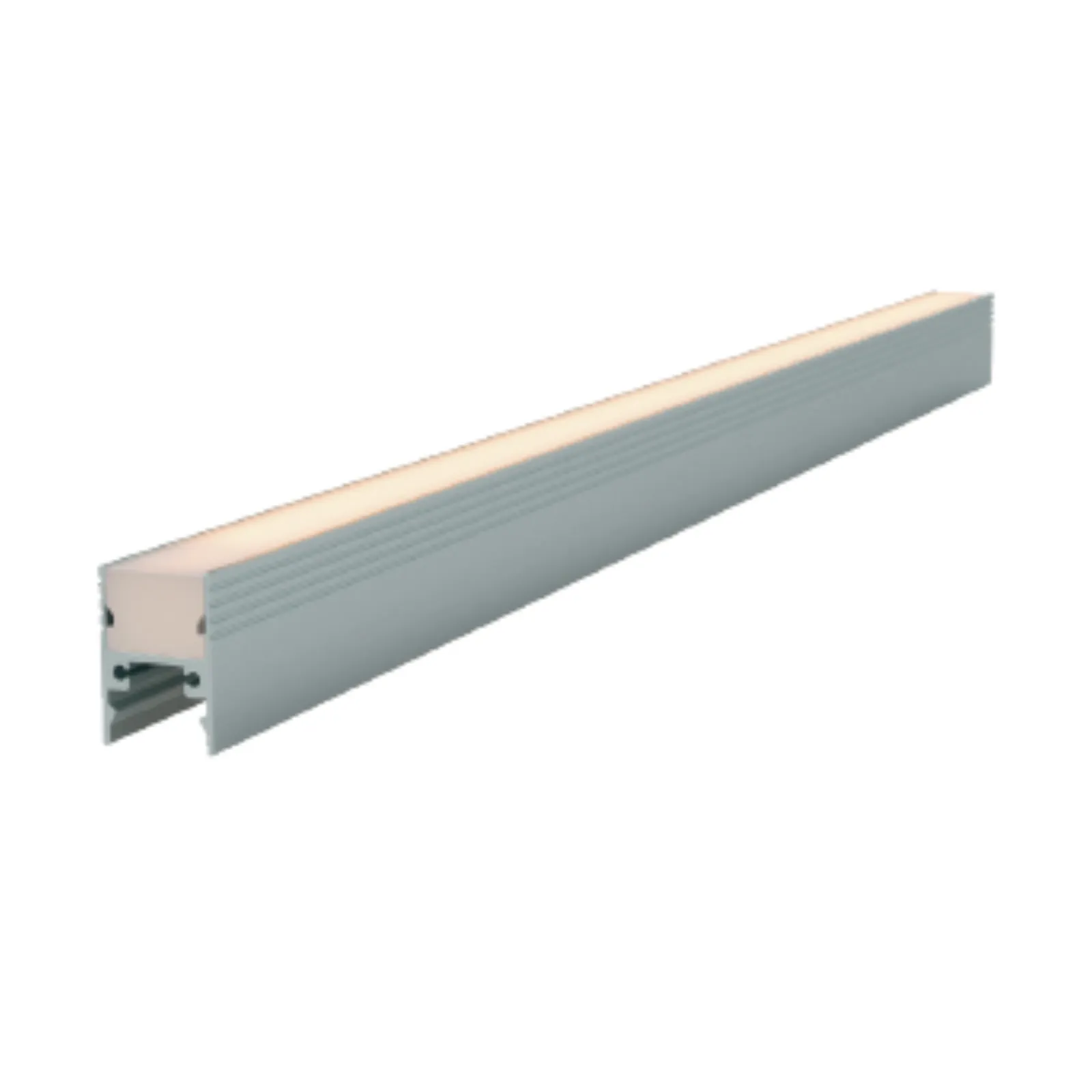

LFD-12

The LFD series linear LED light fixtures are a simple, yet elegant solution for slick wall washing applications where a diused single color light is desired along a floor, wall or ceiling. The LFD series in particular has the mounting bracket hidden behind the fixture to give it a clean, look unobtrusive.

Rated Power

12W/mtr

Delivered Lumen

520 lm/mtr (2700K) 602 lm/mtr (3000K) 665 lm/mtr (4000K) 662 lm/mtr (6500K) 150 lm/mtr (BLUE) 668 lm/mtr (GREEN)

Led Color

2700/3000/4000/6500K/BLUE/GREEN

Cri

90

Ip Rating

IP67

Mounting

CEILING RECESSED, SURFACE MOUNTED, FLOOR RECESSED

Dimensions

20.4mm x H29.5mm

Body Finish

WHITE

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Ik Rating

IK10

Lamp Life

50,000 Hrs

Led Quantity

400LEDs / Sheet

Light Source

COB strip

Max Daisy Run

16.4 ft (5mtr)
