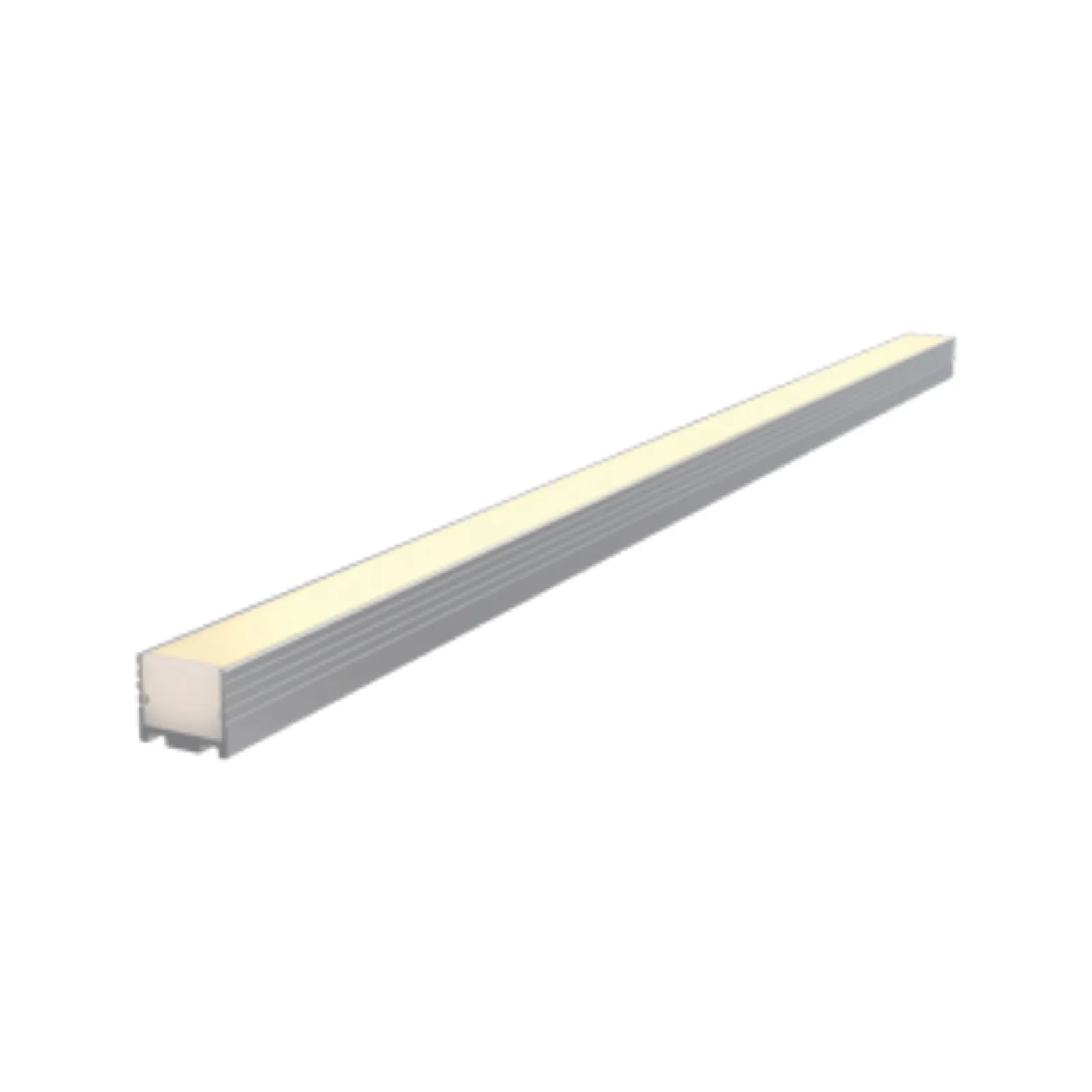

LFD-S-15

The LFD series linear LED light fixtures are a simple, yet elegant solution for slick wall washing applications where a diffused single color light is desired along a floor, wall or ceiling. The LFD series in particular has the mounting option hidden behind the fixture to give it a clean, look unobtrusive.

Rated Power

15W/mtr

Delivered Lumen

650lm/m (2700K) 752lm/m (3000K) 830lm/m (4000K) 827lm/m (6500K) 187lm/m (BLUE) 835lm/m (GREEN)

Led Color

2700/3000/4000/6500K/BLUE/GREEN

Cri

90

Ip Rating

IP67

Mounting

DIRECT MOUNT, MOUNTING CLIP

Dimensions

20.4mm x H17.5mm

Body Finish

WHITE

Supply Voltage

24V DC

Connection

IP RATED CONNECTOR

Notes

MAXIMUM DISTANCE : 16.4ft (5 m) AVAILABLE LENGTH : 510 mm / 20 in; 1010 mm / 40 in; Custom

Lamp Life

50,000 Hrs

Led Quantity

400LED/m

Light Source

COB strip
