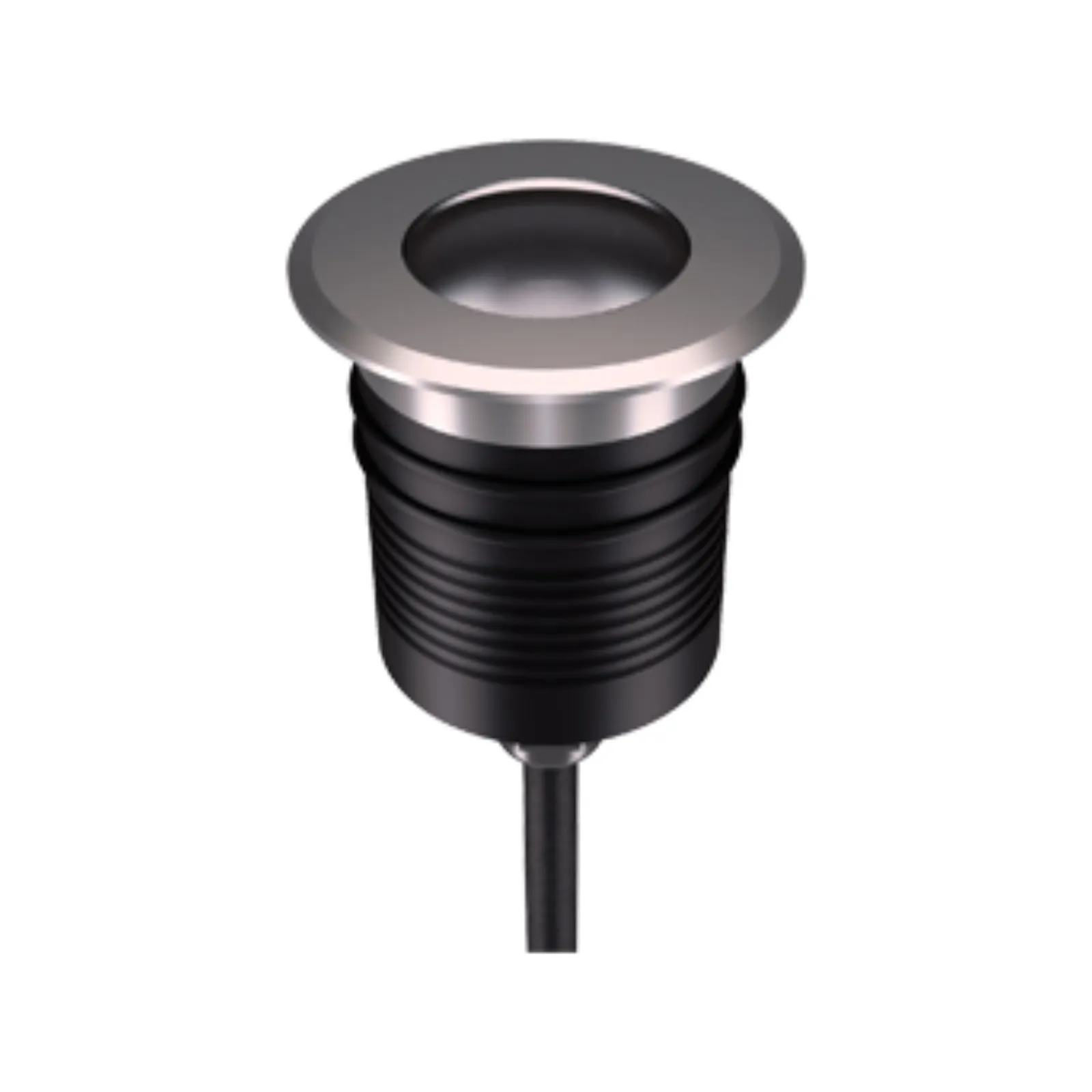

MM-52

Mini Marker lights the way with high CRI, even in the most harsh conditions. Manufactured with 316L stainless steel and a borosilicate glass lens, this in-ground/in-wall luminaire is immune to corrosion caused by salt, oxidization, and traffic. With several beam options and CCT’s to choose from, it is easy to find the right coverage for ambiance and safety.

Rated Power

3W (CV) /3W (CC)

Delivered Lumen

166lm (8° beam) 174lm (25° beam) 156lm (32° beam)

Led Color

2200/2700/3000/3500/4000/5000K

Cri

>90

Beam Angle

8°, 25°, 32°

Ip Rating

IP67

Mounting

FLOOR RECESSED

Dimensions

Dia. 52 x 69 mm

Body Finish

Stainless steel

Supply Voltage

24 VDC (CV) / 850 mA (CC)

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

On-Off 1-10V DALI

Lamp Life

50,000 Hrs

Light Source

SAMSUNG

Body Material

316L Stainless Steel (top cover) / Aluminum (main body)
