MTC

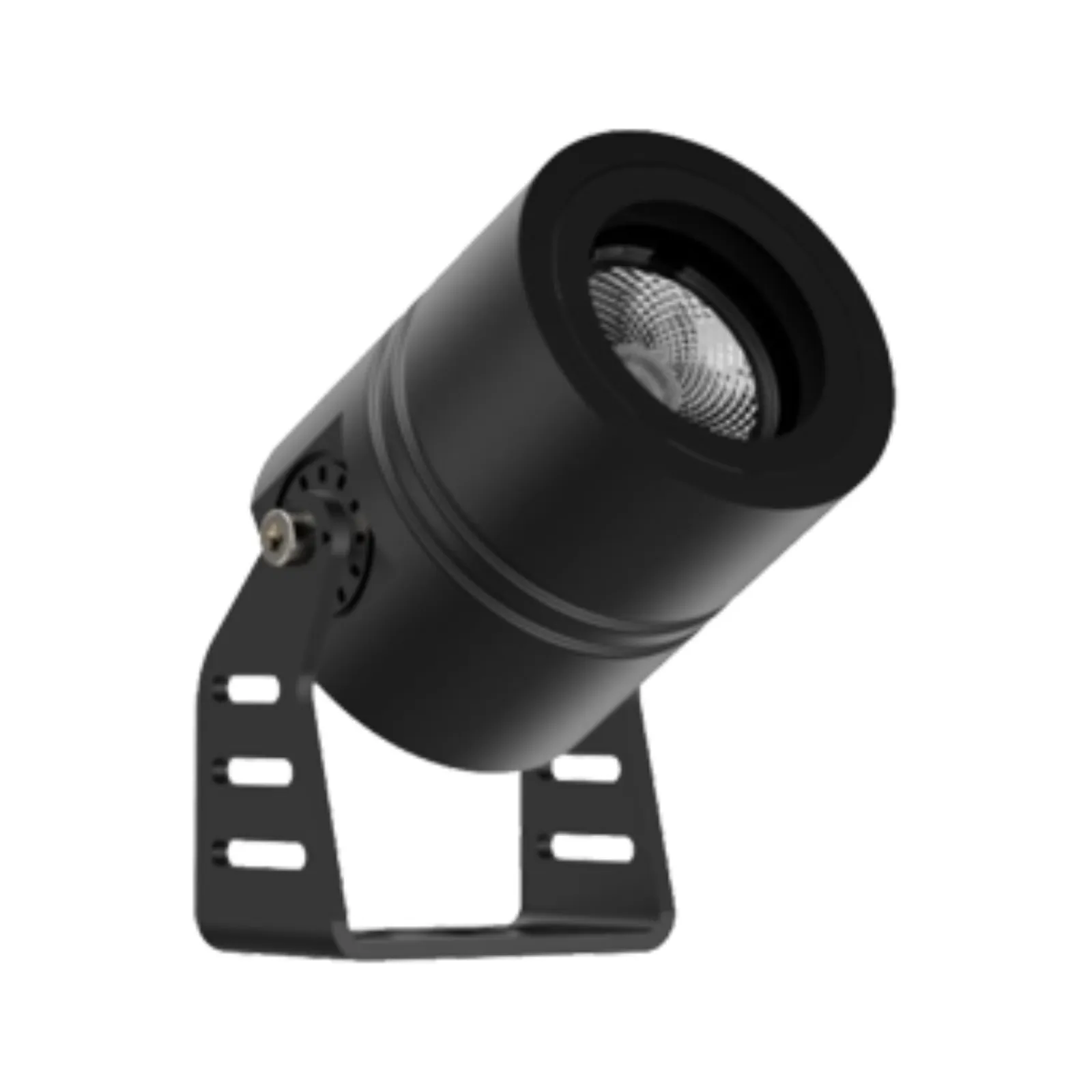

PIXL Mystic series is a type of miniature fixture made in cast aluminum which is ideal for façade and landscape applications, where size of the fixture installed plays a critical role. These luminaires are designed to offer functional, a wide range of lighting solutions and dramatic highlighting of the architectural facades, landscapes, trees through the superior finishing as well highest efficiency with a long service life. This product provide uniform, soft enhancing special lighting effect that blends into the space being lit, to maximizes light beauty.

Rated Power

3W

Led Color

RGBW

Cri

90

Beam Angle

25°/40°/60°

Ip Rating

IP66

Mounting

GROUND MOUNT (SPIKE)

Dimensions

Ø42 x 65 mm

Body Finish

MATT SILVER, BLACK ANODIZED

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DMX512

Notes

CABLE : 0.5 Mtr H05RN-F2x1.0mm²

Dimming

DMX512

Lamp Life

50,000 Hrs

Led Quantity

1 LED

Light Source

TYANSHINE

Body Material

ALUMINUM
