MTC

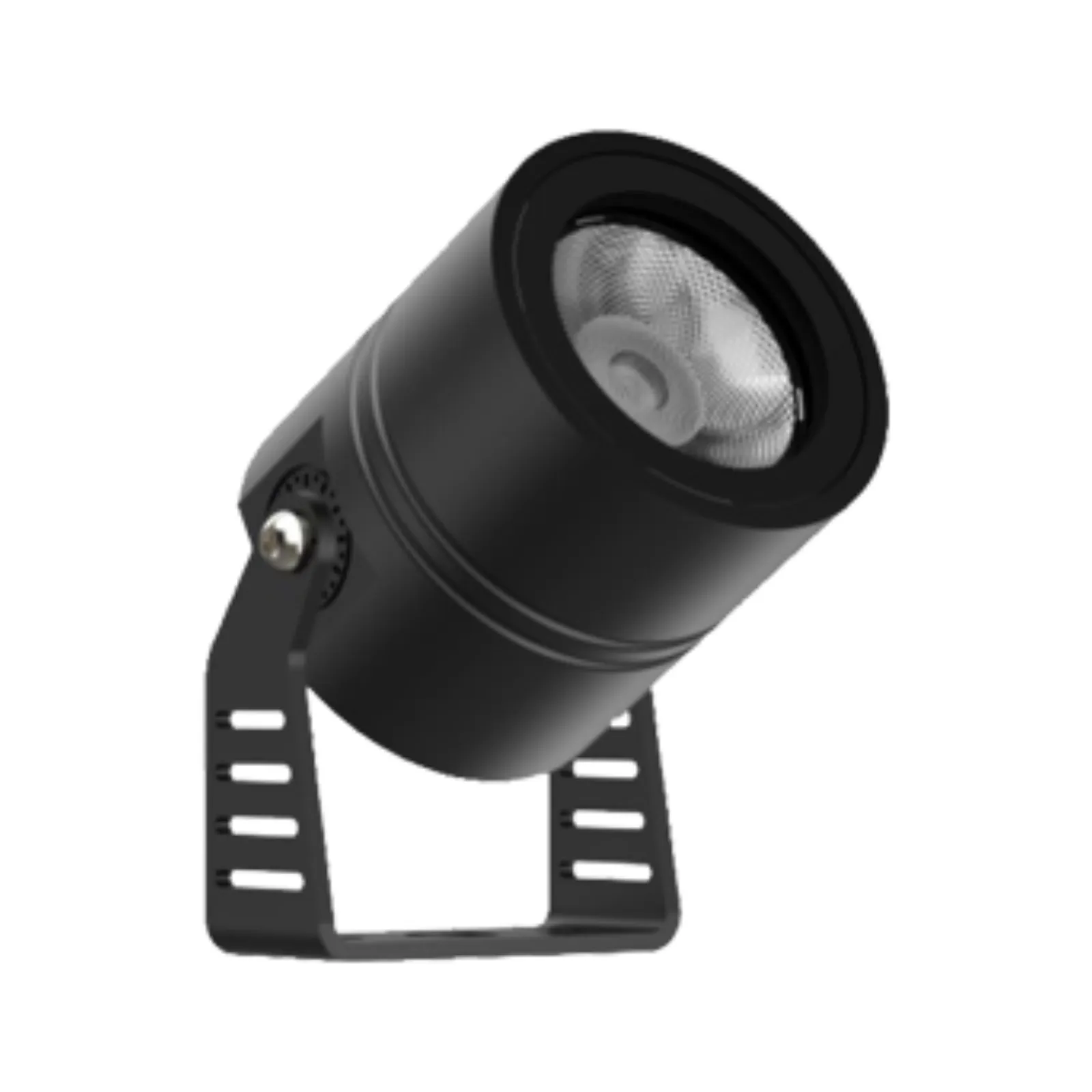

PIXL Mystic series is a type of miniature fixture made in cast aluminum which is ideal for façade and landscape applications, where size of the fixture installed plays a critical role. These luminaires are designed to offer functional, a wide range of lighting solutions and dramatic highlighting of the architectural facades, landscapes, trees through the superior finishing as well highest efficiency with a long service life. This product provide uniform, soft enhancing special lighting effect that blends into the space being lit, to maximizes light beauty.

Rated Power

7 / 10W

Led Color

3000/4000/5000/5700K

Cri

90

Beam Angle

5°/8°/10°/12°/17°/25°/40°/60°

Ip Rating

IP66

Mounting

GROUND MOUNT (SPIKE)

Dimensions

Ø69 x 74 mm

Body Finish

MATT SILVER, BLACK ANODIZED

Supply Voltage

220V AC, 24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DALI 0-10V TRIAC

Notes

CABLE : 0.5 Mtr H05RN-F2x1.0mm²

Lamp Life

50,000 Hrs

Led Quantity

3 LED

Light Source

CREE / OSRAM

Body Material

ALUMINUM
