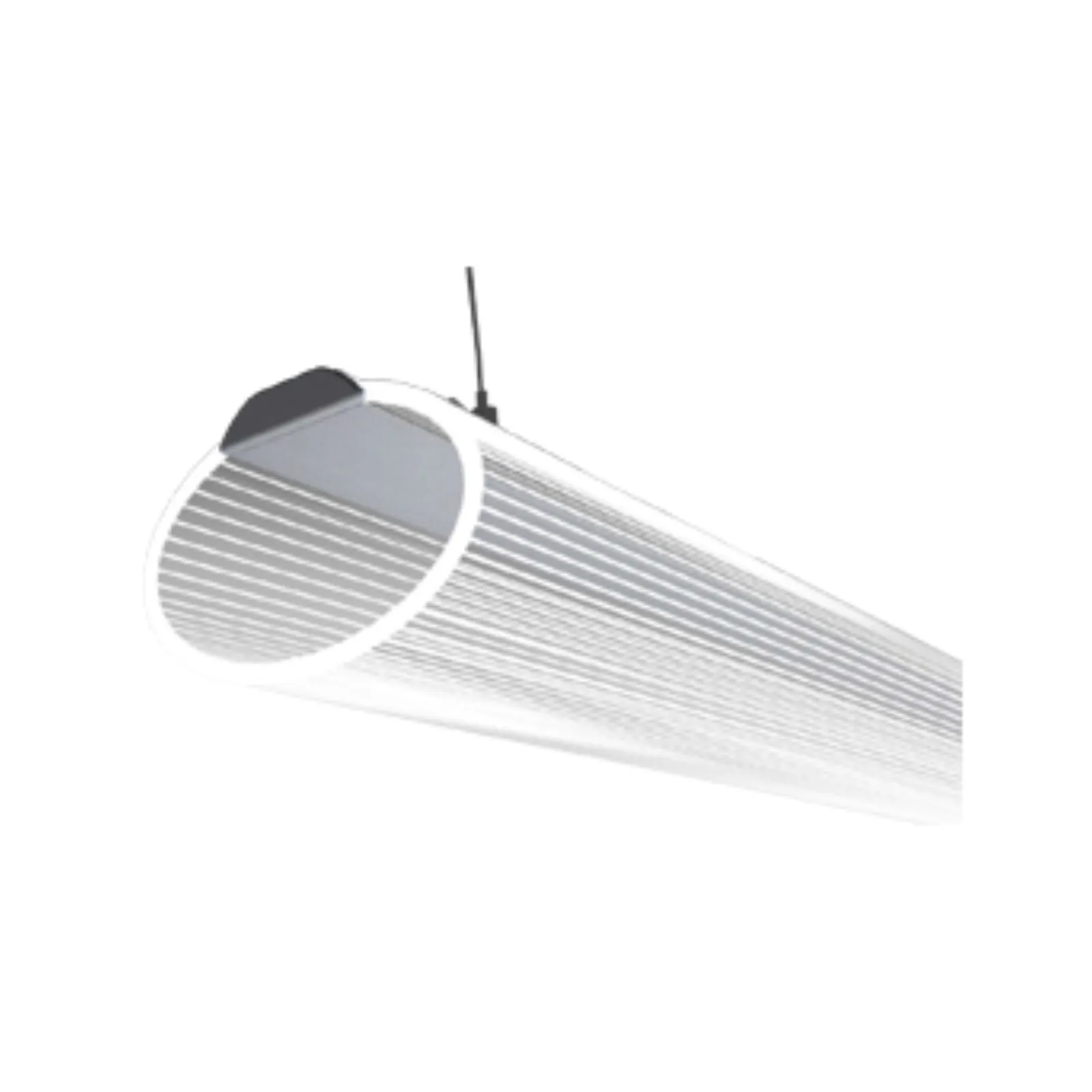

NURA ELLIPSE

Suspended Direct / Indirect architectural continuos / Individual luminaire with Light Guide LED technology. Wall sconce option to complement the pendants. Adequate choice in Control, Sensor &, RAL finish. Housing in 100% recyclable extruded architectural grade T6061 aluminium with 2mm thickness. Backed with excellent Thermal management to ensure L80>50,000 hours at an working ambient from -20°C to 50°C

Rated Power

40 W/M

Delivered Lumen

MED Output - 40 W/M - 2953 LM/W

Led Color

2700/3000/3500/4000/5000/6500 K

Cri

80/90

Ip Rating

IP20

Mounting

Suspended/Wall Mount

Dimensions

120 X 85 mm

Body Finish

Aluminium, White, Black, Metalic Bronze , custom RAL powder coat

Supply Voltage

24V DC

Driver / Power Supply Details

ON/OFF 0/1 - 10 V DALI DMX PHASE

Dimming

0/1 - 10 V, DALI, DMX, PHASE

Options

EMERGENCY _ EM - Integral; 3-hour emergency battery; manual testing SENSOR _ PRES - Integral; PIR presence detector DALI/PRES - Integral; DALI-compatible PIR presence detector PHOTO - Integral; photocell/daylight detector SUSPENSION MOUNTING CANOPY OPTIONS (STD/SMALL/COMBO) _ Standard (STD) comprises separate 115 mm powerfeed canopy and cable bullet at powerfeed locations. SMALL c omprises separate 85 mm powerfeed canopy and cable bullet at powerfeed locations. COMBO comprises combined 115mm canopy (canopy and cable bullet) at powerfeed locations. All options include cable bullets for non-powerfeed locations.

Lamp Life

50,000 hrs

Light Source

OSRAM

Body Material

100% RECYCLABLE, EXTRUDED ARCHITECTURAL GRADE T6061 ALUMINIUM
