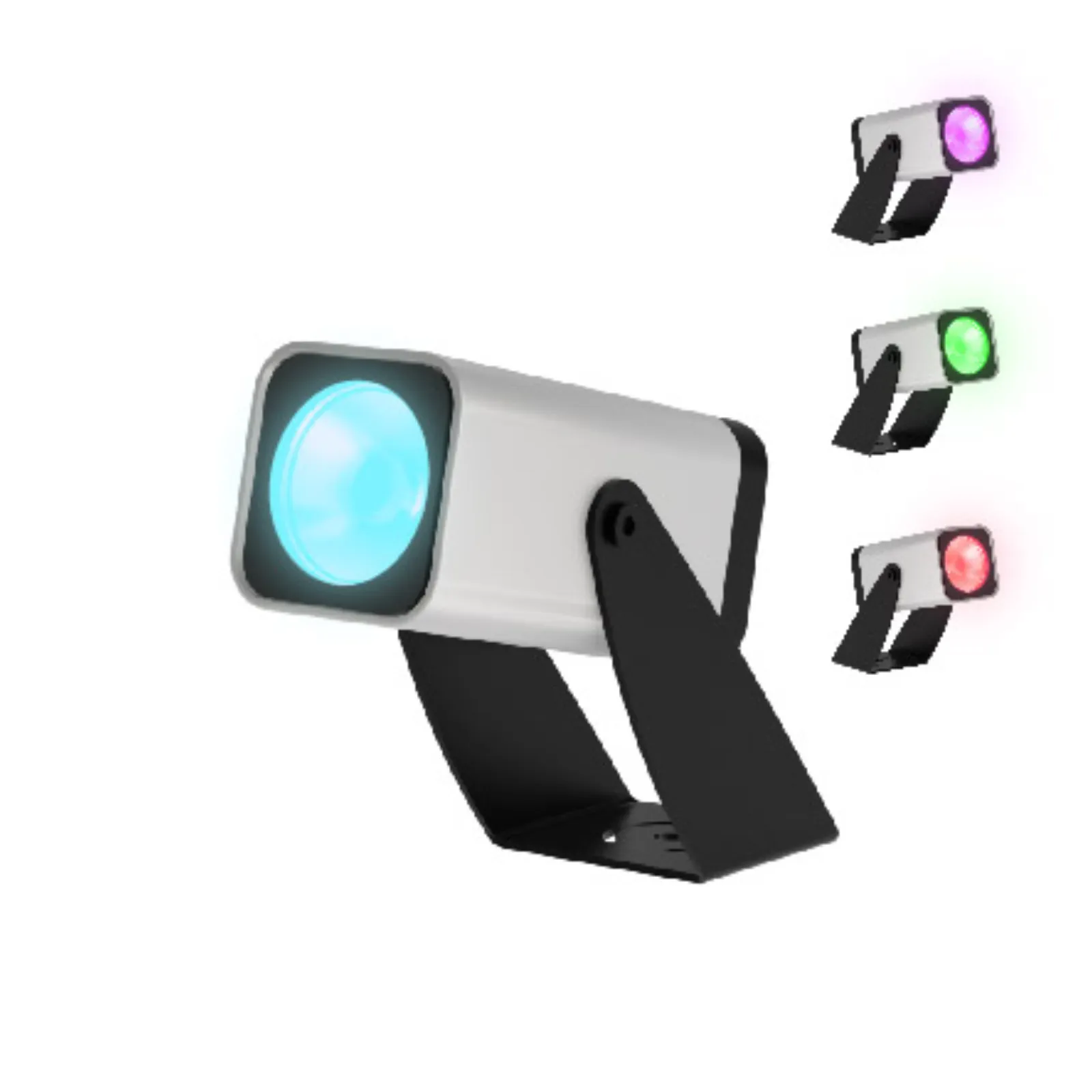

OAK-Q-M-RGBW

The newest addition to the Oaken series, this RGBW spotlight is designed to highlight outdoor spaces while creating versatile moods in any environment. Featuring four optical configurations ranging from 15° to 45°, it offers the flexibility to adapt to various lighting needs. This luminaire is engineered to withstand extreme outdoor conditions, delivering reliable and consistent performance in all weather. Ideal for retail displays, art galleries, and hospitality settings where impactful, adaptable lighting is essential.

Rated Power

15W

Delivered Lumen

315 lm (All On) 131.7 lm (White 3000K) 71.6 lm (Red) 122.4 lm (Green) 31.57 lm (Blue) @15 Degree

Led Color

RGBW

Cri

80, 90*

Beam Angle

15°/20°/30°/45°

Ip Rating

IP66

Mounting

SURFACE MOUNT

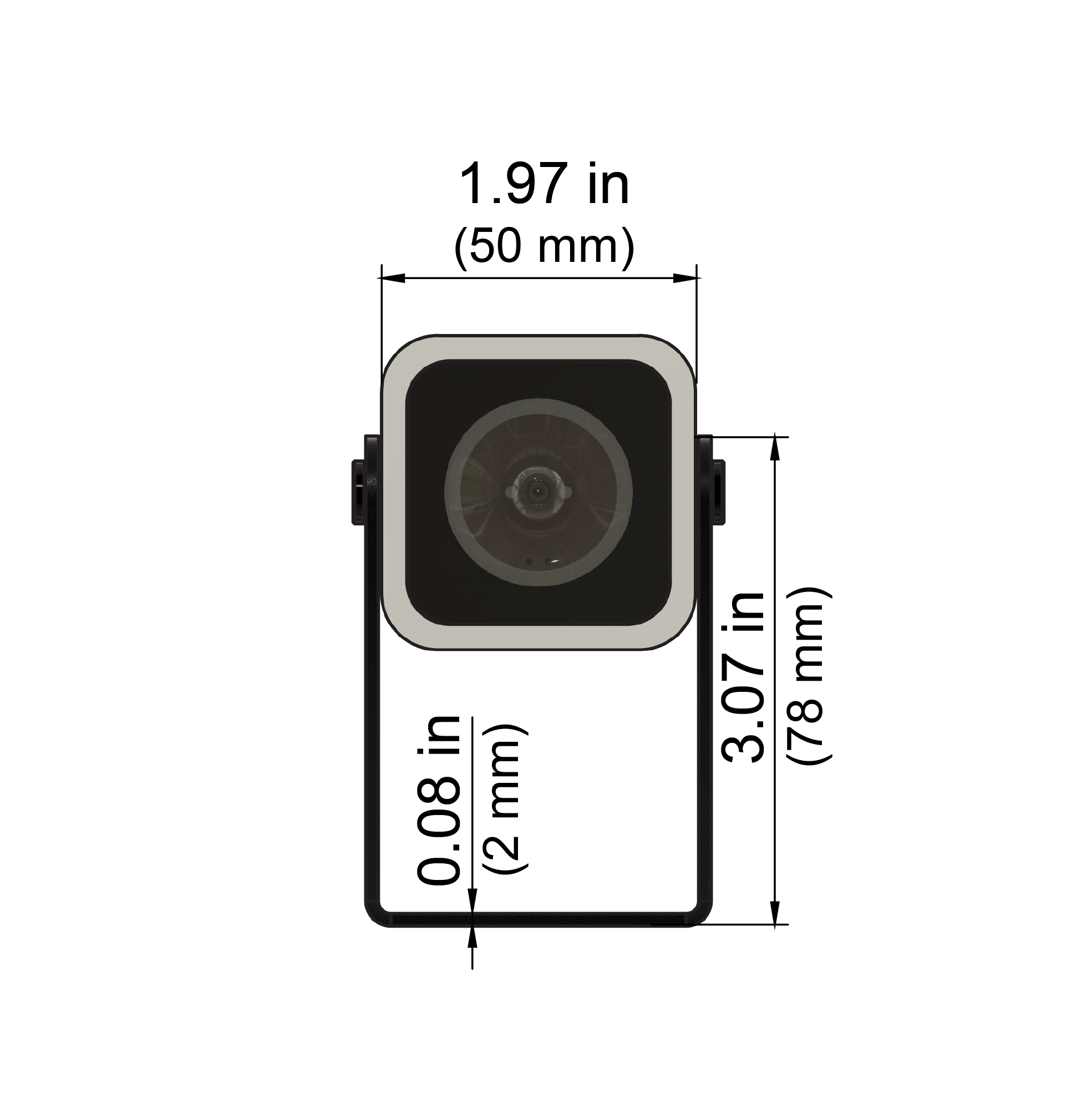

Dimensions

D:58mm x L:115mm x H:97mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DMX

Notes

FIXTURE CONNECTION : PIGTAIL

Led Quantity

1 LED

Light Source

CREE

Body Material

ALUMINUM
