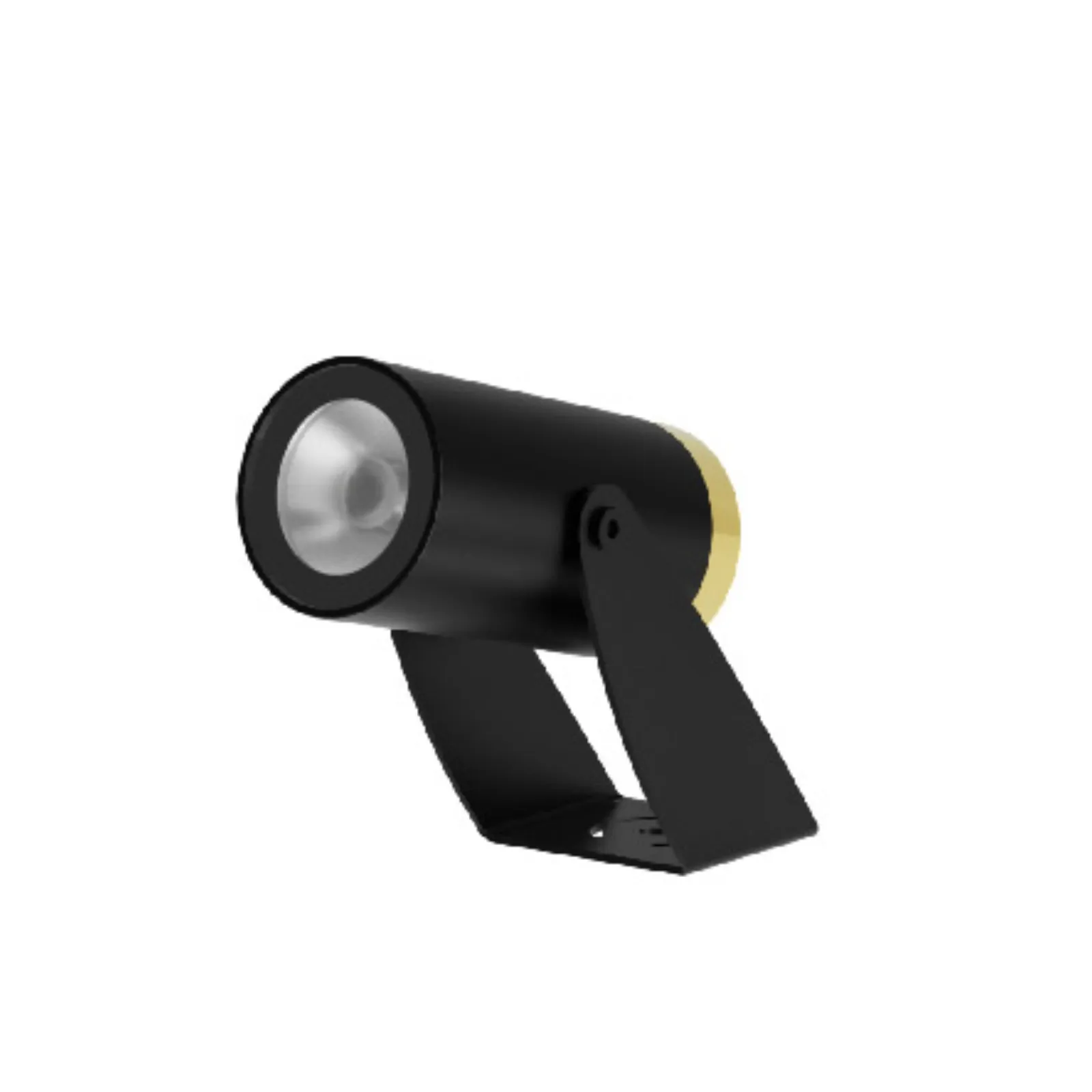

OAK-R-M-AC

The Oaken series LED spotlights are a practical and aesthetic solution for highlighting outdoor areas. They are available with five optic configurations, ultra narrow, narrow, medium, wide and ultra wide for flexibility. With a chemically sealed glass lens and proprietary moisture barriers, the luminaire is capable of withstanding extreme outdoor conditions with consistent performance.

Rated Power

7W, 10W

Delivered Lumen

425lm(@7W 2700K) 497lm(@7W 3000K) 519lm(@7W 3500K) 547lm(@7W 4000K); 607lm(@10W 2700K) 710lm(@10W 3000K) 742lm(@10W 3500K) 781lm(@10W 4000K)

Led Color

2200/2700/3000/4000K

Cri

80, 90

Beam Angle

14°/21°/30°/40°/50°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

D:58mm x L:115mm x H:97mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

100-305V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON-OFF

Notes

FIXTURE CONNECTION : PIGTAIL

Led Quantity

1 LED

Light Source

CREE

Rated Current

142mA (@7W, 115 VAC, 60Hz), 191mA (@10W, 115 VAC, 60Hz); 77mA (@7W, 230 VAC, 50Hz), 108mA (@10W, 230 VAC, 50Hz)
