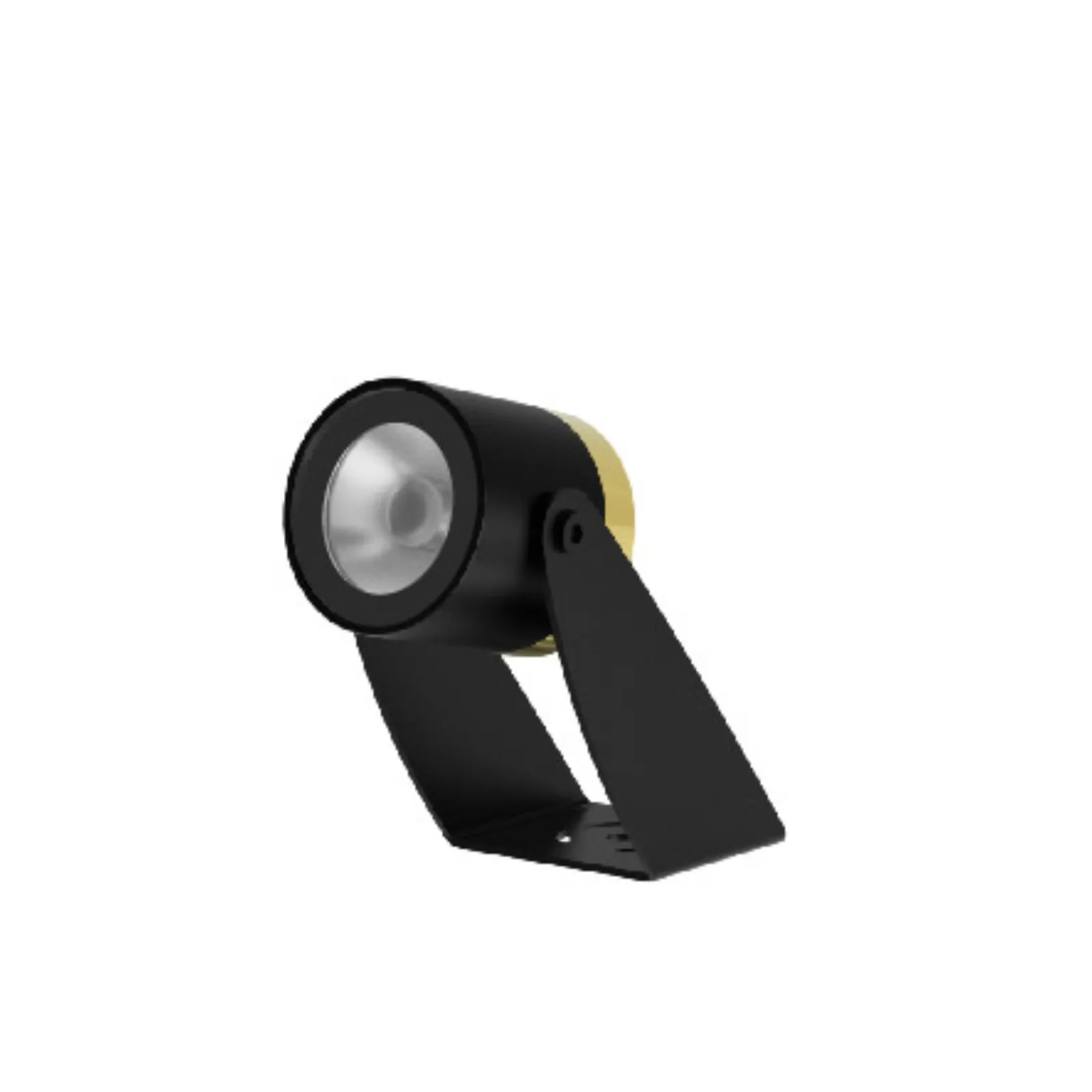

OAK-R-M-DC

The Oaken series LED spotlights are a practical and aesthetic solution for highlighting outdoor areas. They are available with five optic configurations, ultra narrow, narrow, medium, wide and ultra wide for flexibility. With a chemically sealed glass lens and proprietary moisture barriers, the luminaire is capable of withstanding extreme outdoor conditions with consistent performance.

Rated Power

9W(CC), 10W(CV)

Delivered Lumen

546lm(@9W 2200K) 639lm(@9W 2700K) 668lm(@9W 3000K) 703lm(@9W 4000K); 607lm(@10W 2200K) 710lm(@10W 2700K) 742lm(@10W 3000K) 781lm(@10W 4000K)

Led Color

2200/2700/3000/4000K

Cri

80, 90

Beam Angle

14°/21°/30°/40°/50°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

D:58mm x L:115mm x H:97mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

24V DC(10W, CV)

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON-OFF; 1-10V(CC); DALI(CC)

Led Quantity

1 LED

Light Source

CREE

Rated Current

492mA(9W, CC)
