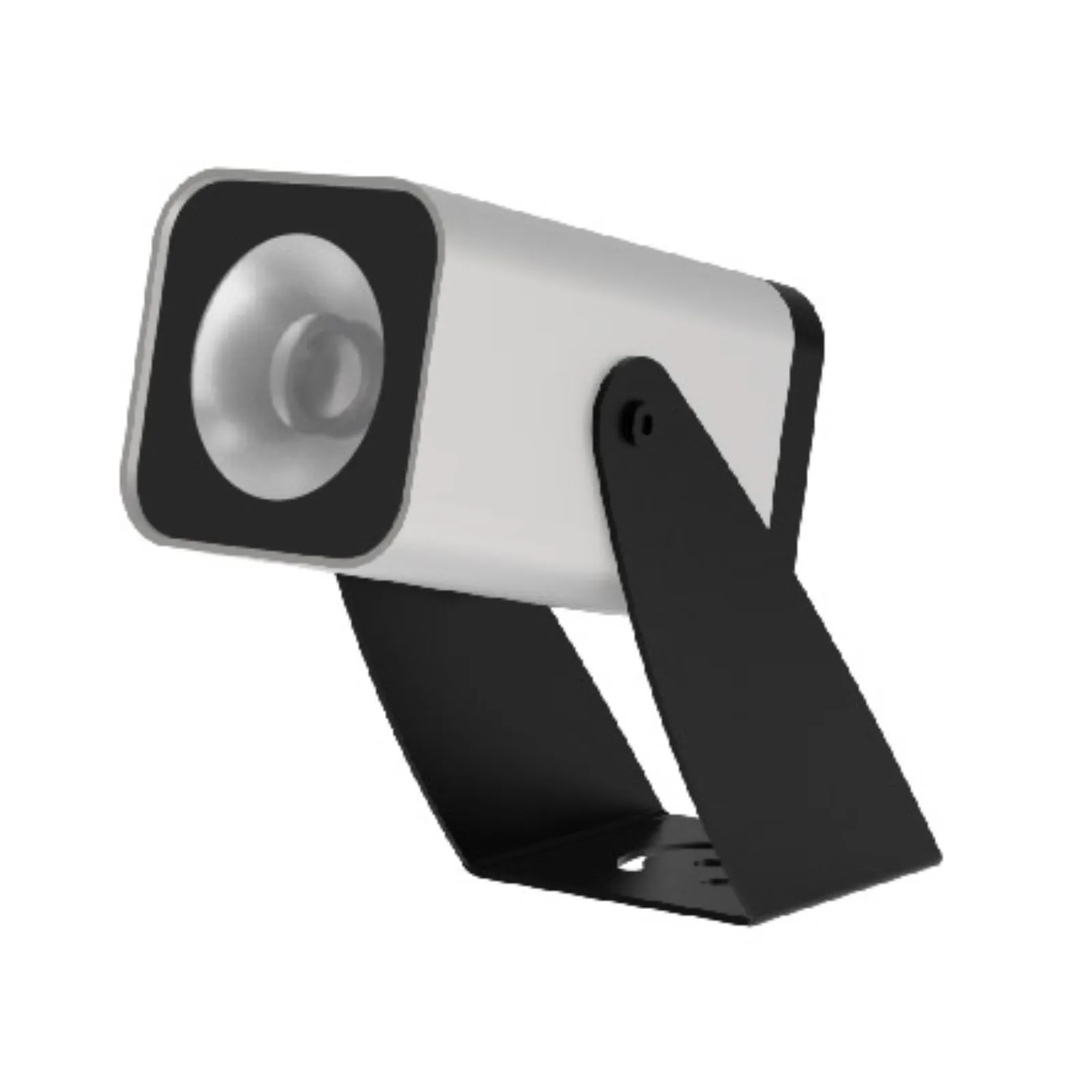

OAK-Q-L-AC

The Oaken series LED spotlights are a practical and aesthetic solution for highlighting outdoor areas. They are available with five optic configurations, ultra narrow, narrow, medium, wide and ultra wide for flexibility. With a chemically sealed glass lens and proprietary moisture barriers, the luminaire is capable of withstanding extreme outdoor conditions with consistent performance.

Rated Power

15W, 20W

Delivered Lumen

961lm(@15W 2200K) 1113lm(@15W 2700K) 1187lm(@15W 3000K) 1191lm(@15W 3500K) 1166lm(@15W 4000K) 1161lm(@15W 5000K); 1280lm(@20W 2200K) 1483lm(@20W 2700K) 1582lm(@20W 3000K) 1587lm(@20W 3500K) 1554lm(@20W 4000K) 1547lm(@20W 5000K)

Led Color

2200/2700/3000/3500/4000/5000K

Cri

80, 90

Beam Angle

13°/21°/30°/44°/52°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

D:79mm x L:136mm x H:132mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

100-277V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

0-10V Dimmable

Notes

FIXTURE CONNECTION : PIGTAIL

Led Quantity

1 LED

Light Source

CREE

Rated Current

128mA (@15W, 115 VAC, 60Hz), 173mA (@20W, 115 VAC, 60Hz); 67mA (@15W, 230 VAC, 50Hz), 87mA (@20W, 230 VAC, 50Hz)
