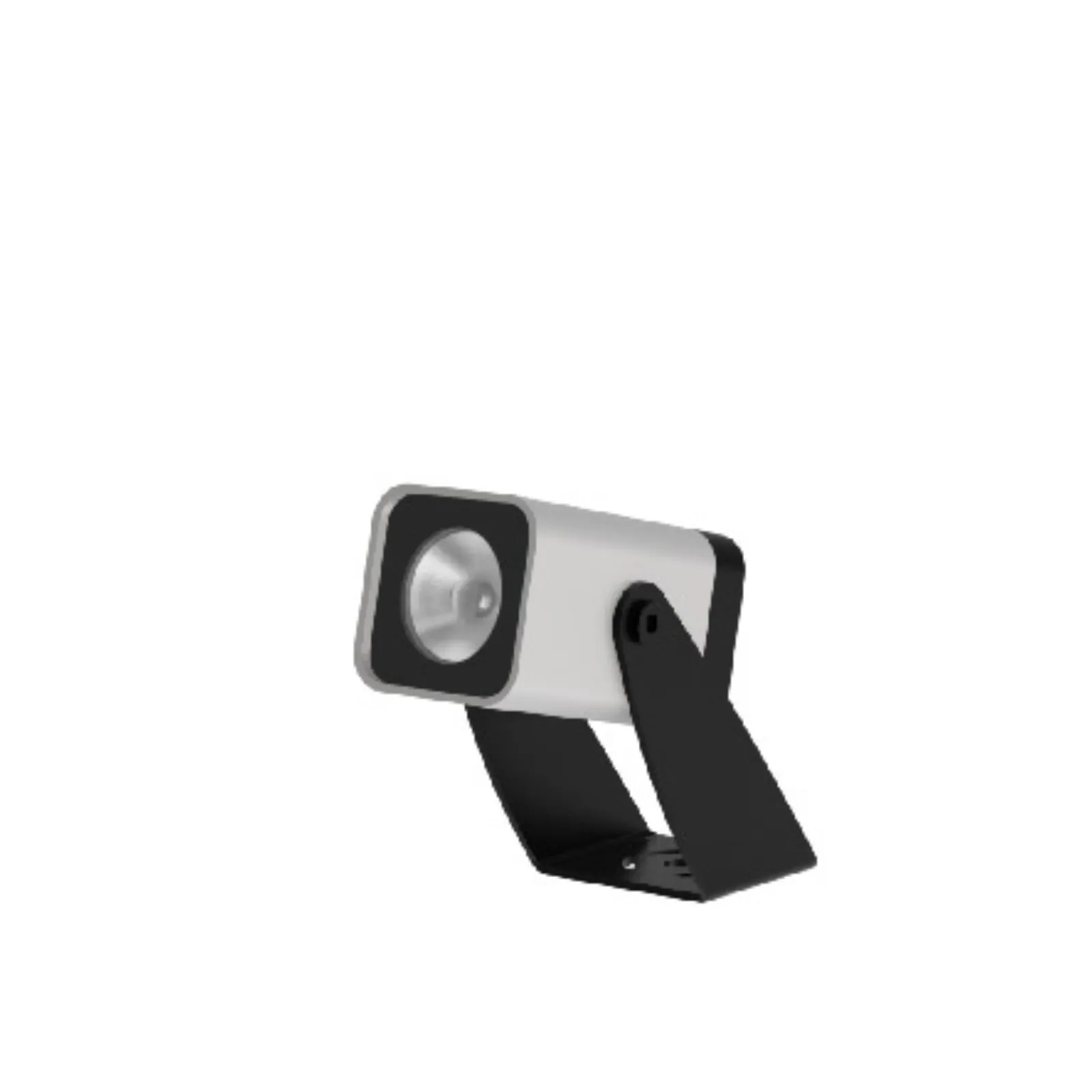

OAK-Q-S-AC

The Oaken series LED spotlights are a practical and aesthetic solution for highlighting outdoor areas. They are available with three optic configurations, narrow, medium and wide, for flexibility. With a chemically sealed glass lens and proprietary moisture barriers, the luminaire is capable of withstanding extreme outdoor conditions with consistent performance.

Rated Power

3W, 5W

Delivered Lumen

174lm(@3W 2700K) 186lm(@3W 3000K) 187lm(@3W 3500K) 182lm(@3W 4000K); 290lm(@5W 2700K) 310lm(@5W 3000K) 312lm(@5W 3500K) 303lm(@5W 4000K)

Led Color

2700/3000/3500/4000K

Cri

80, 90

Beam Angle

15°/23°/34°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

D:46mm x L:79mm x H:78mm

Body Finish

WHITE, BLACK, SILVER

Supply Voltage

100-264V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON-OFF

Notes

FIXTURE CONNECTION : PIGTAIL

Led Quantity

1 LED

Light Source

SAMSUNG

Rated Current

50mA (@3W, 115 VAC, 60Hz), 66mA (@5W, 115 VAC, 60Hz); 29mA (@3W, 230 VAC, 50Hz), 39mA (@5W, 230 VAC, 50Hz)
