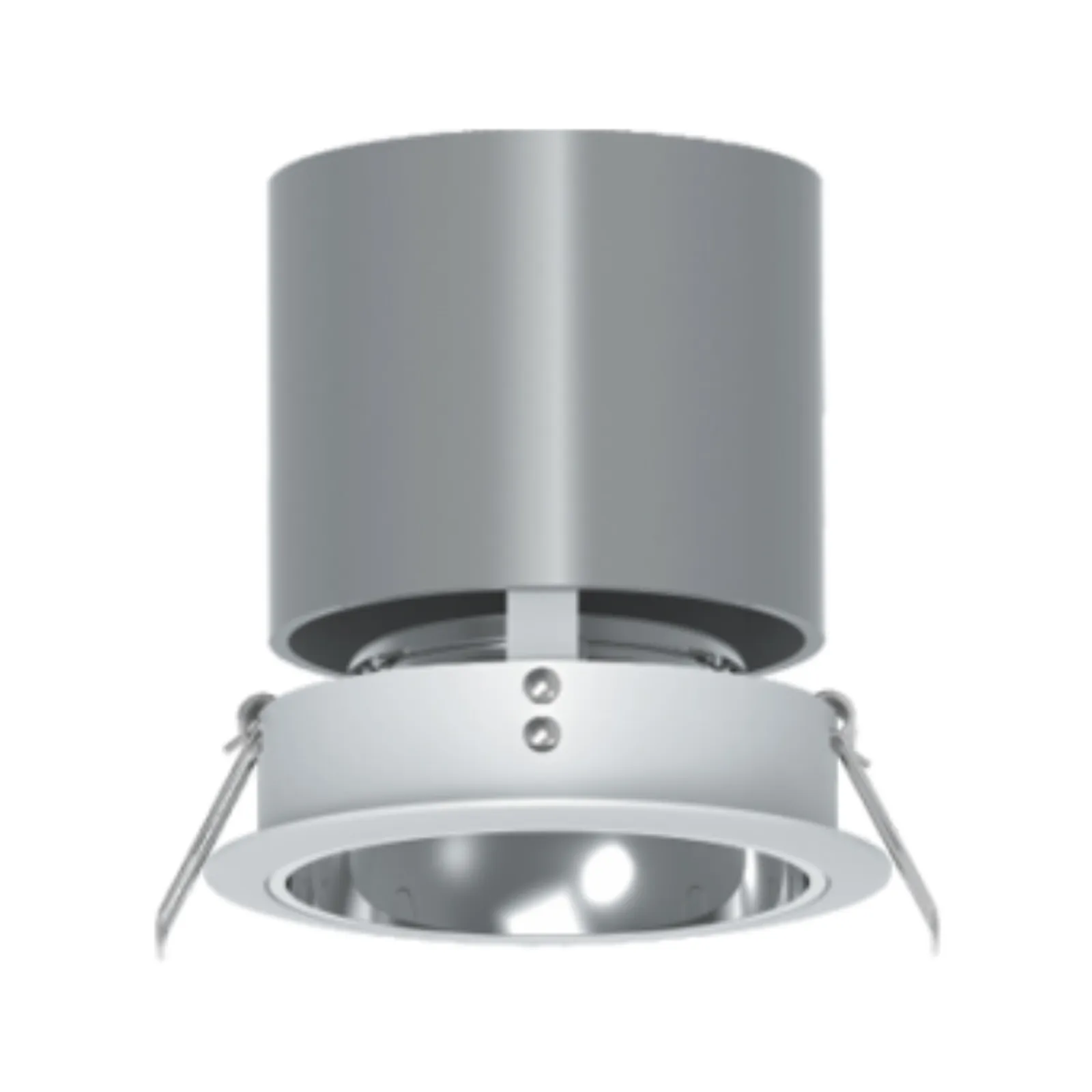

OPAGL 110

PIXL Opera general downlight series are best suited for architectural in addition to general lighting since it enables symmetrical light distribution to get an effective task, accent or general lighting. Wide range of wattage options from 7W to 42W are available making it versatile for applications with mounting heights from 2.8m to 10m. It has carefully designed optics that ensure UGR<19 even with ultra-wide distribution.

Rated Power

15/20 W

Delivered Lumen

90lm/W

Led Color

2700/3000/3500/4000 K

Cri

90+, SDCM<3

Beam Angle

55º

Ip Rating

IP20/44

Mounting

CEILING RECESSED

Dimensions

Ø110 x 115mm

Body Finish

BLACK, WHITE

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF TRIAC 1-10V DALI

Dimming

NON-DIMMABLE, TRIAC, 1-10V, DALI

Lamp Life

50,000 Hrs

Light Source

LUMILEDS/CITIZEN

Body Material

ALUMINUM
