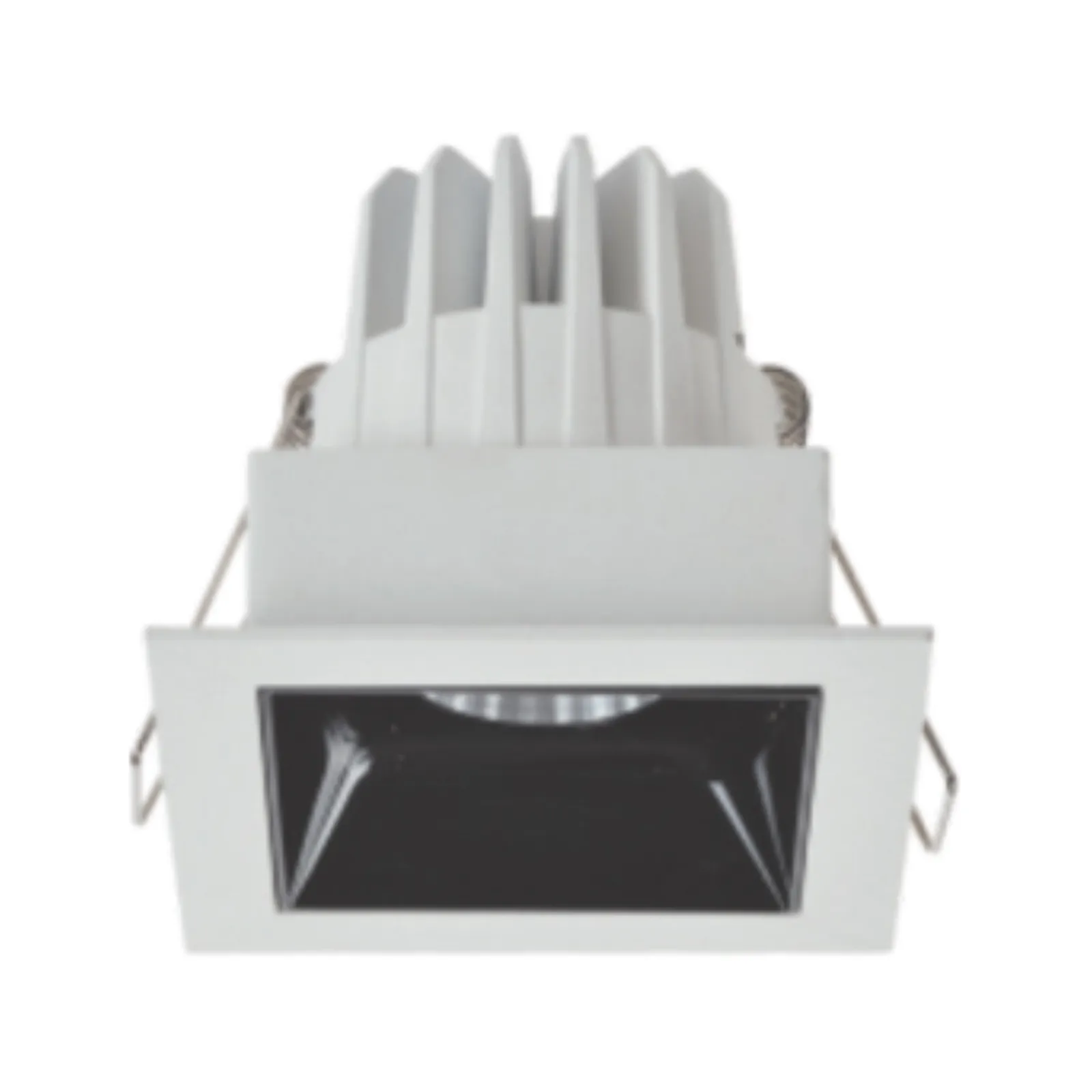

OPASQ 1 TR (WITH TRIM)

PIXL Opera Square downlights are miniature downlights in square profile with choice of 1,2 or 3 lamps with varied beam angles to match the architectural demands. These downlights are becoming a solution that is integrated into the environment to provide efficient and versatile accent lighting.

Rated Power

7/10 W

Delivered Lumen

90lm/W

Led Color

2700/3000/3500/4000 K

Cri

90+, SDCM<3

Beam Angle

15º, 36º, 55º

Ip Rating

IP20

Mounting

CEILING RECESSED

Dimensions

97 x 97 x 86 mm

Body Finish

WHITE,BLACK

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF TRIAC 1-10V DALI

Dimming

NON-DIMMABLE, TRIAC, 1-10V, DALI

Lamp Life

50,000 Hrs

Light Source

LUMILEDS/CITIZEN

Body Material

ALUMINUM
