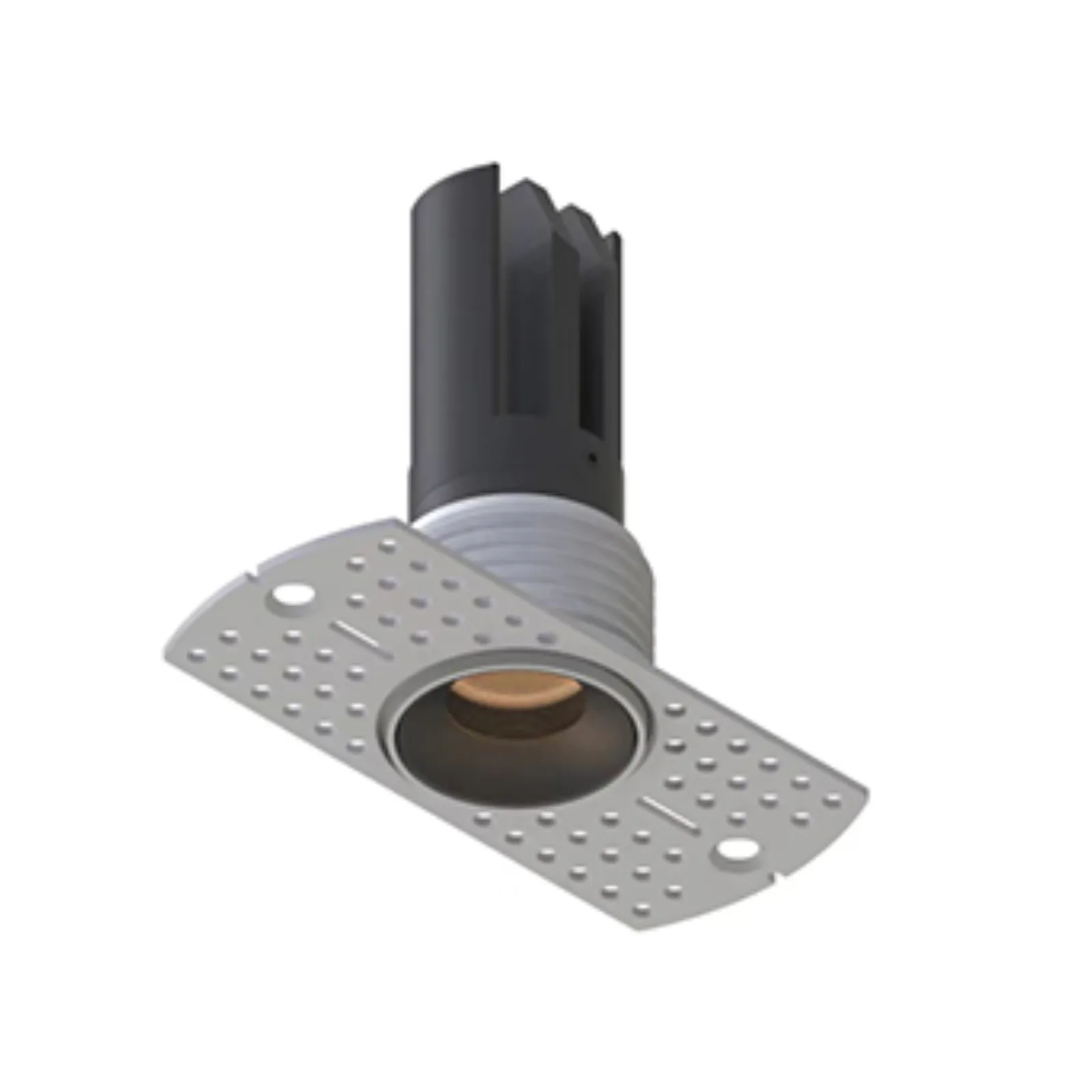

PHD TLS

The Pinhole Downlight Series is a minuscule pinhole downlight designed with an extremely small light aperture of only 19mm yet maintains a high light output ratio. Deeply embedded in its optical core is a unique double-focus lens designed for a virtually glare-free solution, meeting a Unified Glare Rating (UGR) of <19 and providing maximum visual comfort. It seamlessly integrates into your ceiling, offering discreet yet powerful illumination. A robust mechanical design ensures longevity with a die-cast aluminum heat sink that draws heat away from the LED chip. High-level mechanical protection provides IP65-level dust and water ingress protection. This sleek luminaire combines minimalist aesthetics with performance and is available in beam angles of 35° and 50°, as well as both trimless and trim versions, making it suitable for accent lighting in retail stores, hotels, reception areas, architectural spaces, and prestige areas.

Rated Power

2W, 4W, 6W

Delivered Lumen

130lm @ 2W 250lm @ 4W 380lm @ 6W

Led Color

2700/3000/4000K

Cri

90

Beam Angle

15°, 24°, 36°, 50°

Ip Rating

IP65

Mounting

CEILING RECESSED

Dimensions

32 x 83mm (Cutout Ø40, 45mm)

Body Finish

WHITE,BLACK

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

On-Off Dali

Lamp Life

50,000 Hrs

Light Source

BRIDGELUX V4HD

Body Material

ALUMINIUM

Rated Current

100mA 18V (2W), 100mA 36V (4W), 150mA 36V (6W)
