POL 15

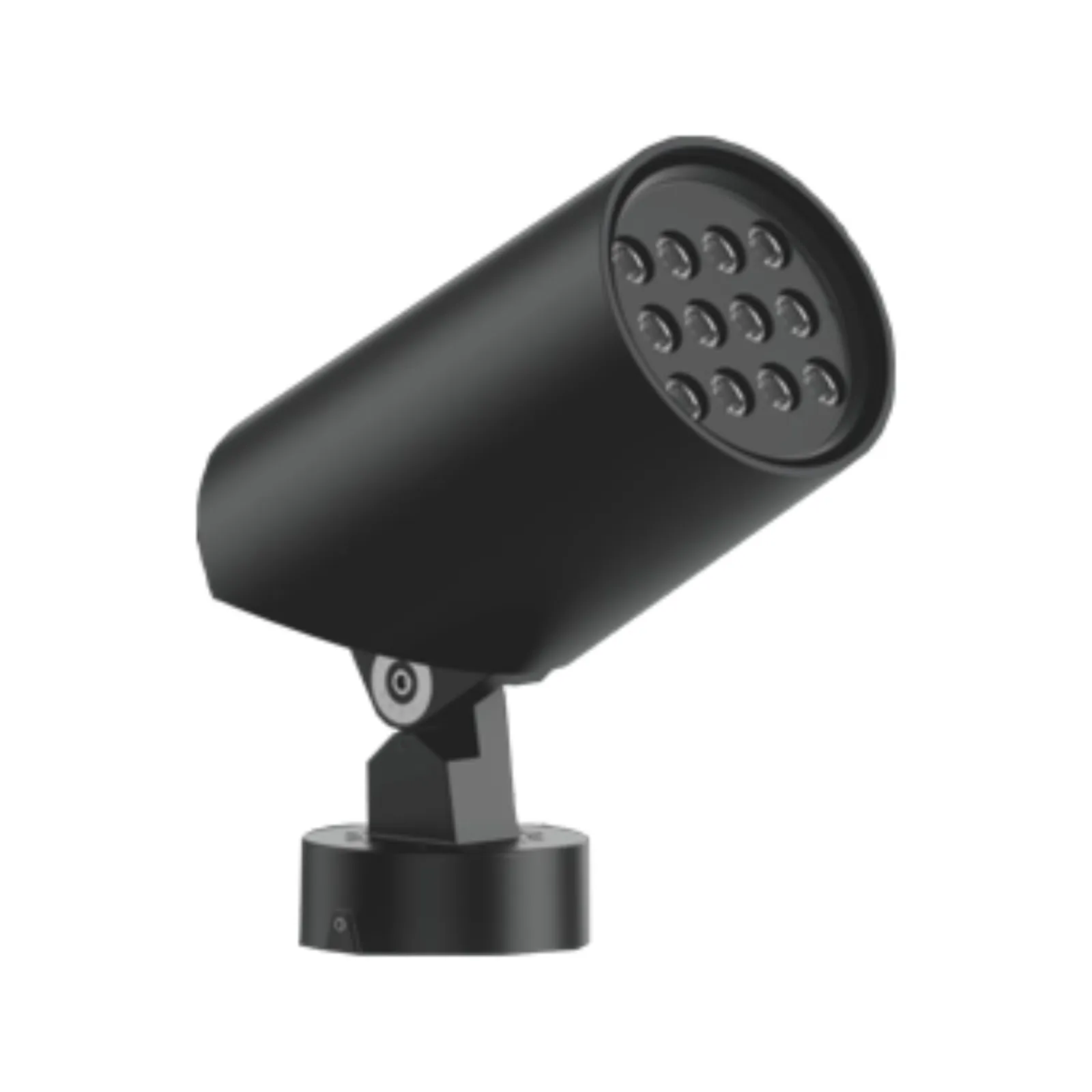

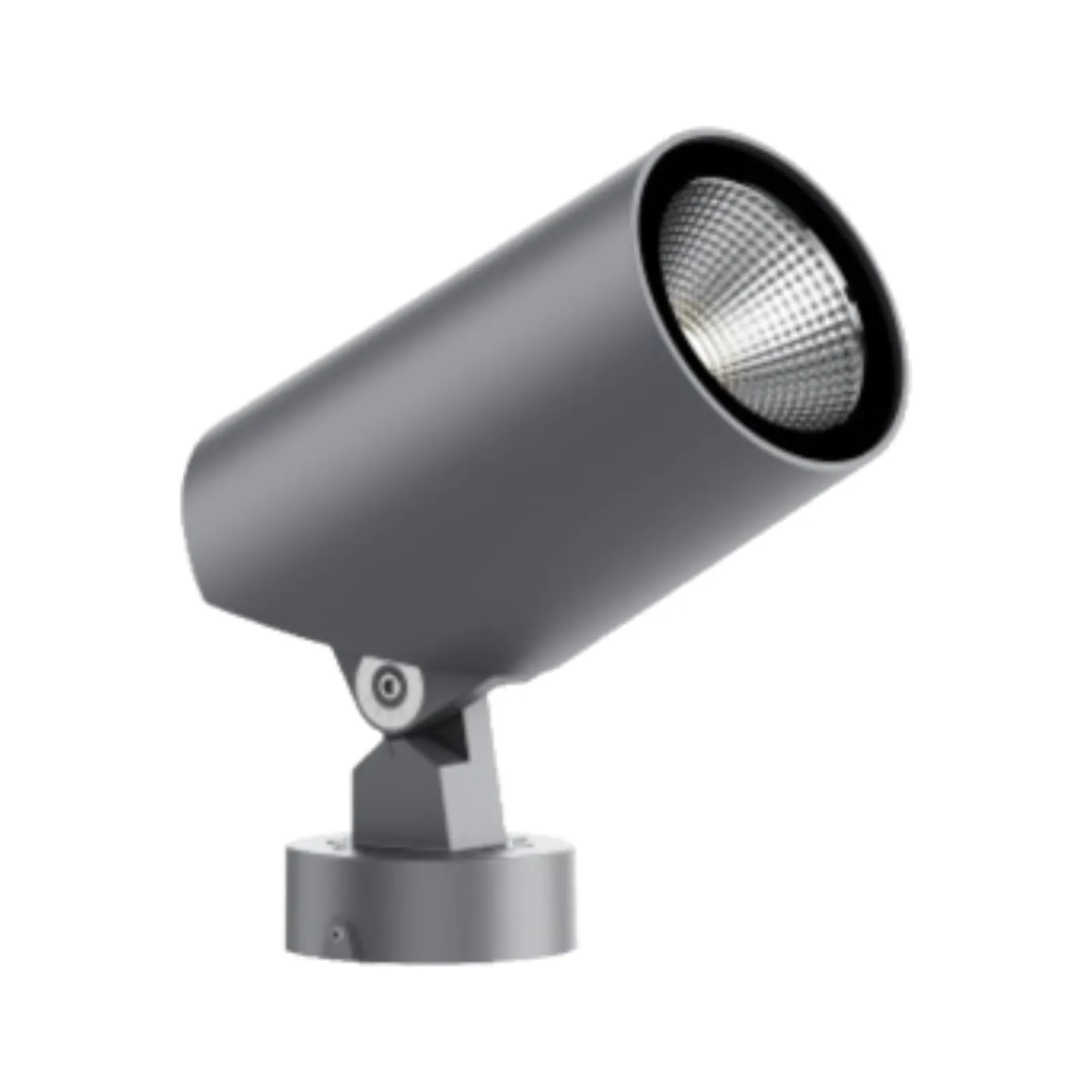

PIXL Polo is a high brightness luminaire in power LED version providing precision optical systems which gives very low glare rating, while reducing light pollution and specially designed for landscapes and in unique structural design shape. These luminaires are designed to offer functional, a wide range of lighting solutions and dramatic highlighting of the architectural facades, landscapes, trees through the superior finishing as well highest efficiency with a long service life. This exterior ground spike luminaries are made in aluminum body and can achieve the desired effect in a wide range of applications with high quality optical systems and for direct lighting.

Rated Power

15 W

Delivered Lumen

1200-1275 lm

Led Color

2700/3000/4000/5000/6000K

Cri

80, 90

Beam Angle

10°, 15°, 23°, 38°, 60°

Ip Rating

IP66

Mounting

SPIKE, POLE MOUNTED

Dimensions

85 x 146mm

Body Finish

BLACK

Supply Voltage

220-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI TRIAC 1-10V

Dimming

NON-DIMMABLE,DALI,1-10V,TRIAC

Lamp Life

50,000 Hrs

Light Source

CREE/CITILED

Body Material

ALUMINUM
