RDC-B

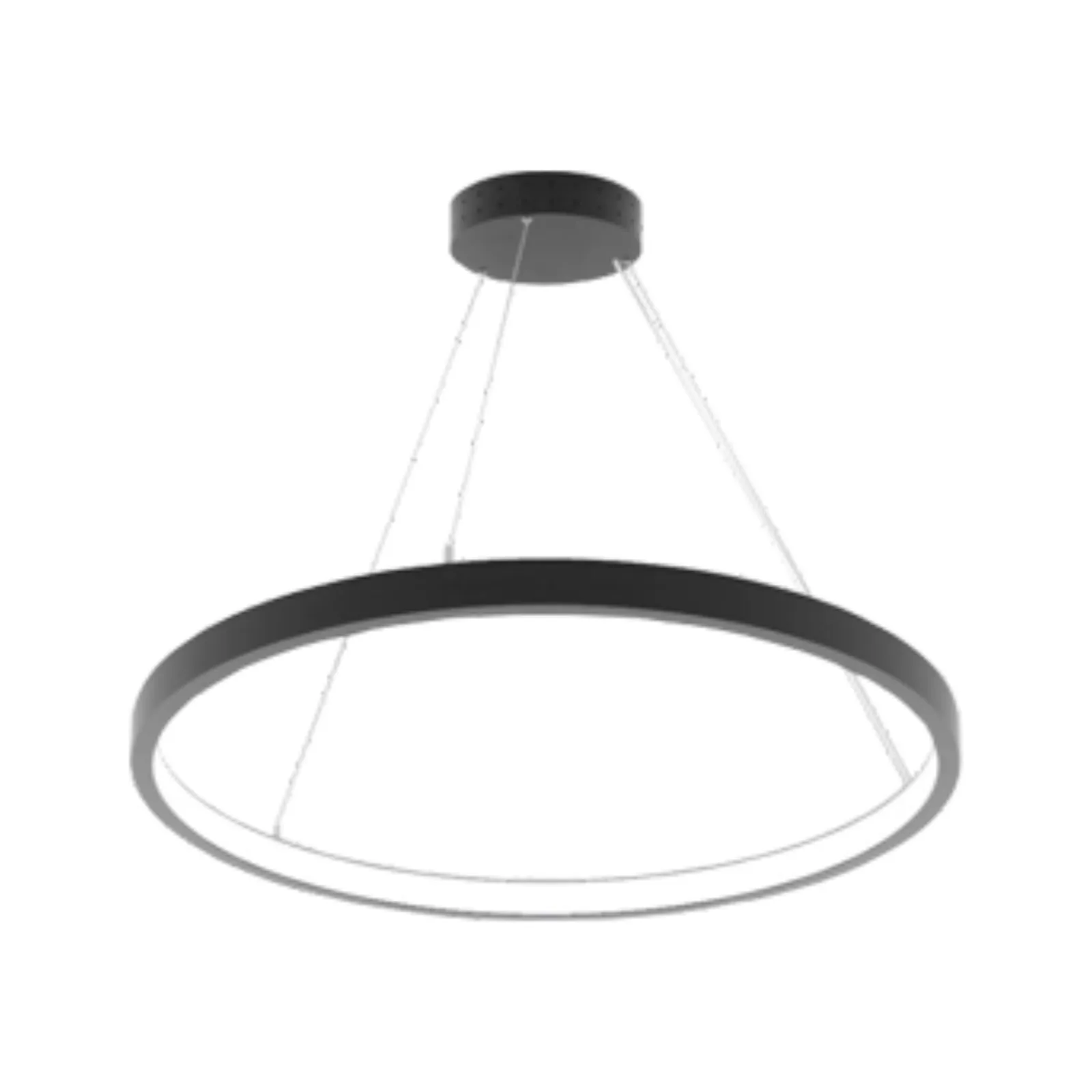

PIXL Radiance is a custom curved or straight shaped luminaire with aluminum body powder coated in required RAL. The dramatic circular/ linear/ custom shaped profile incorporates direct and indirect lighting which enhances the interior environment and creates an elegant effect within the space. PMMA opal diffuser provides a seamless lighting over the entire length of the fixture. Application areas includes Office spaces, breakout spaces, etc.

Rated Power

30W, 40W, 50W, 60W, 63W (1120mm dia), 70W, 90W, 110W, 120W, 145W, 160W, 180W, 200W, 240W, 280W, 320W, 360W, 400W, 480W

Delivered Lumen

75 lm/W

Led Color

2700/3000/4000/6500/RGB/RGBW

Cri

80,90

Beam Angle

120°

Ip Rating

IP20

Mounting

PENDANT / SURFACE MOUNT

Dimensions

1120 x W 31 x H 50mm

Body Finish

BLACK, WHITE, SILVER, GOLD

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; 1-10V; DALI

Lamp Life

100,000 Hrs

Light Source

OSRAM/NICHIA/CREE/SEOUL/CITIZEN

Body Material

ALUMINUM 6063-T5
