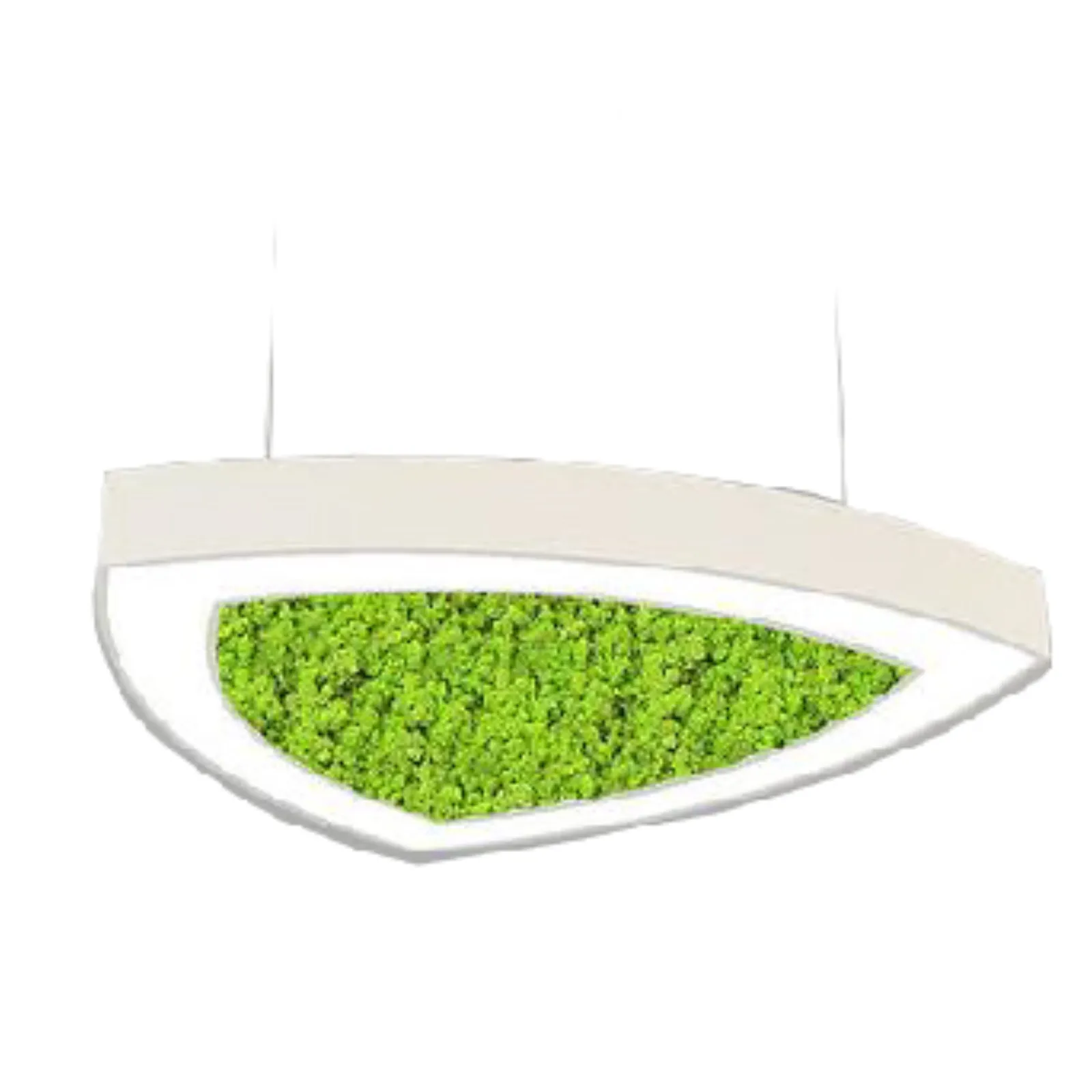

SNC-A TRIANGLE 2-TR2

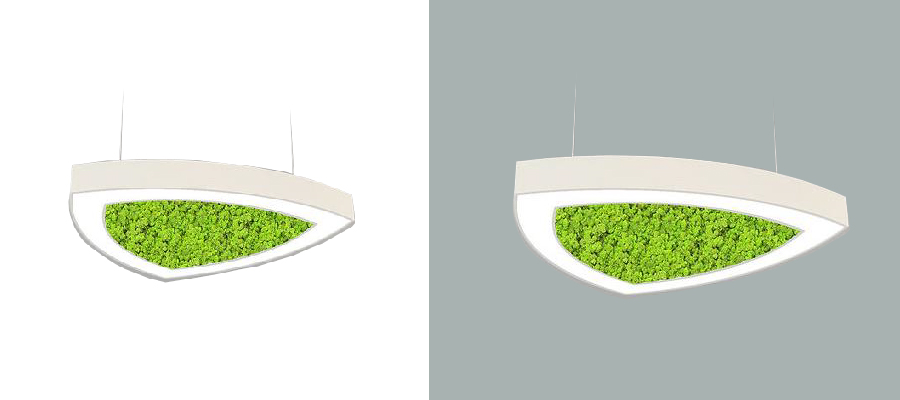

PIXL Sonic series luminaires are developed using dried natural moss to create a Biophilic design inthe indoor work space to enhance occupant's connectivity to the natural environment. Constructed in Aluminium housing with opal diffuser as light optic gives an even illumination. Apart from the standard configurations, it can be custom built to various shapes as per the client's design. Various options of light distribution- up, down, up/down and the percentage of the light component can be to the requirements of the client. Wide range of custom colors for the light frame to suit the ambience.

Rated Power

28W, 42W, 56W

Delivered Lumen

1500lm 2200lm 3000lm

Led Color

2700/3000/4000/6500K

Cri

80+,90+

Beam Angle

120°

Ip Rating

IP20

Mounting

SURFACE / PENDANT / RECESSED

Dimensions

600mm x H88mm(28W), 900mm x H88mm(42W),1200mm x H88mm(56W)

Body Finish

White, (Option of custom color)

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF DALI 0-10V

Notes

SDCM : 3 SDCM (Standard); 2 SDCM upon request LIGHT DISTRIBUTION : Direct (D); Indirect (I); Direct/Indirect (D/I)

Dimming

NON-DIMMABLE,DALI,0-10V

Lamp Life

L70, B50, 75,000 HRS

Light Source

CREE / OSRAM / NICHIA / SAMSUNG
