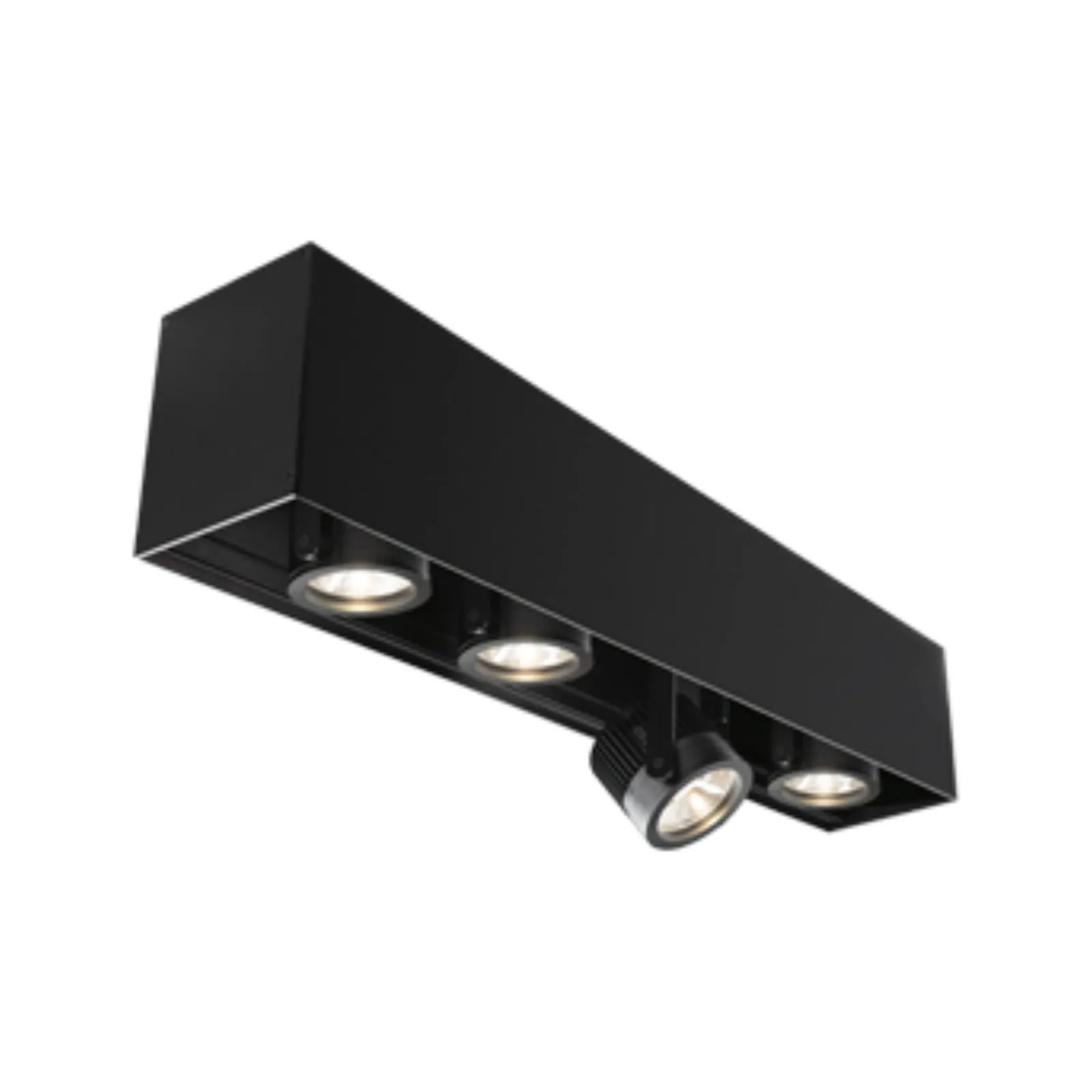

TENTACLE (RECESSED)

PIXL Tentacle Recessed 6 features adjustable, drop down spots with directional gimbal rings. The system can be made in individual or continuous runs with a multitude of finish options. Available in recessed trim and trimless models. TTL-R : (Trimless) TTL-RT : (With Trim)

Rated Power

18/26/38/49 W

Led Color

3000/4000K

Beam Angle

15°, 24°, 38°, 48°

Ip Rating

IP20

Mounting

RECESSED

Dimensions

1200, 2400mm x 157mm x 195mm

Body Finish

ALUMINUM,BLACK,WHITE

Supply Voltage

220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF 1-10V DALI DMX

Notes

AVAILABLE LENGTH:- 1.2m 2.4m

Dimming

NON-DIMMABLE, 1-10V, DALI, DMX

Options

NUMBER OF HEAD:- 3 Head; 5 Head; 7 Head

Lamp Life

50000 Hrs

Lens Options

GLASS

Light Source

CREE / SAMSUNG

Body Material

100% RECYCLABLE, EXTRUDED ARCHITECTURAL GRADE T6061 ALUMINIUM
