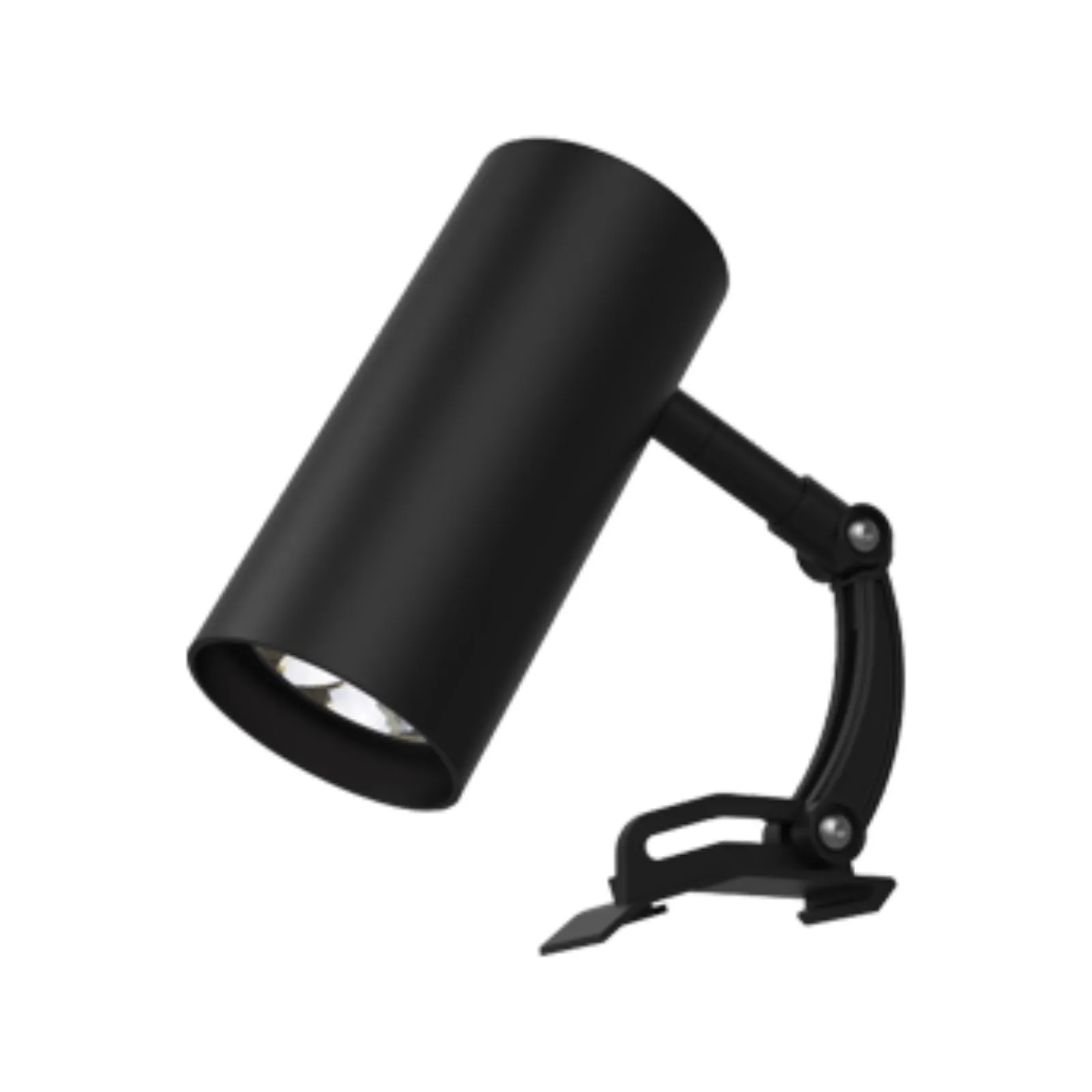

TTL-RCM

PIXL Tentacle's Adjustable LED Spotlight is ideal for Linear Recessed Cove/Slot installations. It features a magnetically attached steel base plate for easy and secure mounting. The multi-directional rotation and adjustable capabilities provide flexibility in concealed light placement, while its discreet design allows it to be completely hidden inside the cove. Compatible with both single and double-sided linear coves/slots, custom fabricated on site by a false ceiling contractor, using either Gypsum or Metal and inside painted matte Black.

Rated Power

18 / 26W

Delivered Lumen

18W (500mA)-1700 Lumens 26W (700mA)-2829 Lumens

Led Color

3000/4000K

Cri

90+

Beam Angle

17°, 24°, 35°

Ip Rating

IP20

Mounting

Recessed

Dimensions

64X136X177mm

Body Finish

BLACK, WHITE

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

1-10V; Non-dimmable; DALI

Lamp Life

50,000 Hrs

Light Source

CREE / CITIZEN

Body Material

DIE-CAST ALUMINUM

Rated Current

500mA / 700mA
