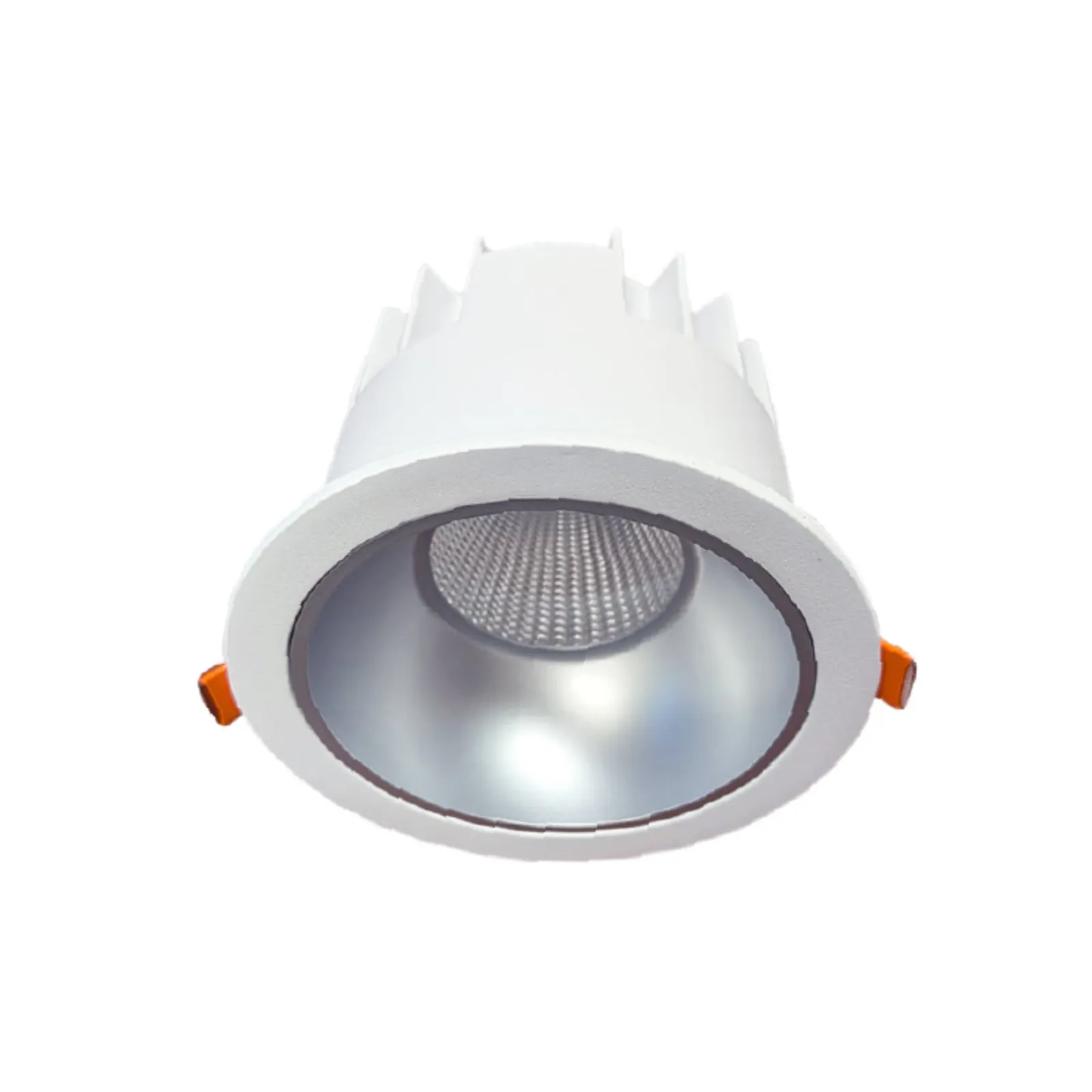

TSR-NA-30W

PIXL Tusker downlight series are anti-glare architectural lighting with symmetric light distribution having UGR<16. It has beautifully shapred aluminum reflector that uses an innovative technology and is available in a varity of colors. The variety of sizes promote the power range from 7W-30W.

Rated Power

30W

Delivered Lumen

100 lm/W

Led Color

2700/3000/4000/5000/6500K

Cri

90

Beam Angle

30°, 45°

Ip Rating

IP44

Mounting

CEILING RECESSED

Dimensions

Ø136 x 98 mm (Cutout Ø116 mm)

Body Finish

WHITE,BLACK

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; TRIAC; 0-10V

Notes

UGR : UGR <16

Lamp Life

50,000 Hrs

Body Material

ALUMINIUM

Supply Current

120-277V AC
