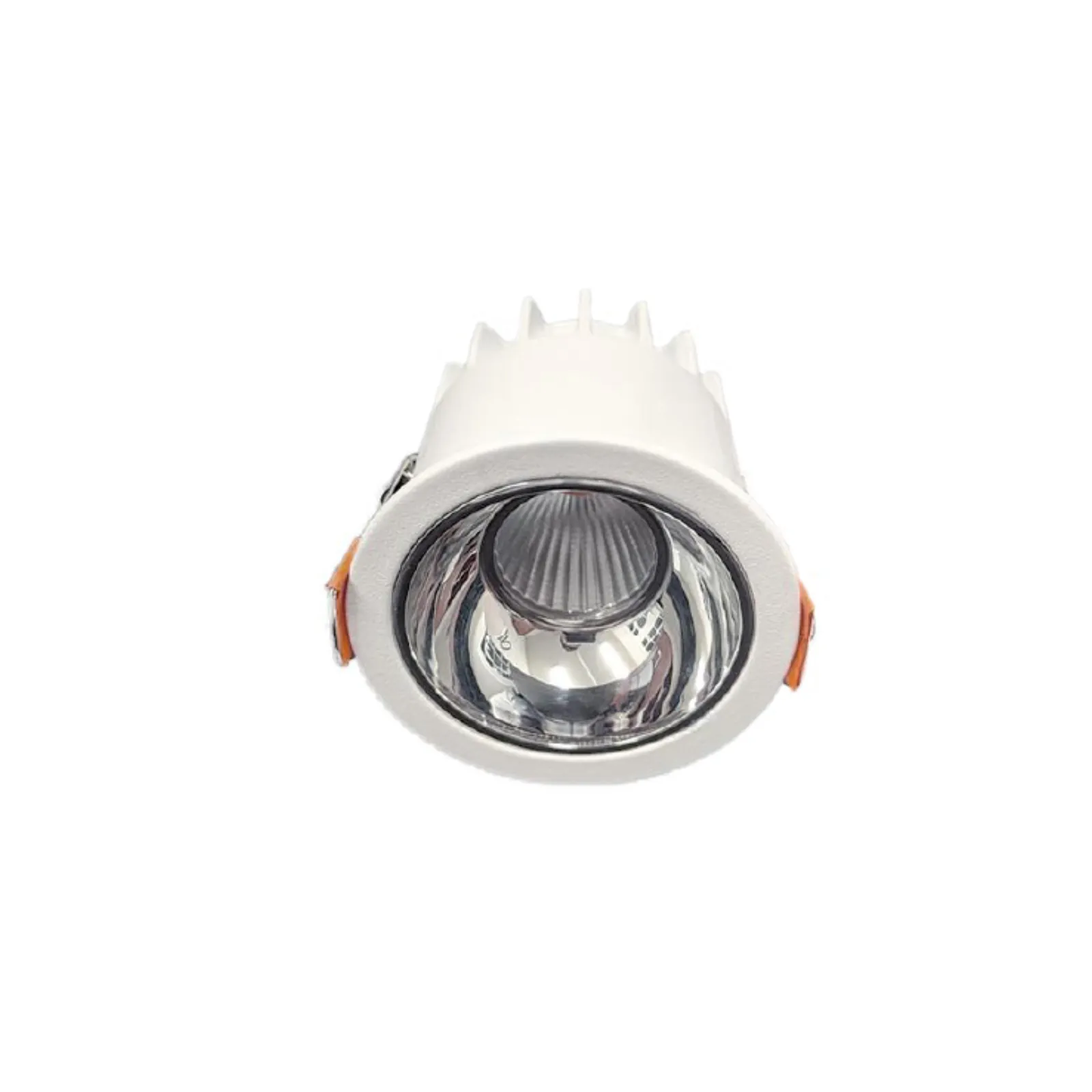

TSR-NA-7W

PIXL Tusker downlight series are anti-glare architectural lighting with symmetric light distribution having UGR<16. It has beautifully shapred aluminum reflector that uses an innovative technology and is available in a varity of colors. The variety of sizes promote the power range from 7W-40W.

Rated Power

7W

Delivered Lumen

100 lm/W

Led Color

2700/3000/4000/5000/6500K

Cri

90

Beam Angle

15°, 30°

Ip Rating

IP44

Mounting

CEILING RECESSED

Dimensions

Ø70 x 50 mm (Cutout Ø58 mm)

Body Finish

WHITE,BLACK

Supply Voltage

120-277V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; TRIAC; 0-10V

Notes

UGR : UGR < 16

Lamp Life

50,000 Hrs

Installation

IC Type; Easy installation with J-box (no housing needed)

Body Material

ALUMINIUM
