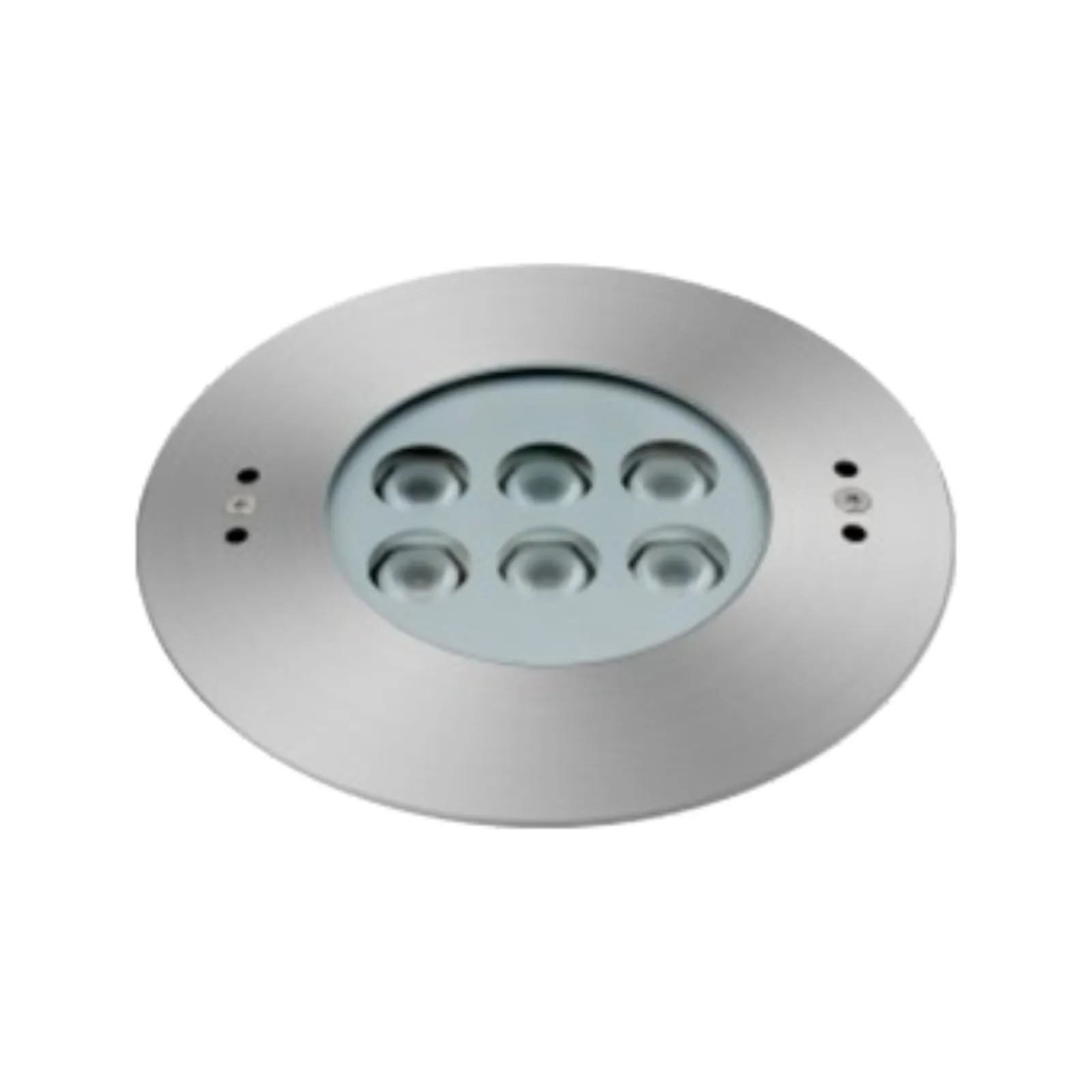

UW-RL-180

PIXL UW series are refined underwater luminaires available in various size, wattage, multiple beam angles to suit varied project requirements. Constructed in 316L grade stainless steel body with high efficiency lens optic and hermetically sealed to IP68 through tempered glass diffuser. Application areas includes all under water, swimming pools etc.

Rated Power

6X2W

Led Color

2700/3000/4000/4500/5000/5500/6000/6500K/RED/GREEN/BLUE

Cri

80

Beam Angle

15°/ 30°/ 45°/ 60°/ 45°x35°

Ip Rating

IP68

Mounting

Floor/Wall Recessed

Dimensions

180X77mm (H)

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; DALI; 1-10V

Notes

MAXIMUM RECESSING DEPTH : 3 meter

Lamp Life

50,000 Hrs

Led Quantity

6LEDs

Lens Options

Tempered glass T=8mm

Light Source

OSRAM/CREE

Body Material

STAINLESS STEEL 316L
