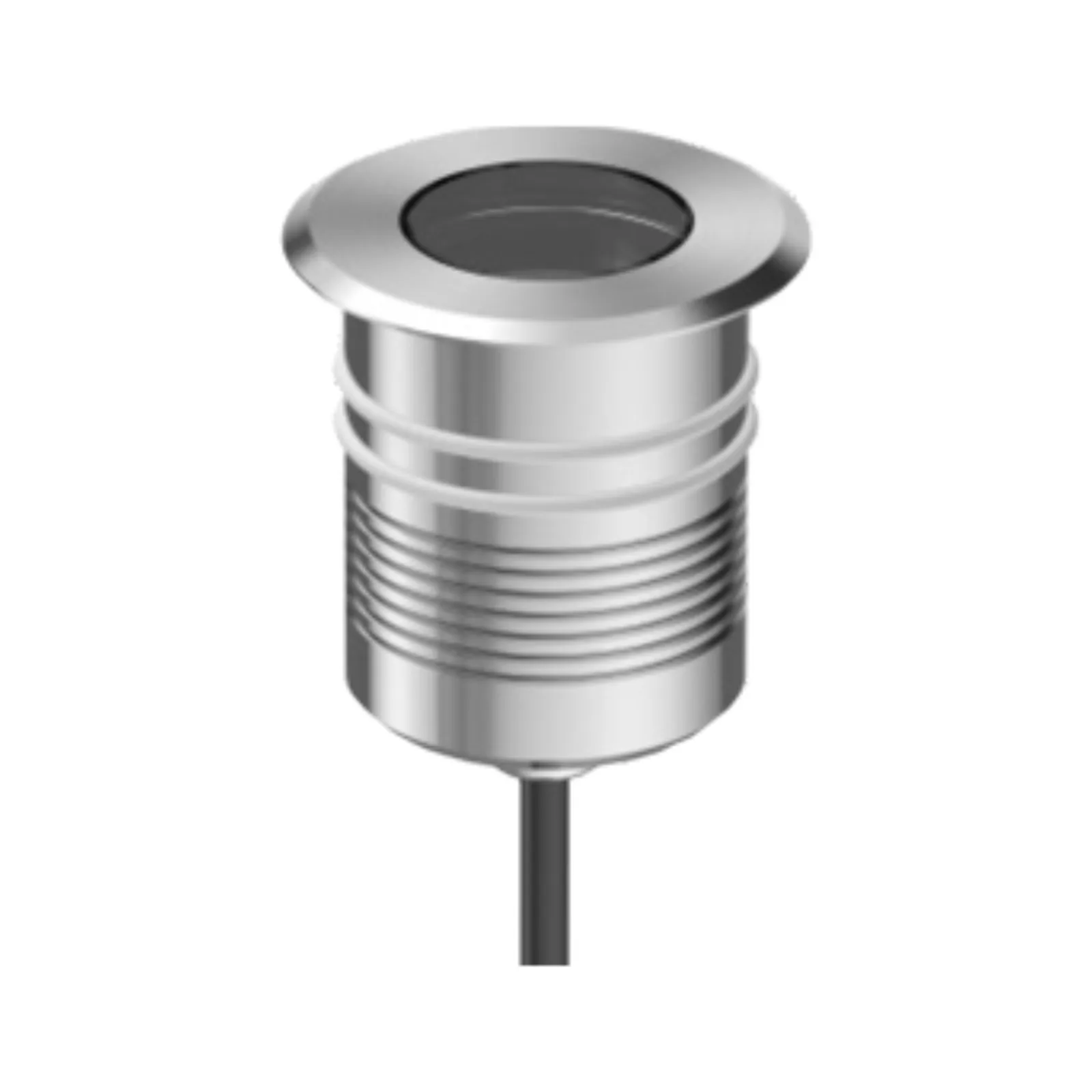

UW-RM 38

PIXL UW series are refined underwater luminaires available in various size, wattage, multiple beam angles to suit varied project requirements. Constructed in 316L grade stainless steel body with high efficiency lens optic and hermetically sealed to IP68 through tempered glass diffuser. Application areas includes all under water, swimming pools etc.

Rated Power

1W / 1.5W / 2W

Led Color

2200K, 2700K, 3000K, 4000K, 5000K, 6500K, Red, Green, Blue, Yellow, Amber

Cri

80, 90

Beam Angle

12°, 25°, 40°, 60°

Ip Rating

IP68

Mounting

FLOOR RECESSED / WALL RECESSED

Dimensions

38x60mm(H)

Supply Voltage

12V DC / 24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

On-Off Triac Dali 1-10V

Notes

MAXIMUM RECESSING DEPTH : 3 meter

Lamp Life

50,000 Hrs

Led Quantity

1 LED

Lens Options

TEMPERED GLASS T=8mm

Light Source

OSRAM / CREE

Body Material

STAINLESS STEEL 316L
