VP-60

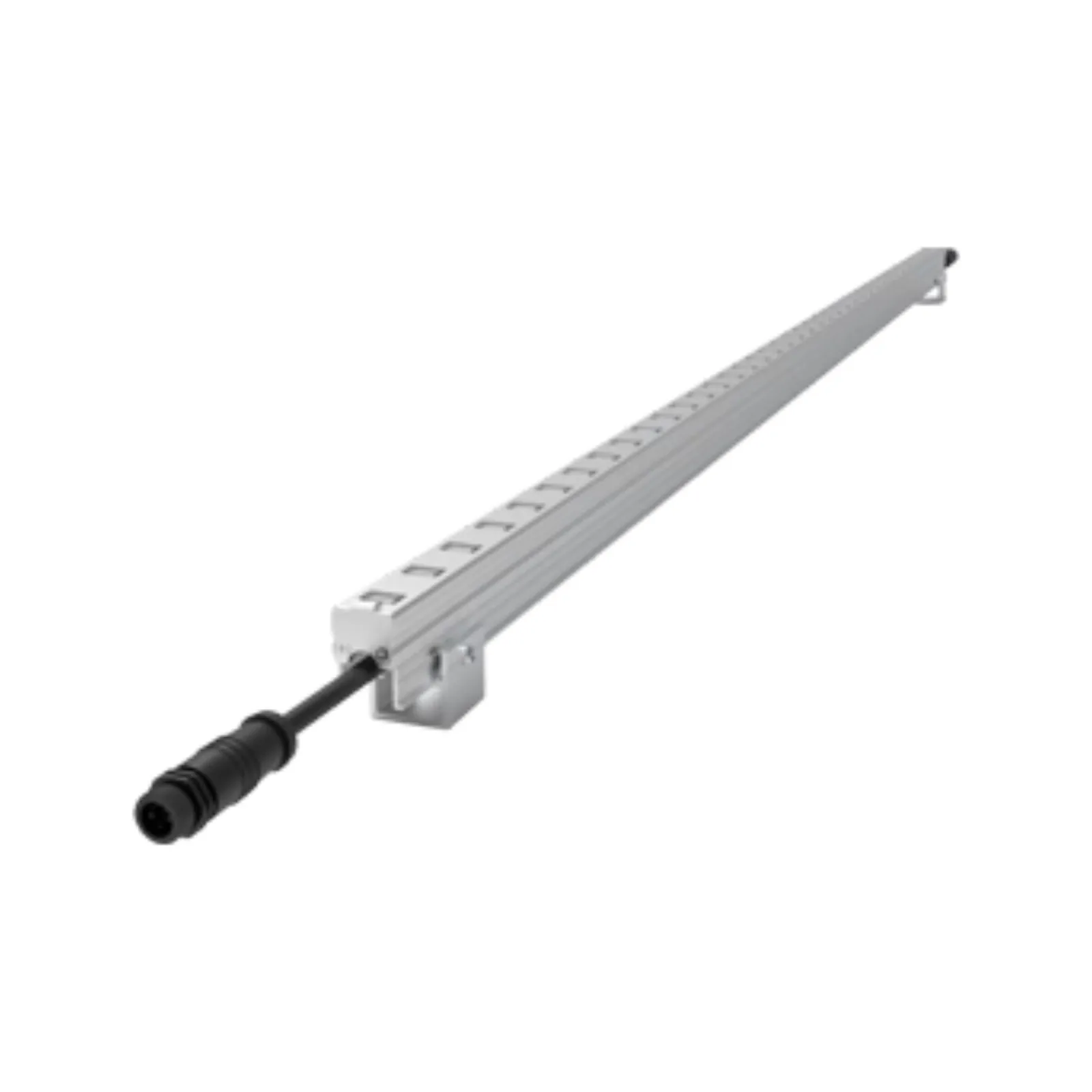

PIXL Vertex Pixel is a linear lighting wall grazer which suits perfectly for highlighting outdoor and indoor applications offering powerful and efficient wall grazing and providing a high environmental projection grade IP65. It is available in range of monochromatic or color changing temperatures, controlled via ON/OFF or DMX controls. This easily integrated fixture is suitable for a wide range of applications, including media façades, touring concerts, stadiums, theme parks or just about any fixed or temporary tight space installation.

Rated Power

12W/mtr

Delivered Lumen

25-30lm/W

Led Color

RGB

Beam Angle

120°

Ip Rating

IP65

Mounting

SURFACE MOUNT

Dimensions

1000(L)x20.4(W)x27mm(H)

Supply Voltage

48V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DMX

Notes

PIXEL PITCH : 100mm (6 LED's per address)

Wiring

Provided with cables with connectors for loop-in and loop-out.

Led Quantity

60 LED/m

Light Source

EPISTAR

Body Material

6063 ALUMINUM
