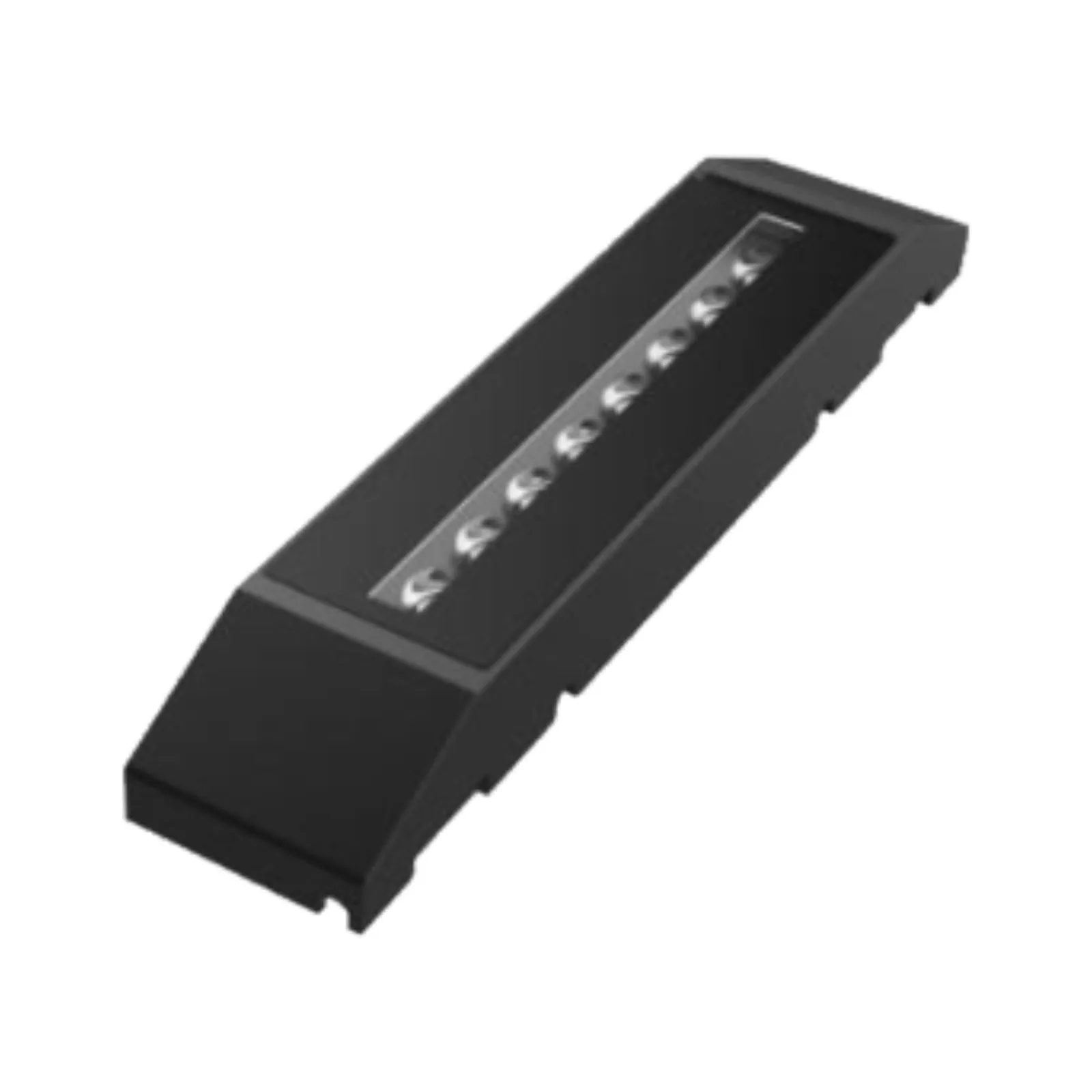

WSL-Mono

PIXL Window sill light-2 is with outstanding design, as small as a shell, and the light spot like a pearl inside. It has a high quality LED with longer use life, higher brightness, pure color, circular lens with double light distribution and anti-vertigo design. It is with integrated design of heat dissipating structure, constant current and international AC in and also provides an intelligent adjustment of overall brightness. These surface mounted lighting fixture help in frame shaping since it is with 360° wide illumination range, and are widely used in storefront window, corridors, hallway, tunnel, etc.

Rated Power

12W

Delivered Lumen

720lm

Led Color

2700/3000/4000/5000/5700/6500K

Cri

80+

Beam Angle

10º x 150°

Ip Rating

IP66

Mounting

SURFACE MOUNTED

Dimensions

320(L)x65(W)x50mm(H)

Body Finish

BLACK,GREY

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF

Dimming

NON-DIMMABLE

Lamp Life

50,000 Hrs

Led Quantity

6 Nos

Lens Options

PMMA

Light Source

CREE / OSRAM

Body Material

ALUMINUM
