indoor· 4 models

LATTICE

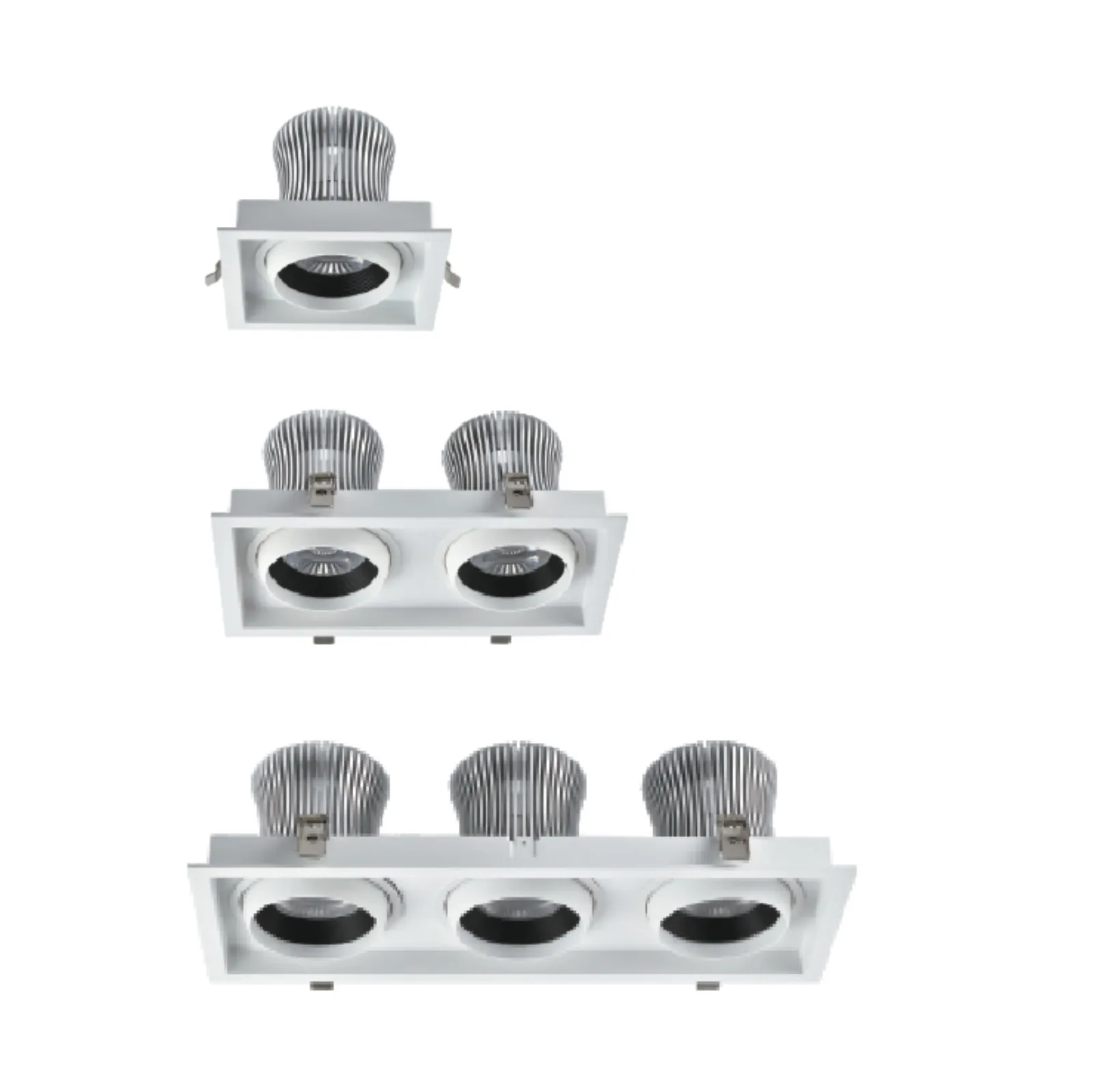

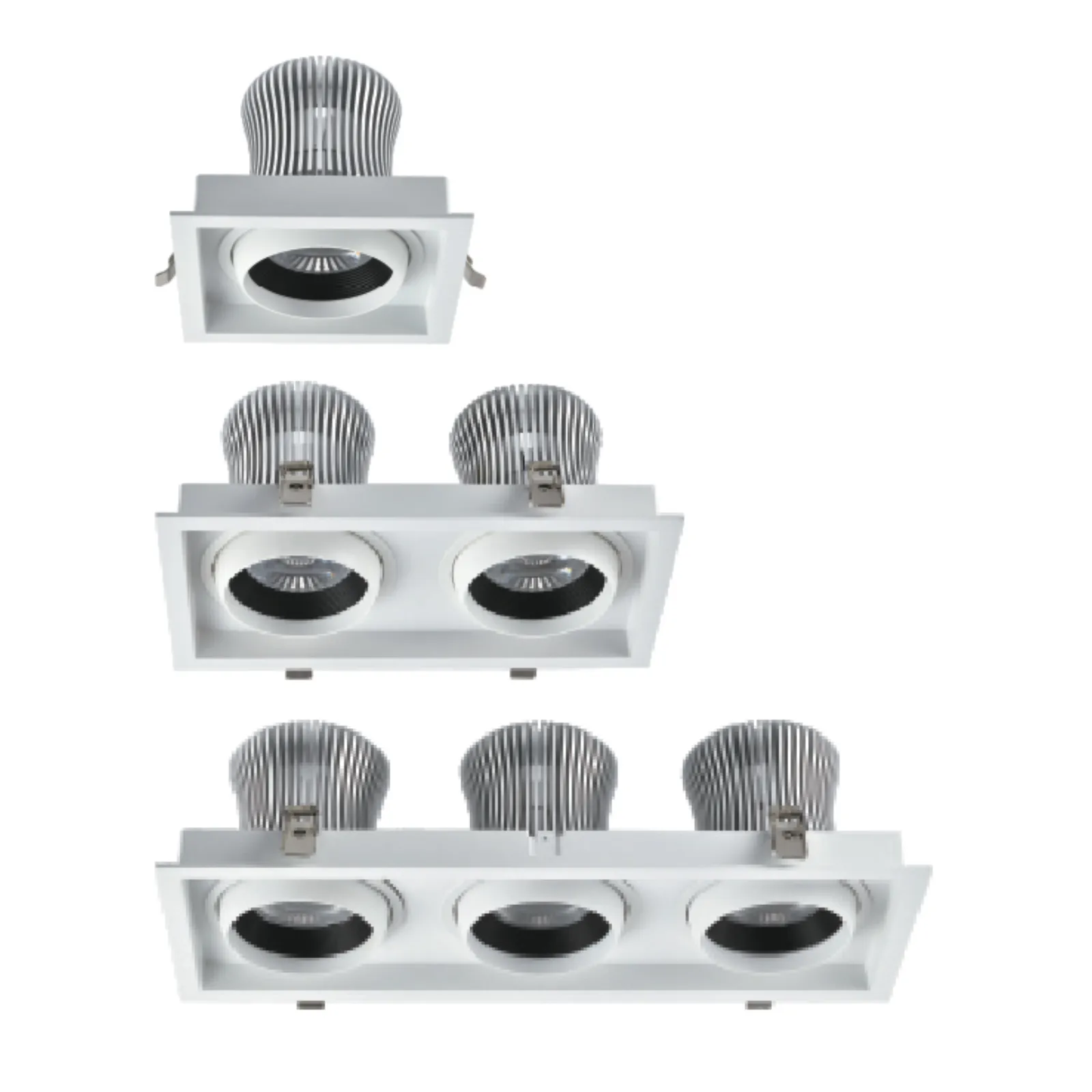

PIXL Lattice series comprises single or twin lamps embedded beautifully in a square themed profile (small, medium, large size) with lamps of varied beam angles to match the architectural demands. These downlights are with symmetric light distribution which enables to achieve effective ambient lighting.

Type: indoor
Models: 4
Power range: 1–40 W

Request a quote

Models (4)

Model	Power	Lumens	Dimensions
LATTICE LARGE	1x30/1x40W, 2x30/2x36W, 3x30/3x36W	85m/W	6.89 x 6.89 x 5.55 in (175 x 175 x 141 mm), 12.8 x 6.89 x 5.55 in (325 x 175 x 141 mm), 18.7 x 6.89 x 5.55 in (475 x 175 x 141 mm)	Details
LATTICE MEDIUM	1x15/1x20W, 2x15/2x20W, 3x15/3x20W	85m/W	5.3 x 5.3 x 4.3 in (135 x 135 x 109 mm), 9.84 x 5.30 x 4.30 in (250 x 135 x 109 mm), 14.37 x 5.30 x 4.30 in (365 x 135 x 109 mm)	Details

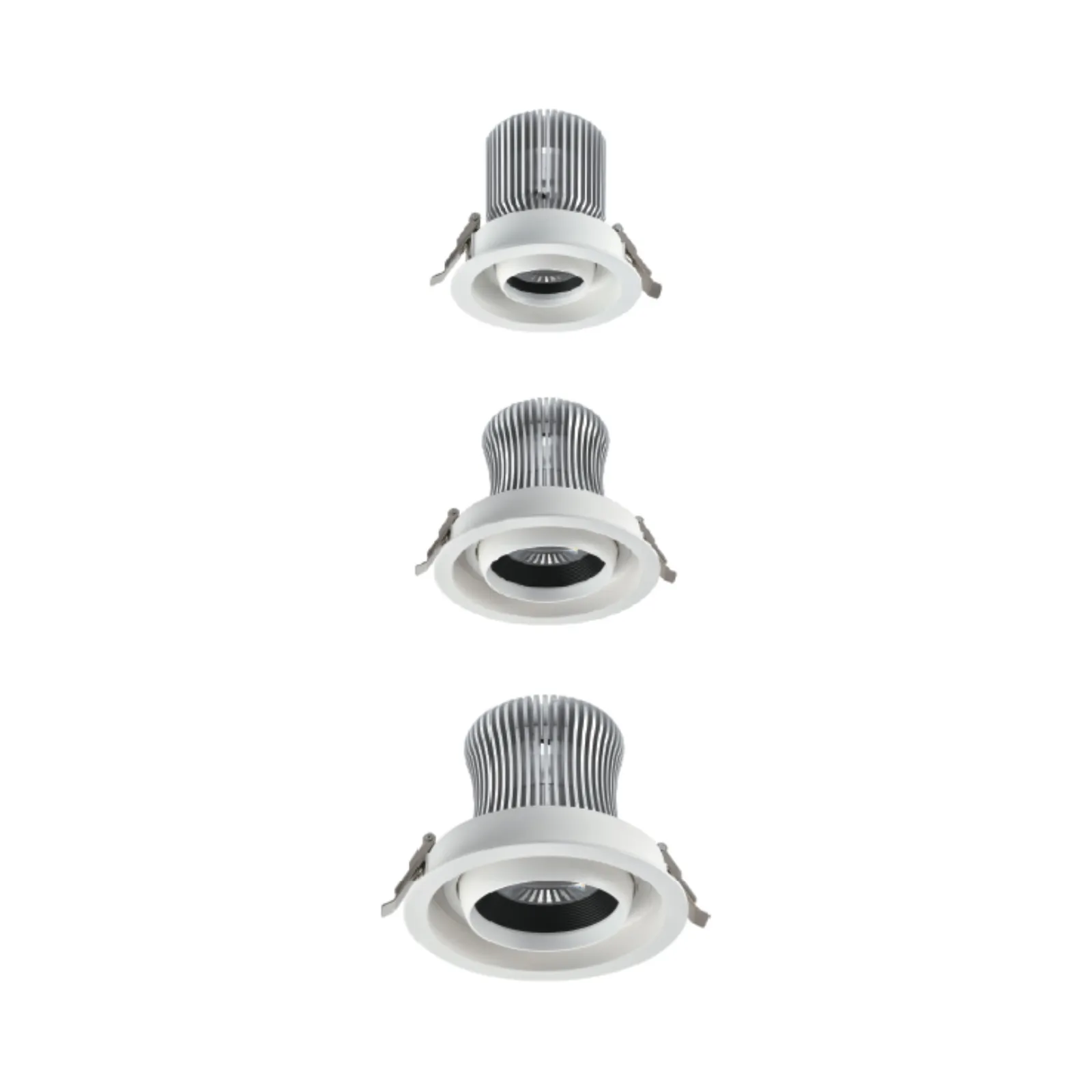

LATTICE ROUND	7/10W, 15/20W, 30/40W	77-85 lm/W	Ø4.53 x 3.74 in (115 x 95 mm), Ø5.3 x 4.3 in (135 x 125 mm), Ø6.89 x 5.12 in (175 x 130 mm)	Details
LATTICE SMALL	1x7/1x10W, 2x7/2x10W, 3x7/3x10W	85m/W	4.53 x 4.53 x 3.66 in (115 x 115 x 93 mm), 8.27 x 4.53 x 3.58 in (210 x 115 x 91 mm), 8.27 x 4.53 x 3.58 in (210 x 115 x 91 mm)	Details
