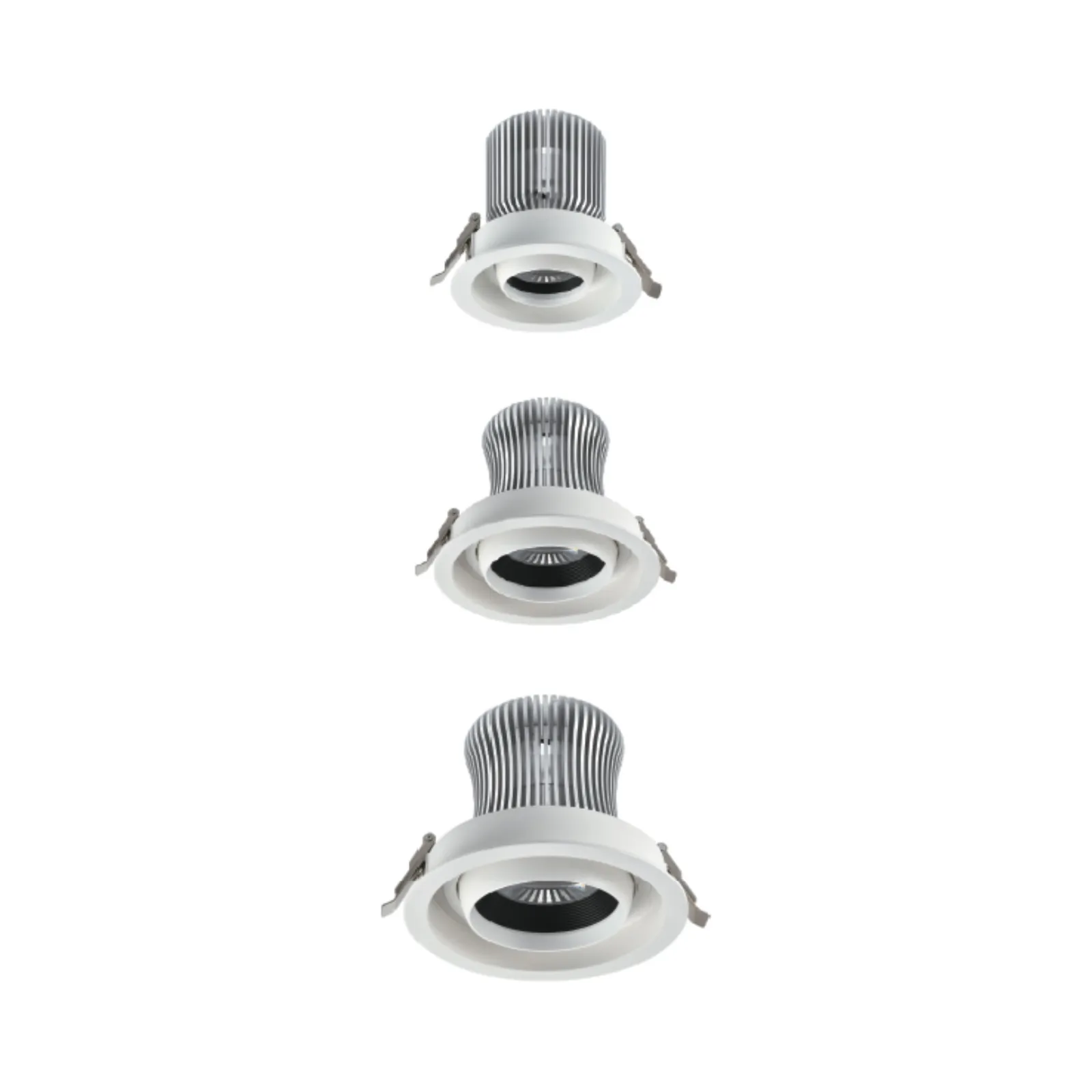

LATTICE ROUND

The PIXL Lattice Series is a versatile and elegantly designed downlight collection, available in round and square-profiled frame. Offered in small, medium, and large sizes, each fixture features a range of beam angles to accommodate diverse architectural and lighting requirements. Designed for symmetrical light distribution, the Lattice Series ensures uniform and efficient ambient lighting, making it an ideal choice for modern interiors that demand both functionality and aesthetics.

Rated Power

7/10W, 15/20W, 30/40W

Delivered Lumen

77-85 lm/W

Led Color

2700/3000/3500/4000K

Cri

>90

Beam Angle

15°, 24°, 40°, 60°

Ip Rating

IP20

Mounting

CEILING RECESSED

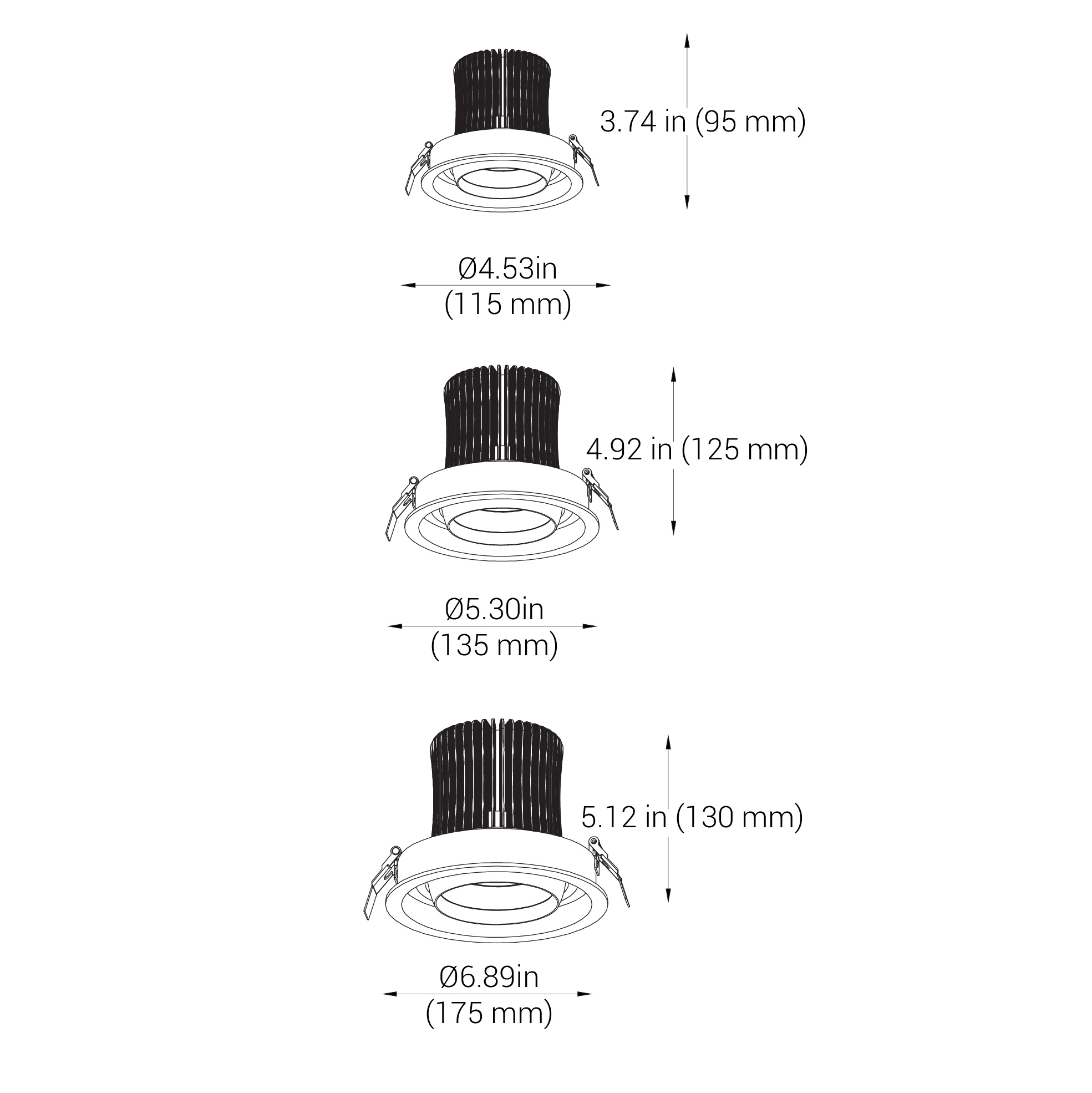

Dimensions

Ø4.53 x 3.74 in (115 x 95 mm), Ø5.3 x 4.3 in (135 x 125 mm), Ø6.89 x 5.12 in (175 x 130 mm)

Body Finish

WHITE,BLACK

Supply Voltage

120V AC, 220-240V AC

Connection

INDOOR RATED CONNECTIONS

Driver / Power Supply Details

Switched (on/off) TRIAC 0/1-10V Dimming DALI

Dimming

Switched (on/off), TRIAC, 0/1-10V Dimming, DALI

Lamp Life

35,000 - 50,000 hrs

Light Source

Bridgelux

Body Material

ALUMINUM
