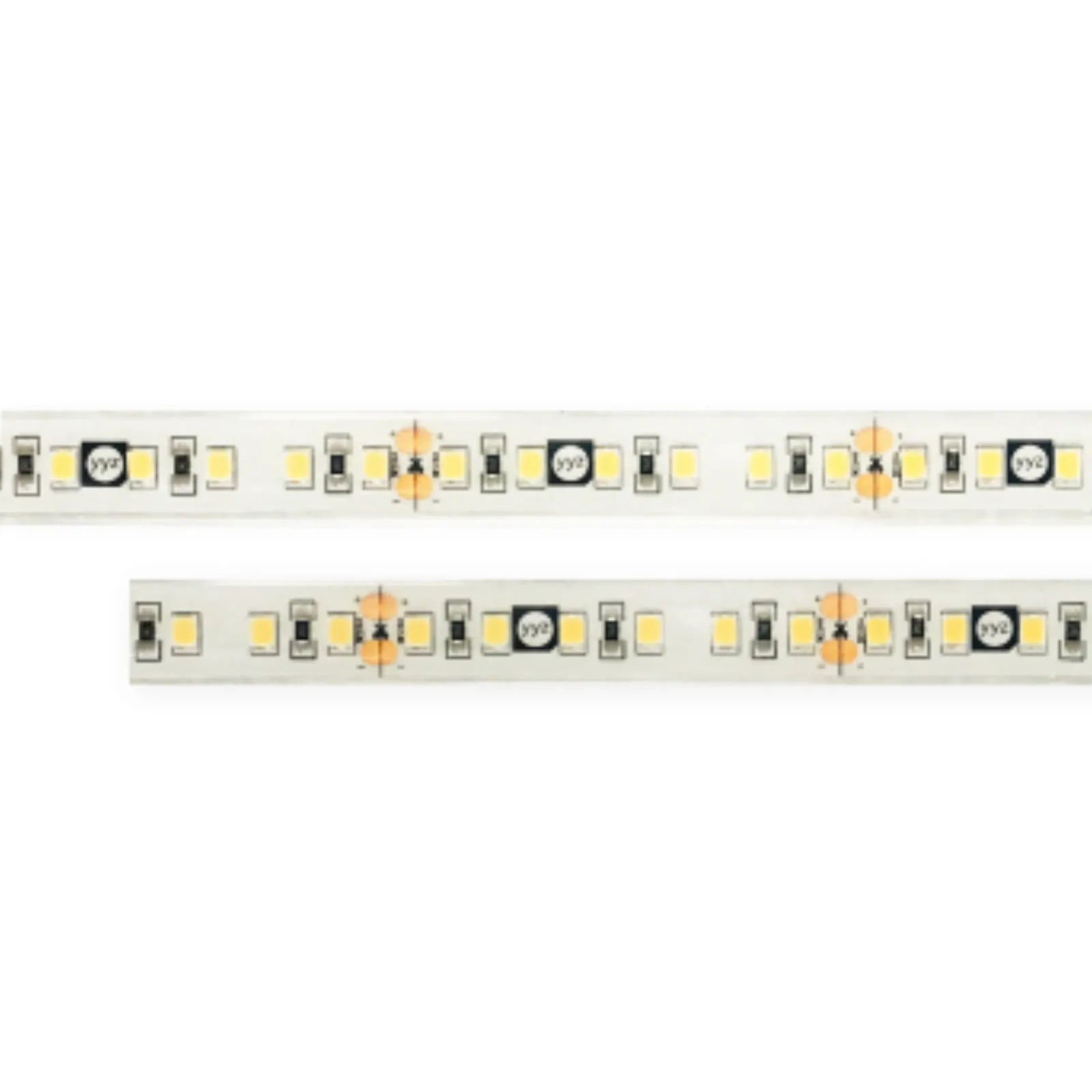

DELUXE SERIES - MONO

PIXL LFX IP67 series are flexible linear LED light strip is simple, effective solution for a wide range of lighting applications where crisp, single-color light is desired. These are mainly used in humid or wet environments which are perfect for illuminating any residential and commercial applications including bathrooms or kitchens, under cabinets and near showers or sinks.

Rated Power

9.6 W/mtr

Delivered Lumen

864 lm/mtr (2200K) 883 lm/mtr (2700K) 912 lm/mtr (3000K) 931 lm/mtr (3500K) 960 lm/mtr (4000K) 979 lm/mtr (5000K) 1008 lm/mtr (6000K) 340 lm/mtr (RED) 177 lm/mtr (BLUE) 932 lm/mtr (GREEN)

Led Color

2200/2700/3000/3500/4000/5000/6000 K, UNIQUE COLORS: (RED/GREEN/BLUE)

Cri

90

Beam Angle

120º

Ip Rating

IP67

Mounting

3M TAPE ON THE BACK

Dimensions

12.5mm X 5000mm X 4.8mm(PCB)

Body Finish

White PCB

Supply Voltage

24V DC

Connection

HARDWIRED TAILS

Driver / Power Supply Details

ON/OFF DALI

Notes

LEDs / 3.3FT : 120

Dimming

DALI

Lamp Life

30,000 hrs

Led Quantity

120 LEDs/mtr

Light Source

2835 LED

Rated Current

200 mA

Binning Tolerance

2250K-2475K (BIN:22B) / 2700K-2830K (BIN:WK2,WP2) / 2830K-3040K (BIN:WK3,WP3) 3900K-4258K (BIN:NK2,NP2) / 6000K-7034K (BIN:PK5,PK6)

Cutting Increments

Every 50mm / 6 LEDS
