outdoor· 8 models

LRW

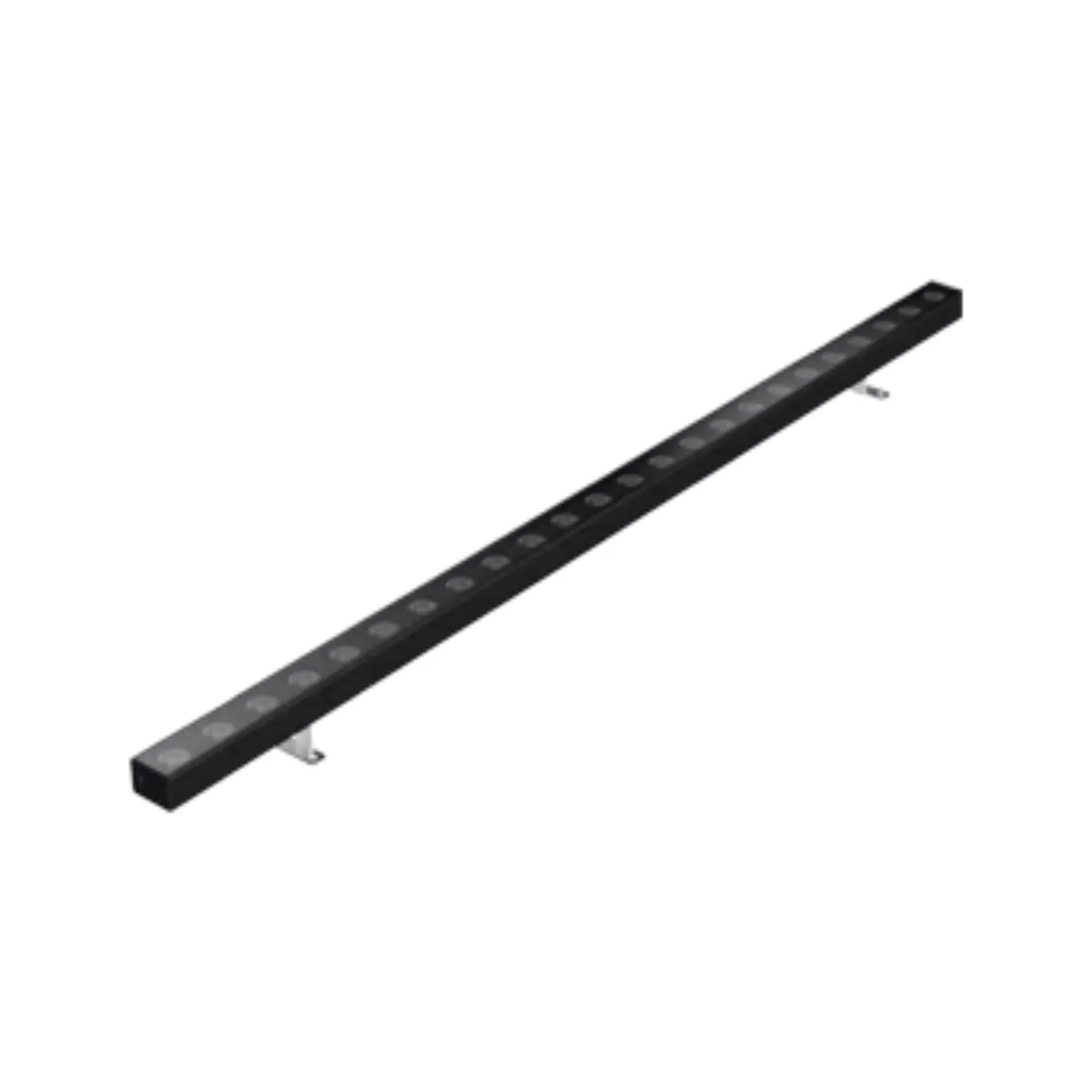

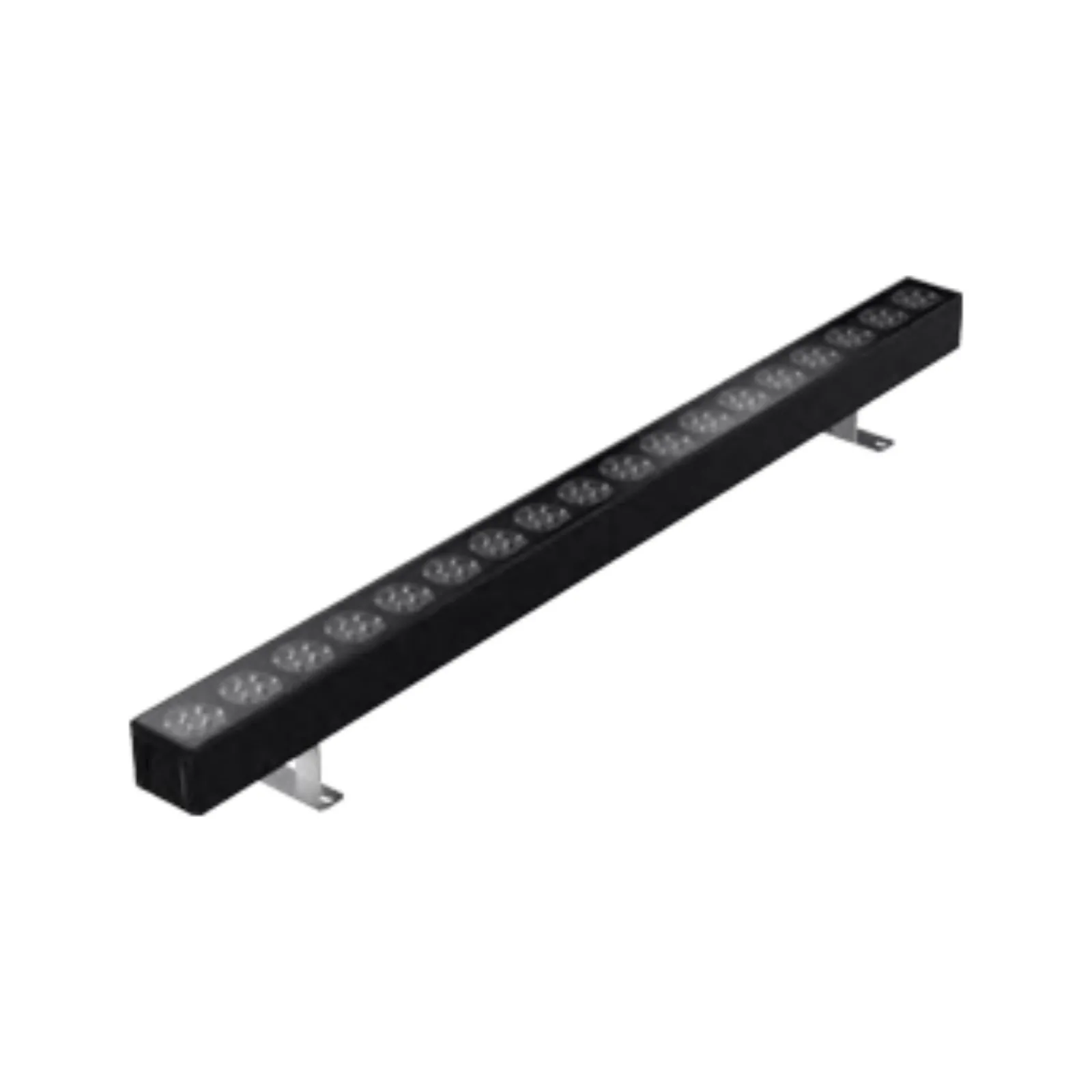

PIXL LRW is wall washer series linear light of new solution for large scale with high brightness architectural illumination. Its streamline design and aluminum profile along with adjustable brackets make it an elegant solution for wall washing and grazing applications. This IP66 rated modular system is available in 300mm, 500mm, or 1000mm lengths and can be customized as per project situations. Its integrated design of heat dissipating structure and degassing valve make it suitable for exterior architectural, retail and hospitality applications.

Type: outdoor
Models: 8
Power range: 11–60 W

Request a quote

Models (8)

Model	Power	Lumens	Dimensions
LRW 24-Mono	11W/mtr	45-52.5lm/W	1000(L) x 24.5(W) x 63.2(H)mm	Details
LRW 24-RGB/RGBW	11W/m / 14W/m	19-20.5lm/W @ RGB 23.4-24.3lm/W @ RGBW	1000(L) x 24.5(W) x 63.2(H)mm	Details
LRW 33-Mono	18W/mtr / 24W/mtr	100-111.2lm/W @ 18W 100-112.6lm/W @ 24W	1000(L) x 33(W) x 57.8(H)mm	Details
LRW 38-Mono	24W/mtr / 36W/mtr / 48W/mtr	92-109lm/W @ 24W 110.2-112.4lm/W @ 36W 66.5-87lm/W @ 48W	1000(L) x 38(W) x 57.2(H)mm	Details
LRW 38-RGB/RGBW	24W/mtr / 36W/mtr / 48W/mtr	32-32.5lm/W @ 24W-RGB 38-40.5lm/W @ 24W-RGBW 39-40.5lm/W @ 48W-RGBW	1000(L) x 38(W) x 57.2(H)mm	Details
LRW 65-5 IN 1	48W/mtr	58-60.5lm/W	1000(L) x 65(W) x16(H)mm	Details
LRW 65-7 IN 1	48W/mtr	62-68.9lm/W	1000(L) x 65(W) x16(H)mm	Details
LRW 65-Mono	60W/mtr	69.8-70.1lm/W	1000(L) x 65(W) x16(H)mm	Details
