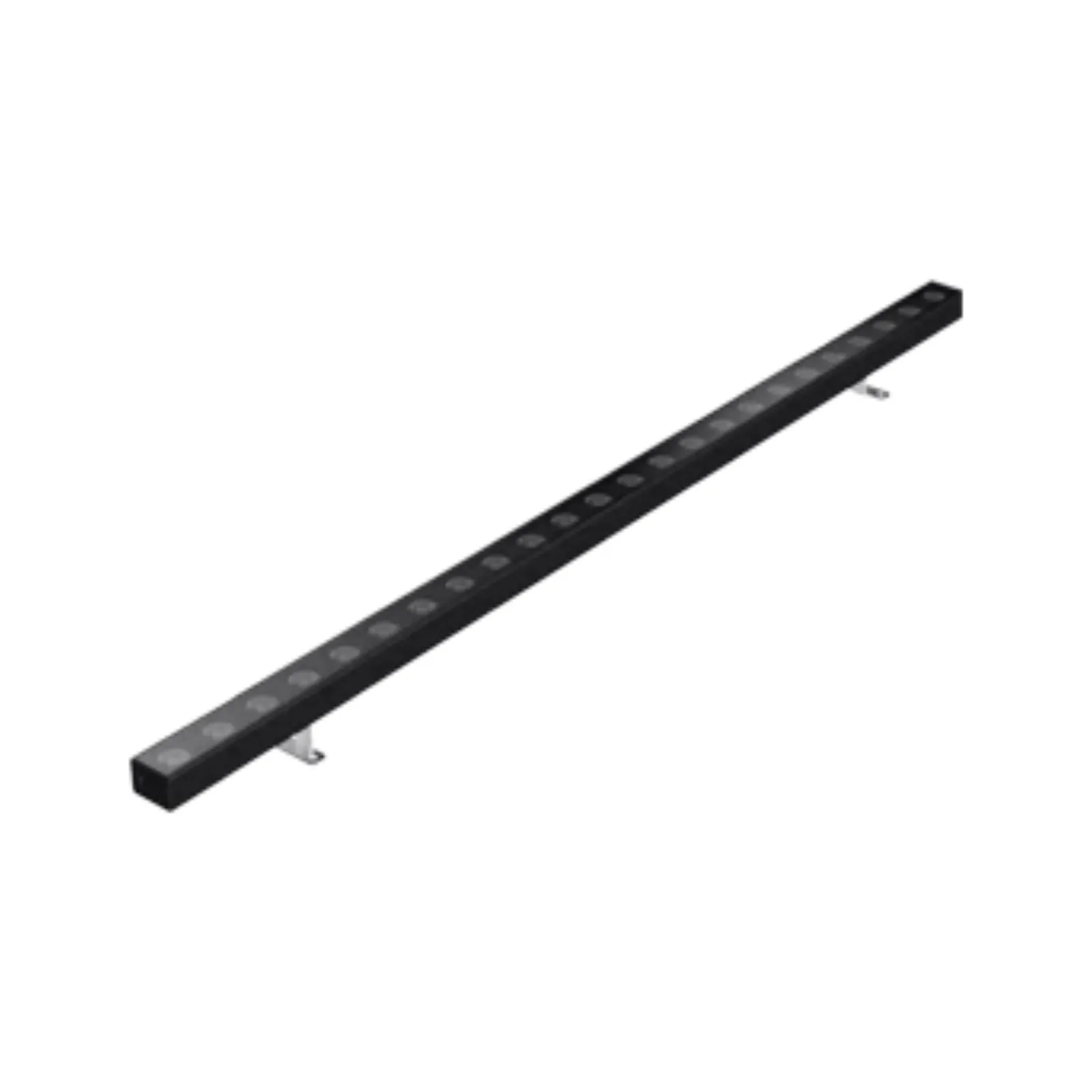

LRW 38-RGB/RGBW

PIXL LRW is wall washer series linear light of new solution for large scale with high brightness architectural illumination. Its streamline design and aluminum profile along with adjustable brackets make it an elegant solution for wall washing and grazing applications. This IP66 rated modular system is available in 300mm, 500mm, or 1000mm lengths and can be customized as per project situations. Its integrated design of heat dissipating structure and degassing valve make it suitable for exterior architectural, retail and hospitality applications.

Rated Power

24W/mtr / 36W/mtr / 48W/mtr

Delivered Lumen

32-32.5lm/W @ 24W-RGB 38-40.5lm/W @ 24W-RGBW 39-40.5lm/W @ 48W-RGBW

Led Color

RGB, RGBW

Beam Angle

7°/15°/30°/45°/60°/15°x60°/20°x40°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

1000(L) x 38(W) x 57.2(H)mm

Body Finish

BLACK, GREY, WHITE, GREEN

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

DMX512

Lamp Life

50,000 Hrs

Lens Options

PC

Light Source

CREE

Body Material

6063 ALUMINUM
