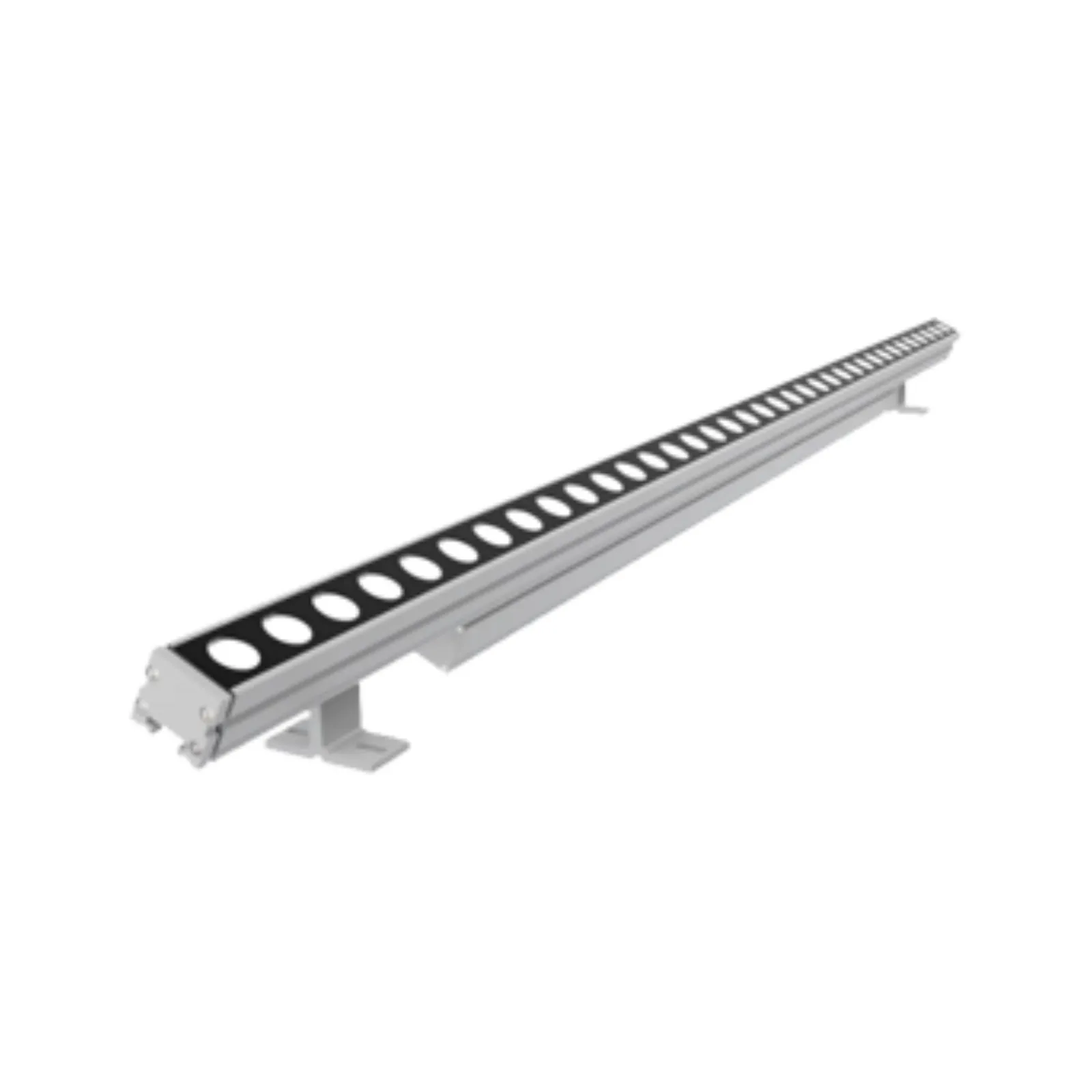

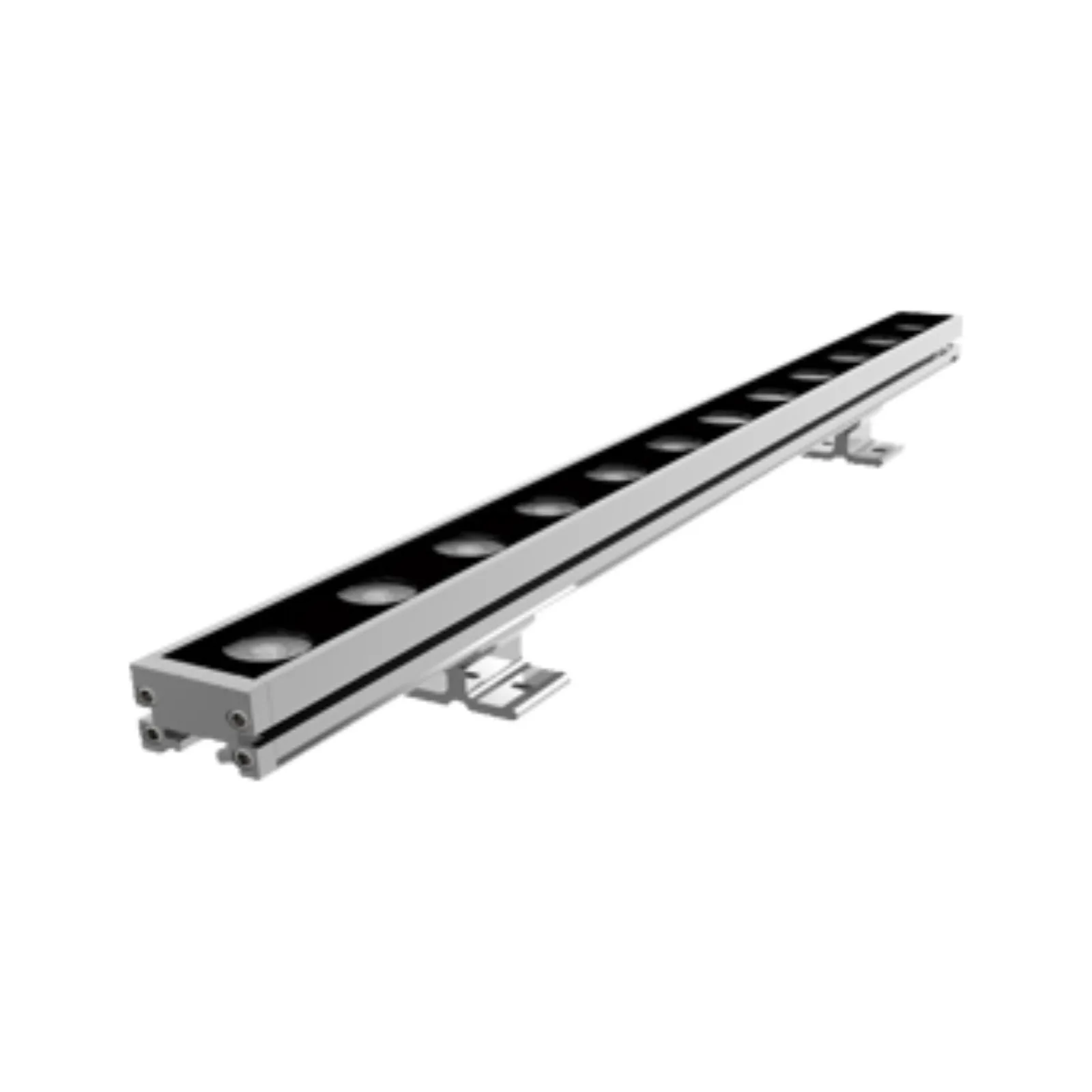

LWW MINI

PIXL LWW mini series linear light of new solution for large scale with high brightness architectural illumination. Its streamline design and aluminum profile along with adjustable brackets make it an elegant solution for wall washing and grazing applications. This IP66 rated modular system is available in 300mm, 500mm, or 1000mm lengths and can be customized as per project situations. Its integrated design of heat dissipating structure and degassing valve make it suitable for exterior architectural, retail and hospitality applications.

Rated Power

6 / 12 / 24 W

Delivered Lumen

100-110 lm/W @ 3500K

Led Color

2700/3000/3500/4000/5000/5700/6500K

Cri

90

Beam Angle

10°, 20°, 35°, 50°. 10x40°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

260, 500, 1000(L) x 36(B) x 33.8(H)

Body Finish

BLACK,WHITE,GREY

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF TRIAC 0-10V DALI

Dimming

NON-DIMMABLE,TRIAC,1-10V,DALI

Lamp Life

50,000 Hrs

Lens Options

PMMA

Light Source

CREE / NICHIA

Body Material

6063 HIGH DENSITY ALUMINUM
