outdoor· 7 models

LWW

PIXL Linear wall washer series linear light is new solution for large-scale. High-brightness architectural illumination. Streamline design with 6063 high aluminium alloy and easy installation. Integrated design of heat dissipating structure and professional degassing valve device. The modular system available in 304mm,598mm or 1183mm lengths and can be customized as per project situation, IP66 structural waterproof suitable for a wide range of wall grazing, linear and indirect illumination for exterior architectural, retail and hospitality applications.

Type: outdoor
Models: 7
Power range: 6–48 W

Request a quote

Models (7)

Model	Power	Lumens	Dimensions
LWW MINI	6 / 12 / 24 W	100-110 lm/W @ 3500K	260, 500, 1000(L) x 36(B) x 33.8(H)	Details
LWW MINI PLUS- Mono	9/18/27/36 W	1400 lm/mtr	410, 600, 900, 1200(L) x 35.8(B) x 62.7(H)	Details

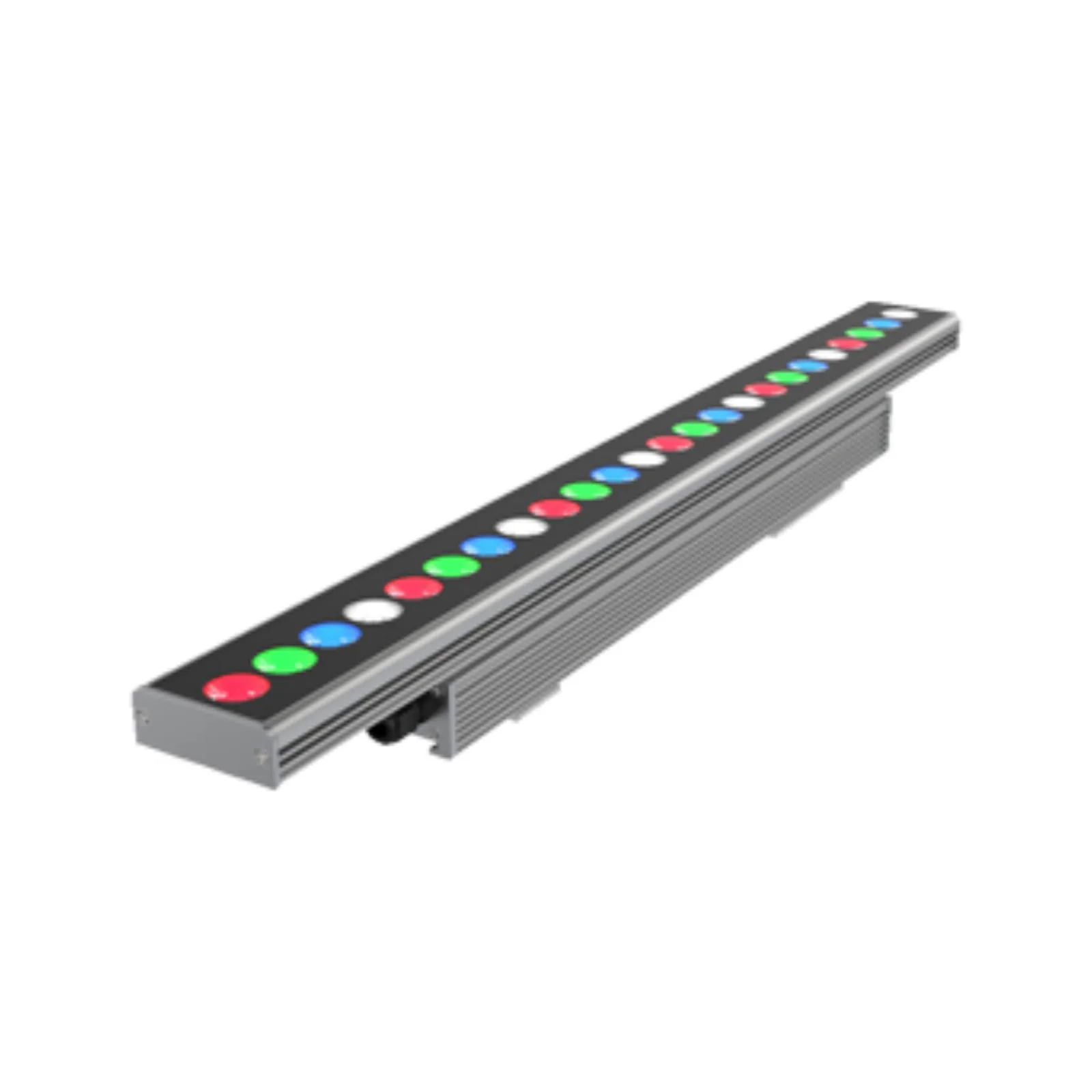

LWW MINI PLUS- RGB/RGBW/RGBA	9/18/27/36 W	1400 lm/mtr	410, 600, 900, 1200(L) x 35.8(B) x 62.7(H)	Details
LWW MINI PRO	9 / 18 /27 / 36W	800 lm/ft @ 3000K	300, 600, 900, 1200(L) x 35.8(B) x 62.7(H)	Details

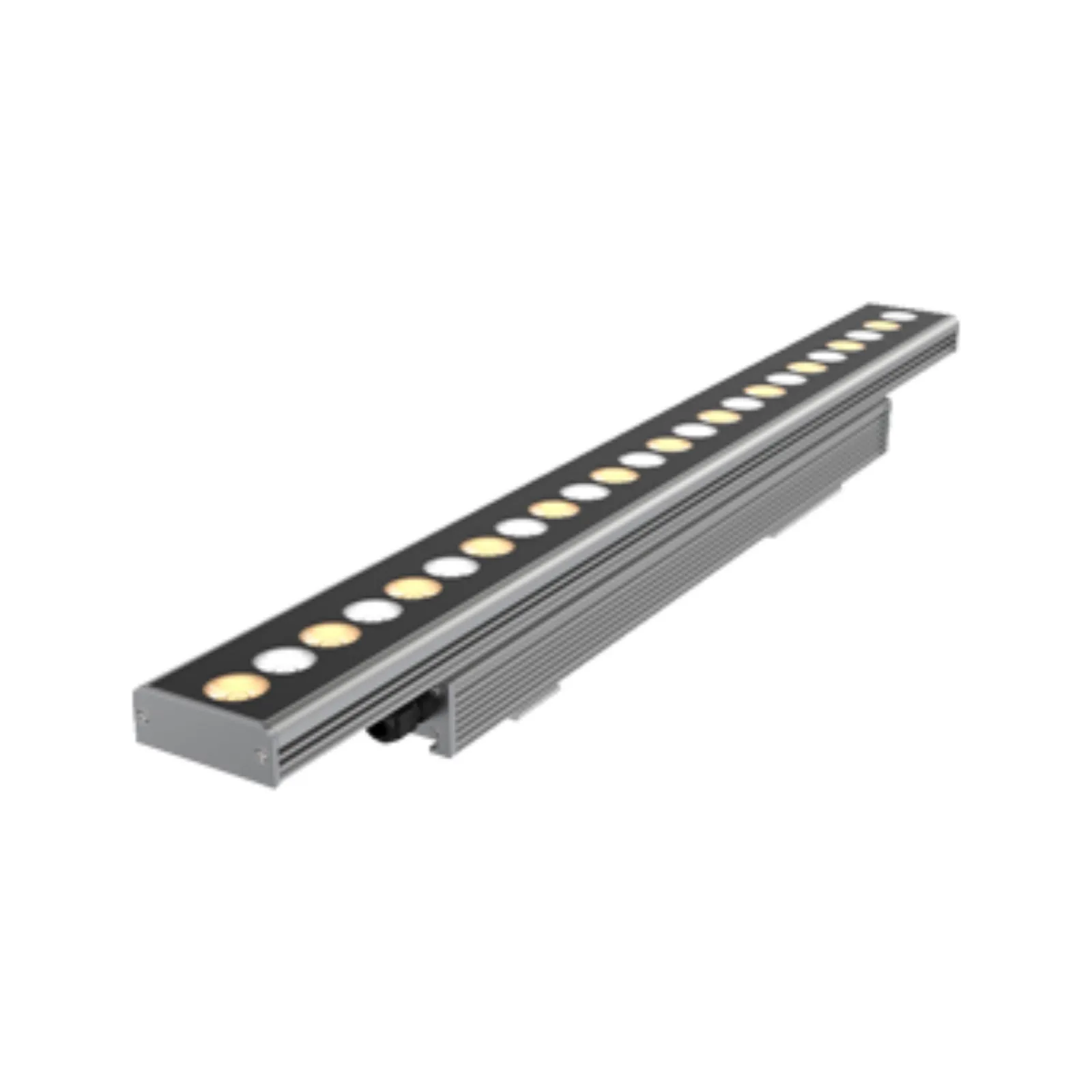

LWW PLUS - DWT	12 / 24 / 36 / 48 W	90-100 lm/W @ 3500K	304, 598, 898, 1183(L) x 60(B) x 61.5(H)	Details
LWW PLUS - MONO	12 / 24 / 36 / 48 W	90-100 lm/W @ 3500K	304, 598, 898, 1183(L) x 60(B) x 61.5(H)	Details
LWW PLUS- RGB/RGBW	12 / 24 / 36 / 48 W	90-100 lm/W @ 3500K	304, 598, 898, 1183(L) x 60(B) x 61.5(H)	Details
