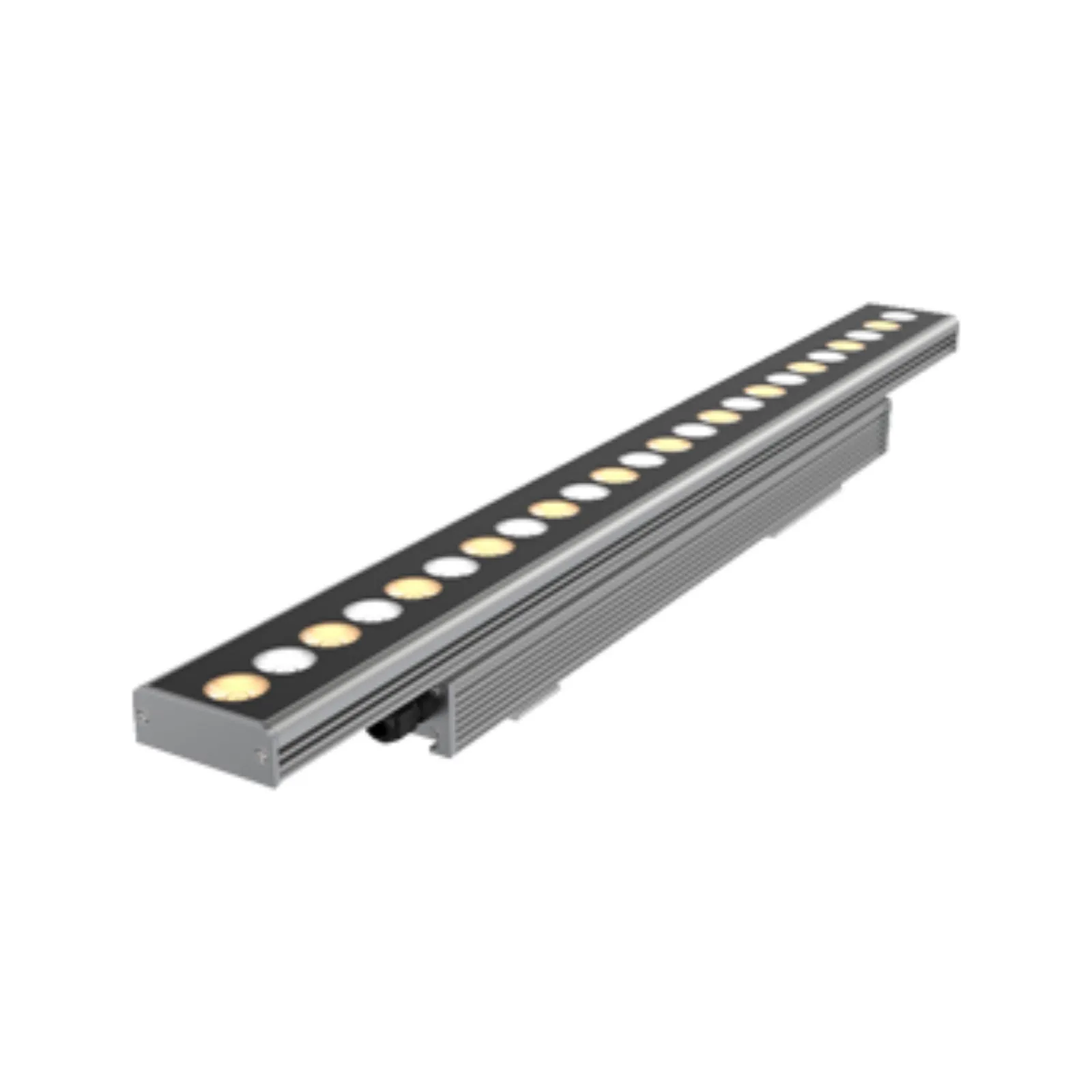

LWW PLUS - MONO

PIXL LWW Plus series is a new solution of large-scale high brightness architectural illumination like facade, bridge, retail and hospitality applications. This IP66 rated fixture is with AC line input, high performance linear luminaire for washing or grazing exterior facades. It is equipped with highbrightness LEDs, it offers impressive wall-washing and signage illumination. Available in multiple optic designs, this series can use a combination of color and beam angles to support a variety of architecture applications.

Rated Power

12 / 24 / 36 / 48 W

Delivered Lumen

90-100 lm/W @ 3500K

Led Color

2700/3000/3500/4000/5000/5700/6500K/RED/GREEN/BLUE

Cri

90+

Beam Angle

15°, 20°, 35°, 50°. 10x40°

Ip Rating

IP66

Mounting

SURFACE MOUNT

Dimensions

304, 598, 898, 1183(L) x 60(B) x 61.5(H)

Body Finish

BLACK,WHITE,GREY

Supply Voltage

100-277V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF TRIAC 0-10V DALI

Notes

AVAILABLE LENGTH : 304mm; 598mm; 891mm; 1183mm

Dimming

NON-DIMMABLE,TRIAC,1-10V,DALI

Lamp Life

50,000 Hrs

Lens Options

CLEAR TEMPERED GLASS

Light Source

CREE / NICHIA

Body Material

6063 HIGH DENSITY ALUMINUM
