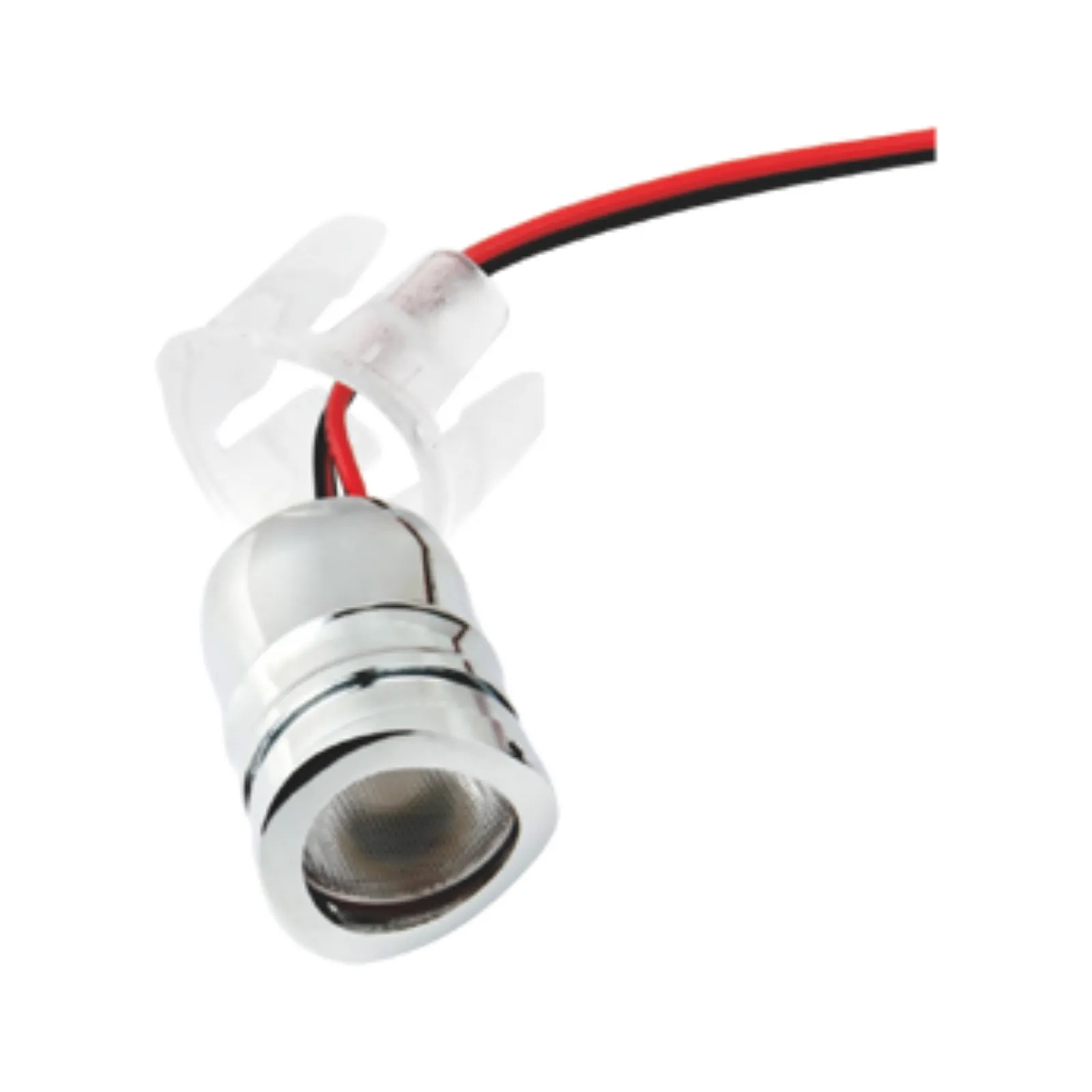

RAIL 2.5 Symmetrical

PIXL LED 2.5 symmetrical handrail serve the purpose of lighting up the staircase treads as well as give an aesthetic effect to the surroundings. It is made in stainless steel and aluminum which can be installed on an existing handrail system as well as indoor or outdoor. These are waterproof IP67 rated fixture which is available in different colors ranging from 2700-6000K.

Rated Power

1.5W

Delivered Lumen

73.3lm/W

Led Color

2500/2700/3000/4000/6000K

Cri

80+

Beam Angle

60°

Ip Rating

IP67

Mounting

HANDRAIL

Dimensions

Ø22.60 x 30.50mm

Supply Voltage

24V DC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF; 0-10V; Dimming

Lamp Life

50,000 Hrs

Light Source

PHILIPS / CREE

Body Material

STAINLESS STEEL AND ALUMINUM
