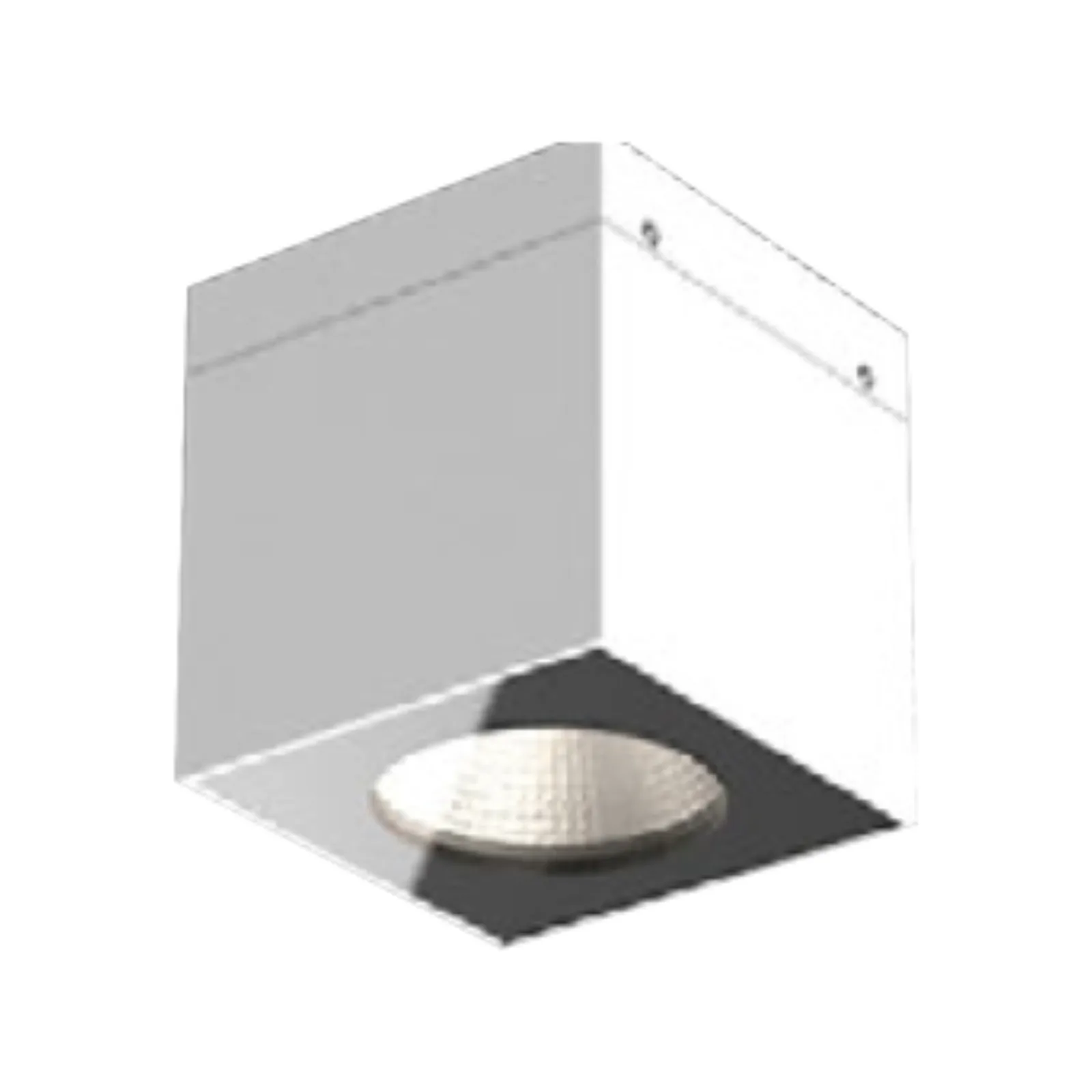

SVN-SQ-B

PIXL Savanna square is square surface mounted downlight which are very compact and shallow in design. The precise optics are available with different light distribution and hence allows the product to be used for various lighting application.

Rated Power

15W / 20W / 25W

Delivered Lumen

1150lm @10W 1549lm @20W 1900lm @ 25W

Led Color

3000/4000/5000K

Cri

80

Beam Angle

24°/36°

Ip Rating

IP65

Mounting

SURFACE MOUNT

Dimensions

100 x 100 x 105, 120, 135mm

Body Finish

WHITE, GREY, BLACK

Supply Voltage

100-240V AC

Driver / Power Supply Details

ON/OFF

Lamp Life

50,000 Hrs

Light Source

CREE

Body Material

Die-cast aluminium

Rated Current

350mA / 500mA / 600mA
