outdoor· 6 models

SAVANNA

PIXL Savanna is a surface mounted downlight which are very compact and shallow in design. The precise optics are available with different light distribution and hence allows the product to be used for various lighting application.

Type: outdoor
Models: 6
Power range: 10–30 W

Request a quote

Models (6)

Model	Power	Lumens	Dimensions

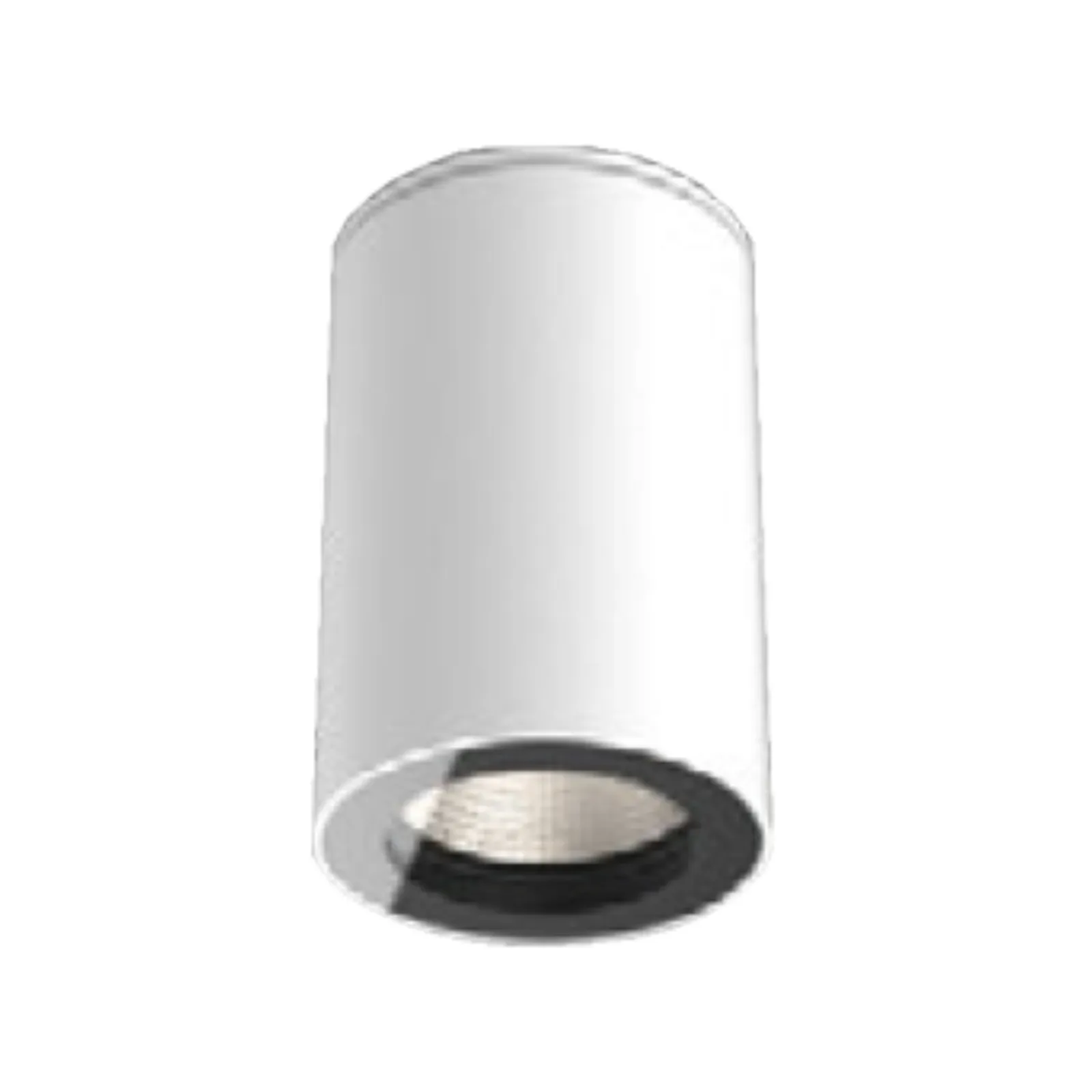

SVN-CY-A	10W	642lm @3000K 689lm @4000K	Ø68 x 110mm	Details
SVN-CY-B	15W / 20W	1150lm @10W 1549lm @20W	Ø90 x 120, 140mm	Details

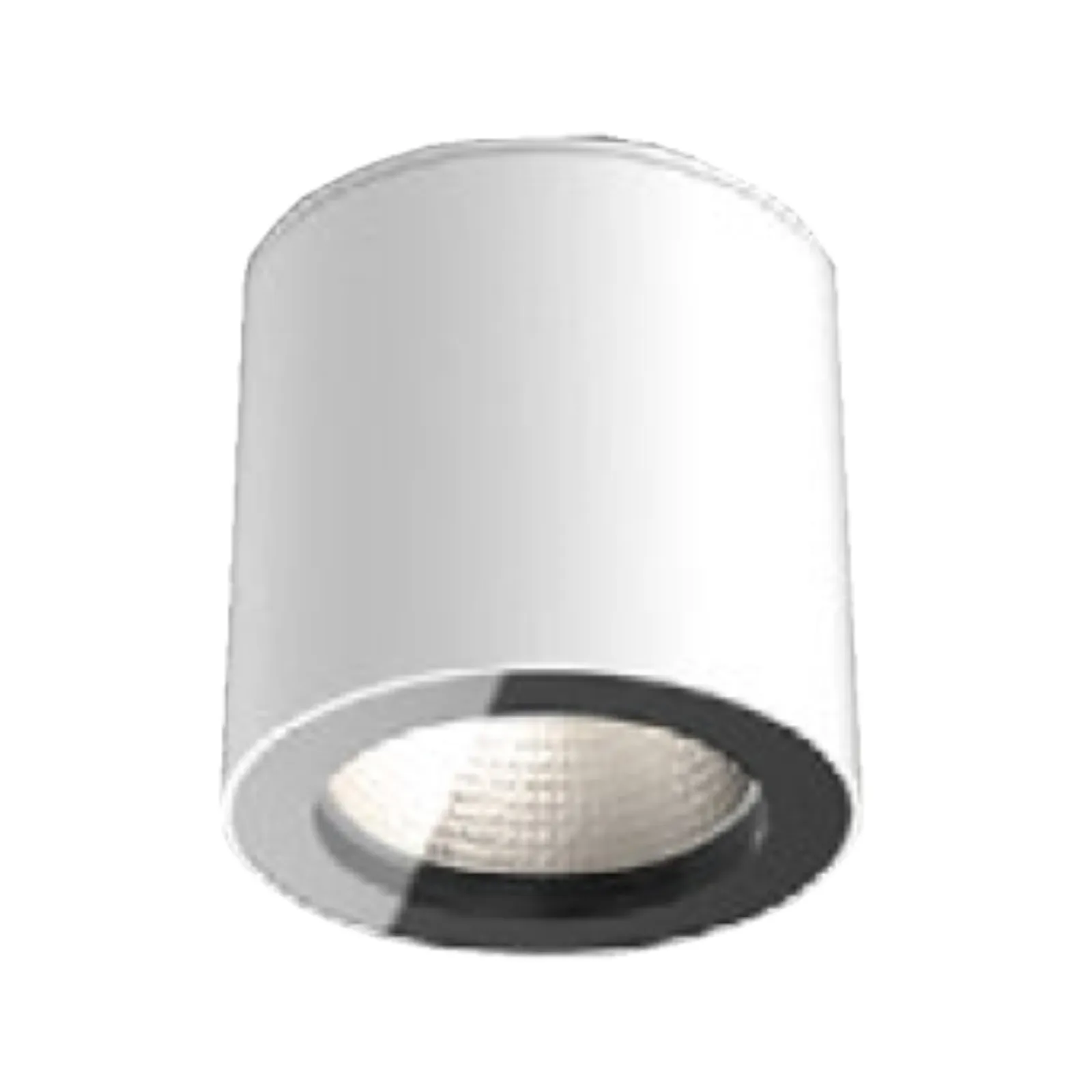

SVN-CY-C	20W / 25W	1537lm @20W 1900lm @25W	Ø120 x 130mm	Details

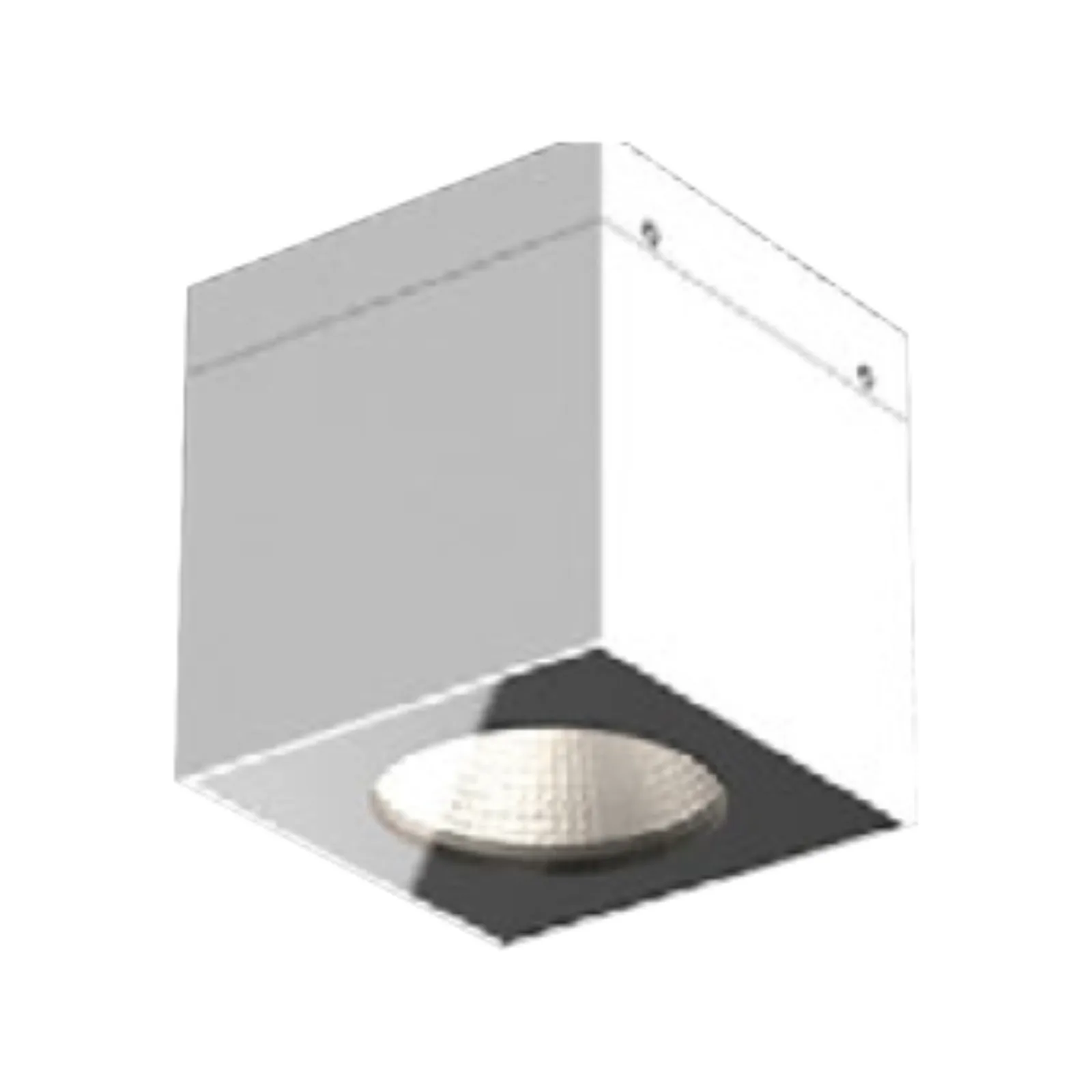

SVN-SQ-A	10W	642lm @3000K 689lm @4000K	80 x 80 x 105mm	Details

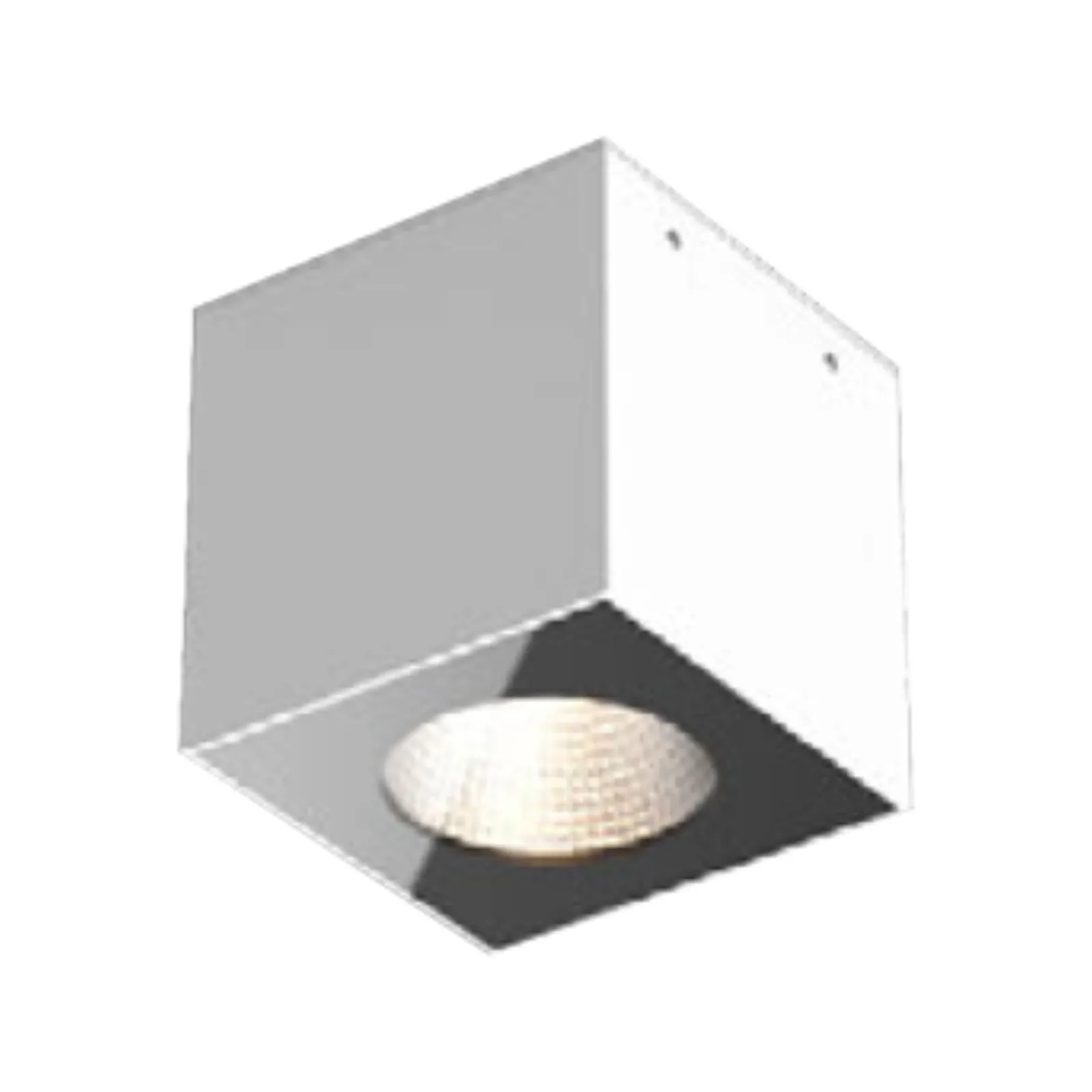

SVN-SQ-B	15W / 20W / 25W	1150lm @10W 1549lm @20W 1900lm @ 25W	100 x 100 x 105, 120, 135mm	Details

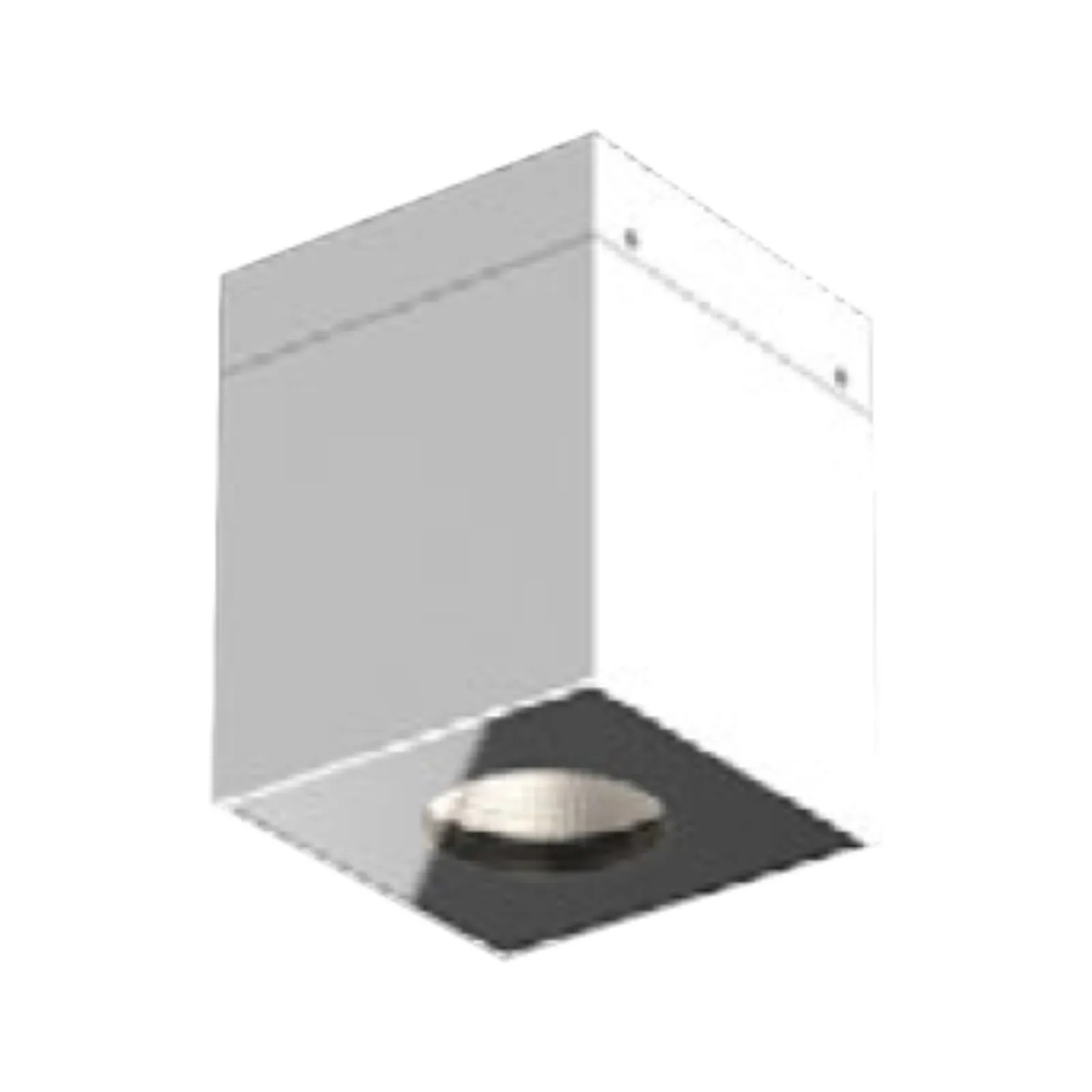

SVN-SQ-H	14 / 28 / 30W	102lm/W	150x150x160mm	Details
