SVN-SQ-H

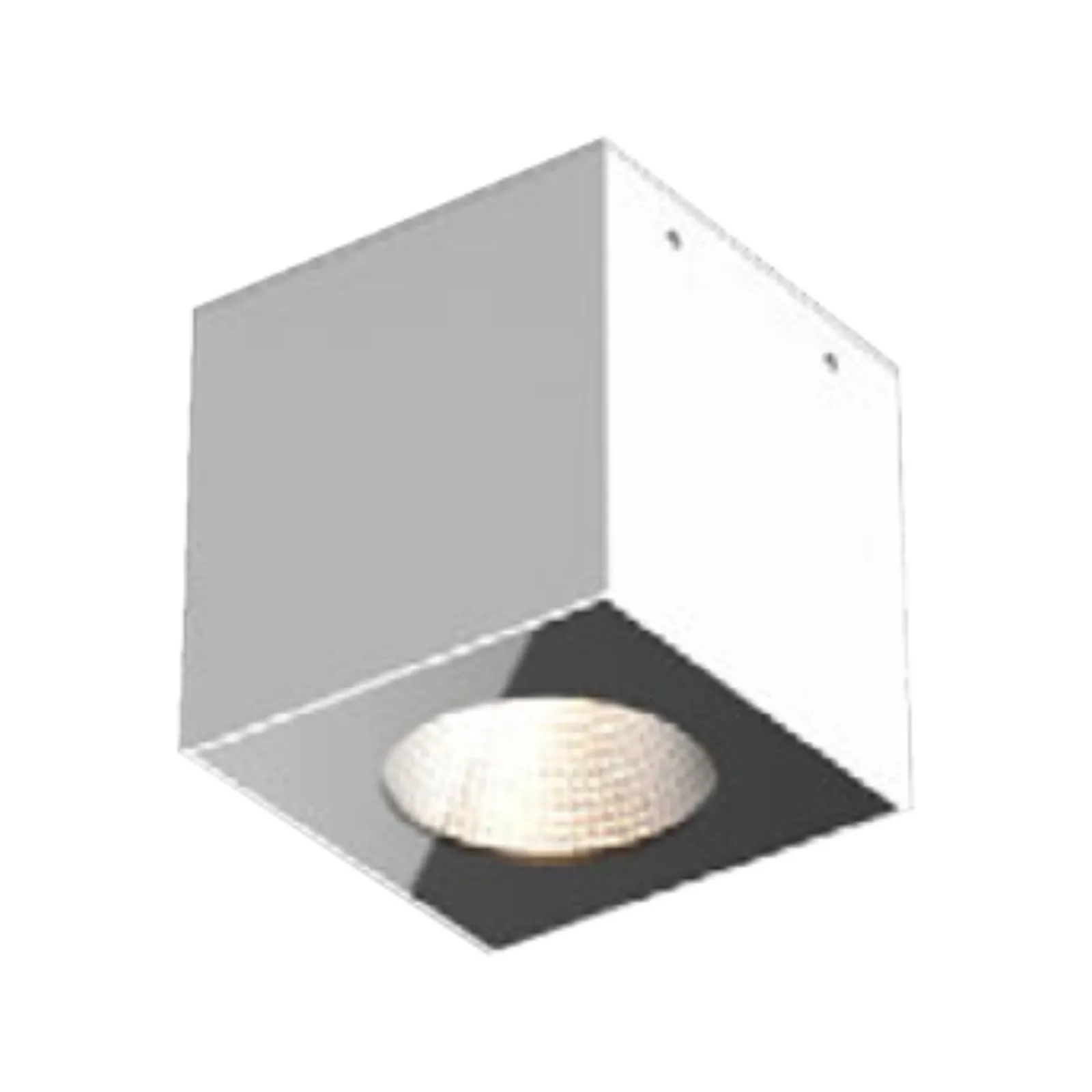

PIXL Savanna square is square surface mounted high output downlight which are very compact and shallow in design. The precise optics are available with different light distribution and hence allows the product to be used for various lighting application.

Rated Power

14 / 28 / 30W

Delivered Lumen

102lm/W

Led Color

3000/4000/5000K

Cri

80

Beam Angle

24°/36°/48°/60°

Ip Rating

IP65

Mounting

SURFACE MOUNTED

Dimensions

150x150x160mm

Body Finish

WHITE, BLACK, GREY

Supply Voltage

100-240V AC

Connection

OUTDOOR RATED CONNECTIONS

Driver / Power Supply Details

ON/OFF

Lamp Life

L90, B10, 50, 000 hrs

Light Source

CREE

Body Material

DIE-CAST ALUMINUM

Rated Current

700mA
